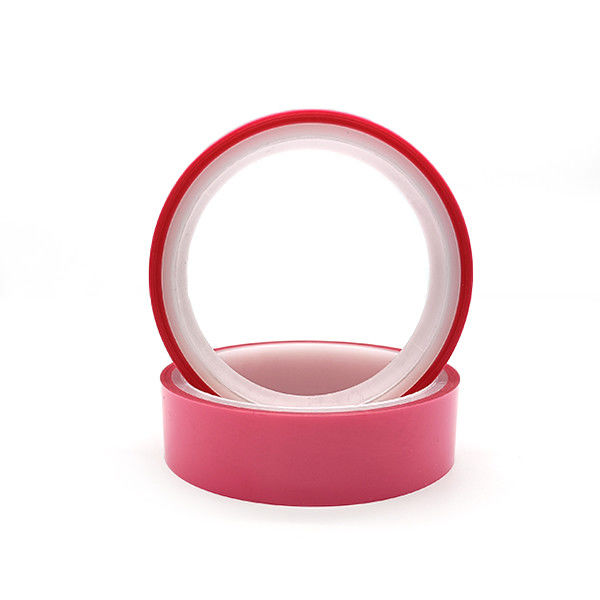

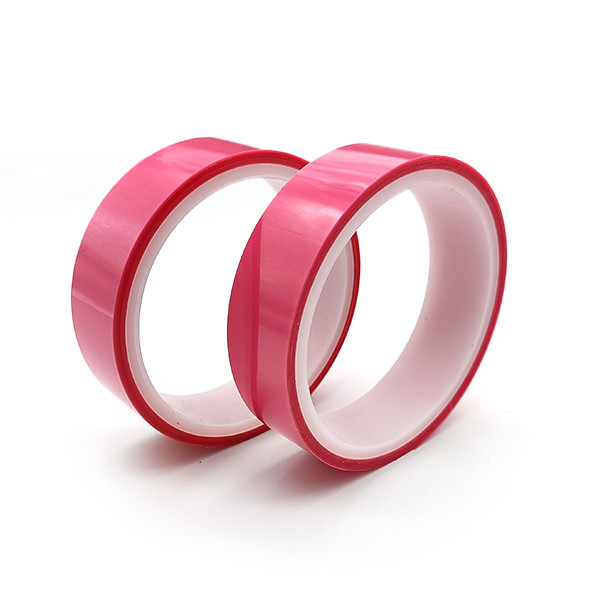

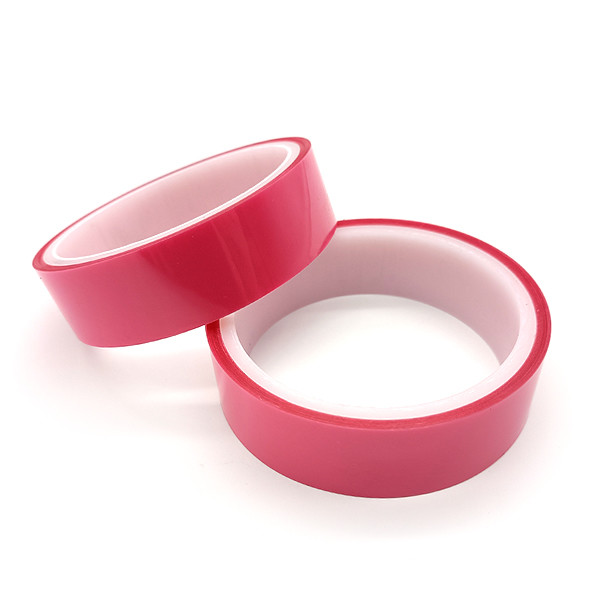

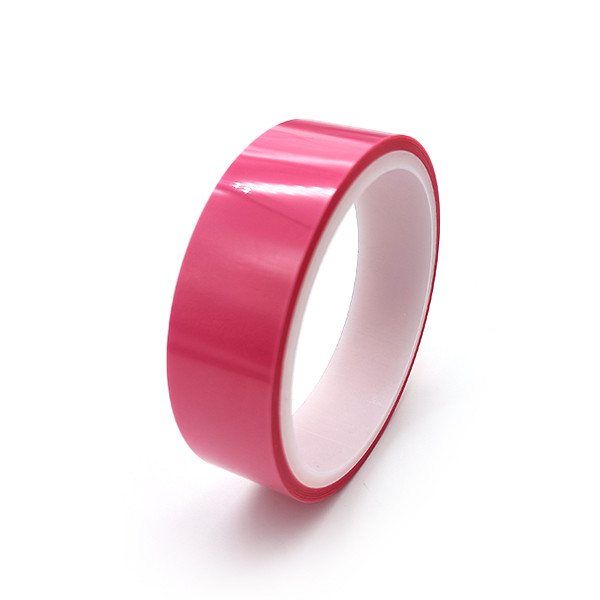

Thermal Release Heat Conductive Tape polyester film 0.075mm ODM

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: TS630C

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: For samples 1-3 days and for mass order depends on your QTY.

Payment Terms: L/C, T/T

Supply Ability: 50000 rolls per month

Get Best Price
Contact Now
Specifications
Highlight:

ODM Heat Conductive Tape

,

0.075mm Heat Conductive Tape

,

ODM heat sink adhesive tape

Product Name:
TS630C
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
Before Heating: 1-2N/25mm; After Heating: 0 N/25mm (135-150℃ * 5-15mins)
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
Product Name:
TS630C
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
Before Heating: 1-2N/25mm; After Heating: 0 N/25mm (135-150℃ * 5-15mins)
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
Description
Thermal Release Heat Conductive Tape polyester film 0.075mm ODM

khjkhj emailkhj workshop

Thermal Release Heat Conductive Tape Polyester Film 0.075mm ODM



Thermal release tape TS630C adhesive strength becomes almost “Zero” by heating



TS630A is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(135-150℃).



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Heat Sink Adhesive Tape Properties:

Item Typical Value
    Metric
Backing 0.075mm
Total Thickness 0.135±0.005mm
Tack   ≥12(J.DOW/#)
Adhesion Before heating 1-2N/25mm
  After heating   0
Tensile Strength ≥3.5(KN/M)
Elongation ≥45%



Construction:

Thermal Release Heat Conductive Tape polyester film 0.075mm ODM 3



Application:

TS630C is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.

Thermal Release Heat Conductive Tape polyester film 0.075mm ODM 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
