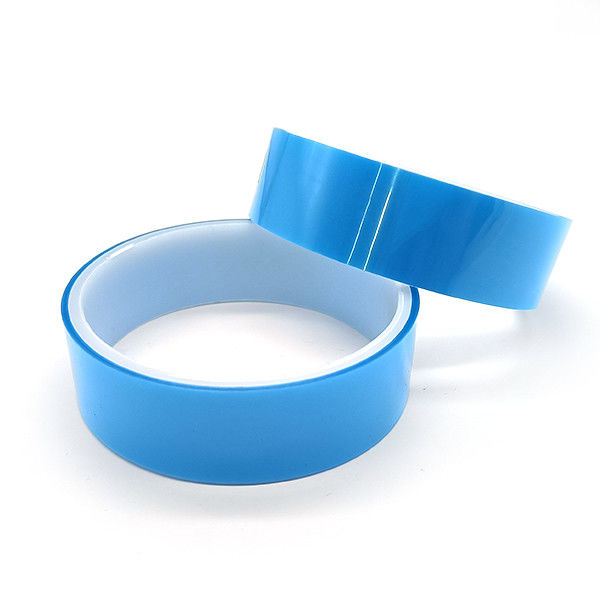

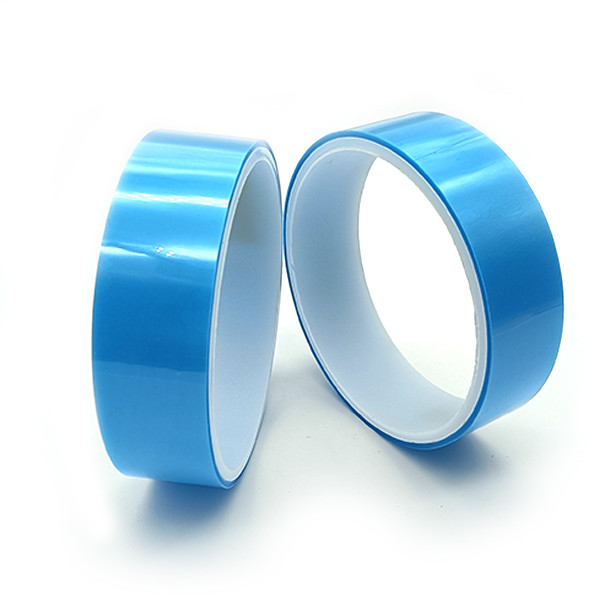

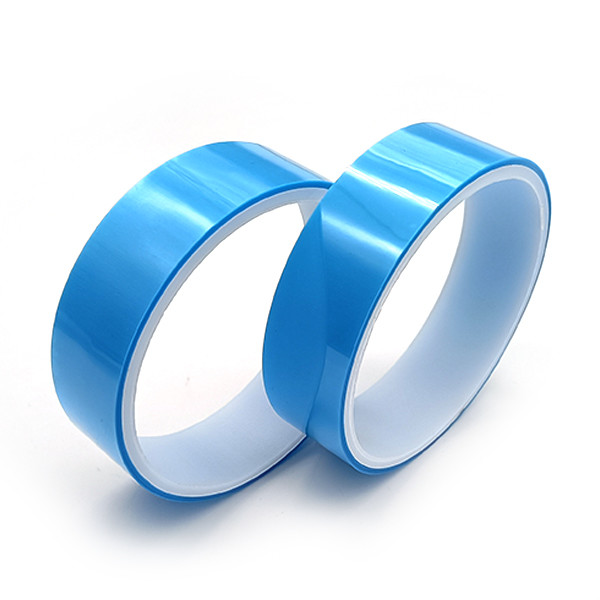

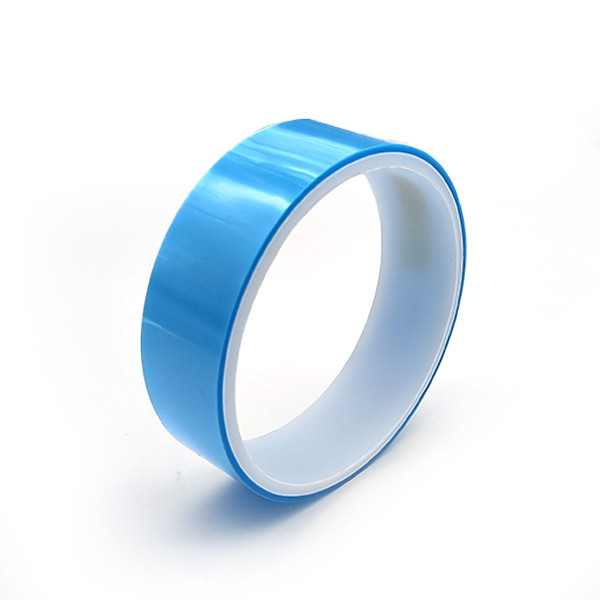

Conductive Thermal Release Tape Adhesive Single Sided Coated PET Liner

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: TS630HV

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: For samples 1-3 days and for mass order depends on your QTY.

Payment Terms: L/C, T/T

Supply Ability: 50000 rolls per month

Get Best Price
Contact Now
Specifications
Highlight:

Conductive Thermal Release Tape

,

RoHS PET Thermal Release Tape

,

0.075mm thermal conductive tape

Product Name:
TS630HV
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
≥25N/25mm; After Heating: 0 N/25mm (145℃ * 15mins)
Tensile Strength At Break:
≥105KN/M
Elongation At Break:
≥120%
Product Name:
TS630HV
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
≥25N/25mm; After Heating: 0 N/25mm (145℃ * 15mins)
Tensile Strength At Break:
≥105KN/M
Elongation At Break:
≥120%
Description
Conductive Thermal Release Tape Adhesive Single Sided Coated PET Liner

khjkhj emailkhj workshop

Conductive Thermal Release Tape Adhesive Single Sided Coated PET Liner



Thermally conductive tape TS630HV with higher initial adhesion for temporarily fixing process



TS630HV is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(145℃).



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Properties:

Item Typical Value Test Method
    Metric
Backing 0.075mm /
Total Thickness 0.135±0.005mm /
Tack   ≥12(J.DOW/#) /
Adhesion Before heating ≥25N/25mm



GBT 2792-2014

  After heating   0
Tensile Strength ≥105(KN/M) GBT 30776-2014
Elongation ≥120% GBT 30776-2014



Construction:

Conductive Thermal Release Tape Adhesive Single Sided Coated PET Liner 3



Application:

TS630HV is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
