Product Details
Place of Origin: China
Brand Name: KHJ
Certification: CE、ROHS、ISO9001
Model Number: E1-F901K
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day
Product Name: |
E1-F901K |
Total Tape Thickness: |
0.053±0.005mm |
Adhesion To Steel: |
12N/25mm |
Color: |
Bright Black |
Elongation At Break: |
<100V |
Holding Power: |
>100h |
Product Name: |
E1-F901K |
Total Tape Thickness: |
0.053±0.005mm |
Adhesion To Steel: |
12N/25mm |
Color: |
Bright Black |
Elongation At Break: |
<100V |
Holding Power: |
>100h |

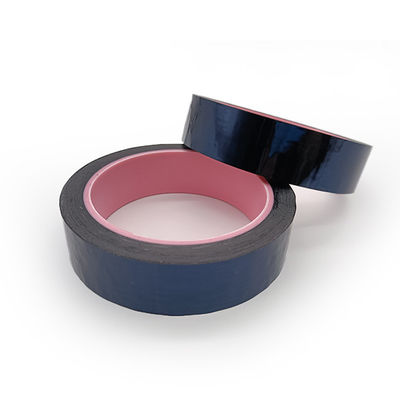

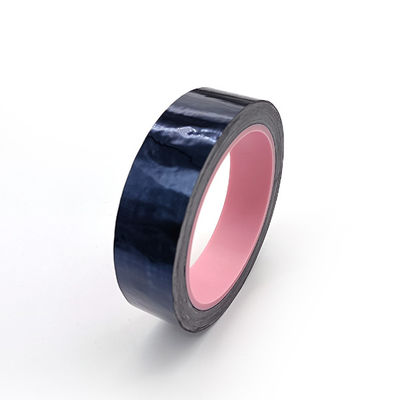

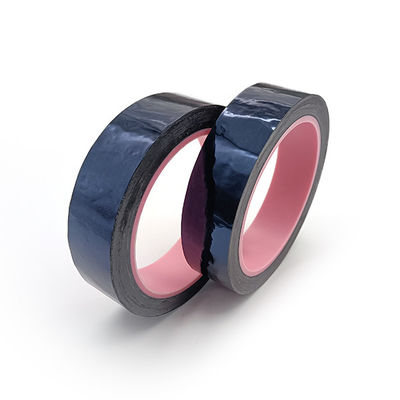

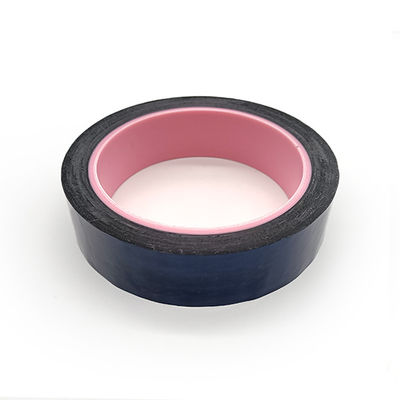

Bright Black Acrylic Adhesive Tape 2.12mil Esd Packaging Tape
Bright black tape coated with acrylic pressure sensitive adhesive tape E1-F901K
E1-F901K is a bright black tape coated with acrylic pressure sensitive adhesive on PET surface. It has good adhesion and low unwinding voltage. It is suitable for environments with high anti-static level requirements.
Features And Benefits:
1. Strong adhesion, no residual glue after removal.
2. Excellent anti-static performance.
3. Low unwinding voltage.
4. Excellent tensile properties.
Properties:
| Item Acrylic Adhesive Tape | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.12±0.2mil | 0.053±0.005mm |
| Adhesion to Steel | ≥2.74lbs/in | ≥12N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
| Surface Resistance | 106~8ohms | 106~8ohms |
| Static Discharge (Removal from roll) | <100V | <100V |
| Holding Power | >100h | >100h |
Esd Packaging Tape Construction:
Application:
The product can be applied to various environments with anti-static.Requirements such as fixing, connecting and packaging of electronic manufacturing .It can also be used as temporary bonding.
Storage:
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
