High Tensile Strength Heat Resistant Double Sided Tape 0.2mm glass fiber cloth base

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: KDL201

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: For samples 1-3 days and for mass order depends on your QTY.

Payment Terms: L/C, T/T

Supply Ability: 50000 rolls per month

Get Best Price
Contact Now
Specifications
Highlight:

0.2mm Heat Resistant Double Sided Tape

,

ODM Heat Resistant Double Sided Tape

,

0.2mm glass fiber tape

Product Name:
KDL201
Tensile Breaking Strength:
≥12 (KN/M)
Adhesion To Steel:
≥7N/25mm
Elongation At Break:
≥5%
Temperature Resistance:
260℃
Total Tape Thickness:
0.20±0.005mm
Product Name:
KDL201
Tensile Breaking Strength:
≥12 (KN/M)
Adhesion To Steel:
≥7N/25mm
Elongation At Break:
≥5%
Temperature Resistance:
260℃
Total Tape Thickness:
0.20±0.005mm
Description

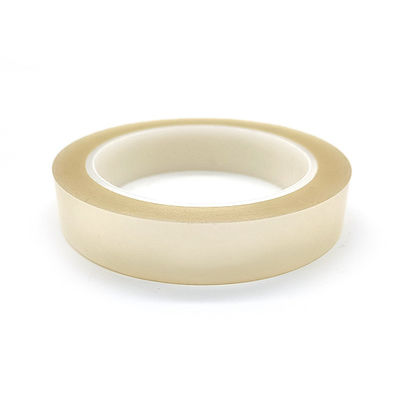

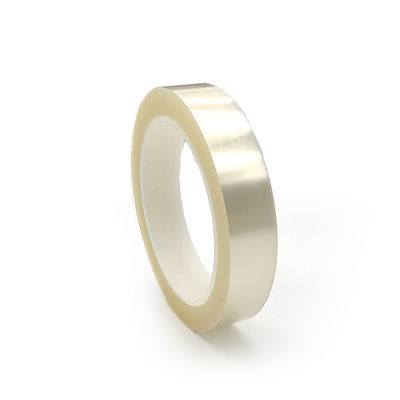

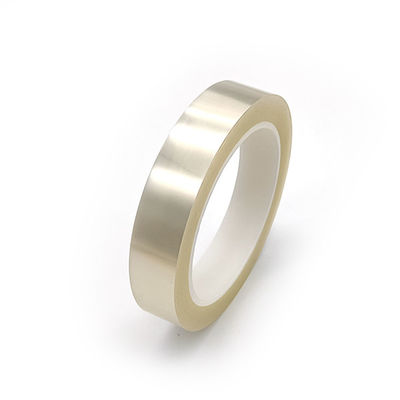

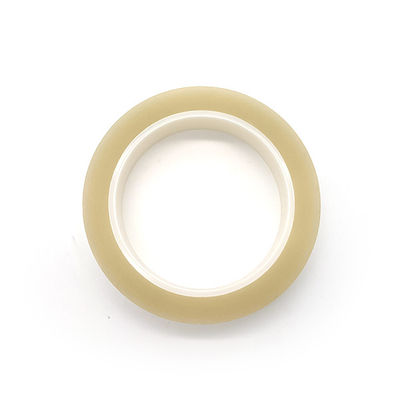

High Tensile Strength Heat Resistant Double Sided Tape 0.2mm glass fiber cloth base



High Tensile Strength Heat Resistant Double Sided Tape 0.2mm Glass Fiber Cloth Base



Heat resistant double sided tape KDL201 with high tensile strength



KDL201 is a high temperature resistant glass fiber cloth base material tape, high tensile strength, not easy to break, strong adhesive strength, good temperature resistance.



Features And Benefits:

1. Excellent bonding properties.

2. Maintain viscosity under high temperature.

3. High temperature resistance.



Application:

It is mainly used for H class heat-resistant insulation bundling, high temperature sandblasting protection, lithium manganese battery insulation packing and other high strength insulation protection.



Properties:

Item Typical Value Test Method
    Metric
Backing Thickness 0.13±0.005 mm /
Total Tape Thickness 0.20±0.005mm /
Temperature Resistance 260℃ /
Adhesion to Steel 7N/25mm GBT 2792-2014
Tensile Breaking strength ≥12 (KN/M) GBT 30776-2014
Elongation at break ≥5% GBT 30776-2014



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
