Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: KA100P
Payment & Shipping Terms
Minimum Order Quantity: One set
Price: Negotiable
Payment Terms: L/C, T/T
Product Name: |
KA100P |
Control Mode: |
Automatic Reset Button |
Winding Device: |
One Set（left Side） |
Carrier Tape Reel: |
7inches、13inches、15inches |
Battery Capacity: |
22Ah |
Battery Voltage: |
48V |
Charging Voltage: |
110V - 220V |
Charge Time: |
8H |
Product Name: |
KA100P |
Control Mode: |
Automatic Reset Button |
Winding Device: |
One Set（left Side） |
Carrier Tape Reel: |
7inches、13inches、15inches |
Battery Capacity: |
22Ah |
Battery Voltage: |
48V |
Charging Voltage: |
110V - 220V |
Charge Time: |
8H |

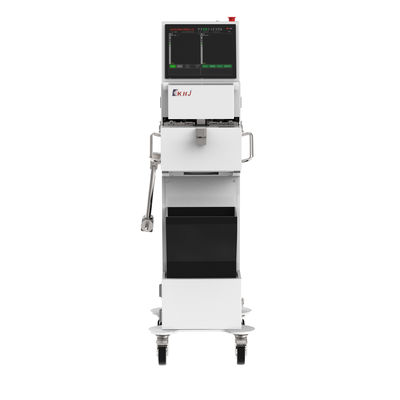

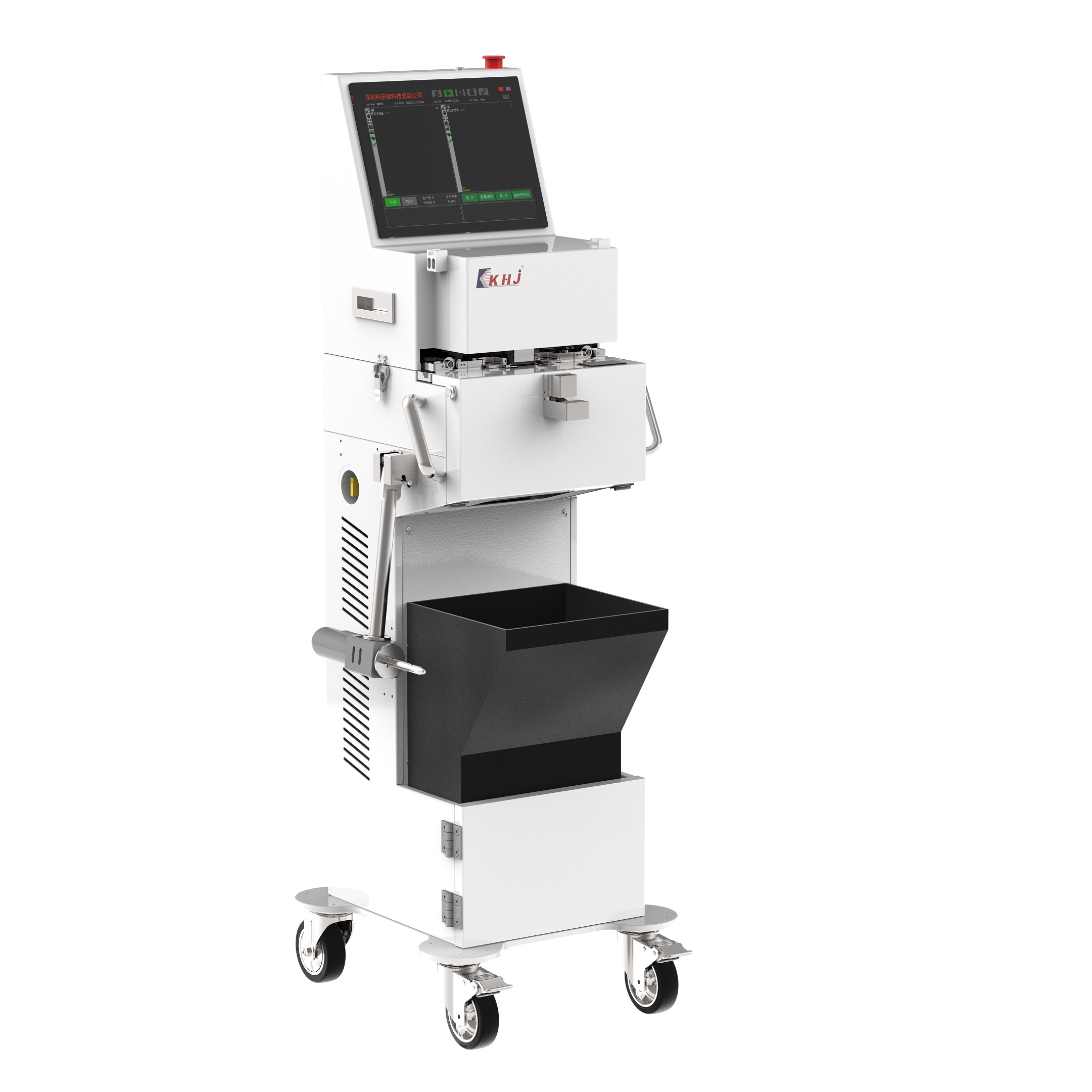

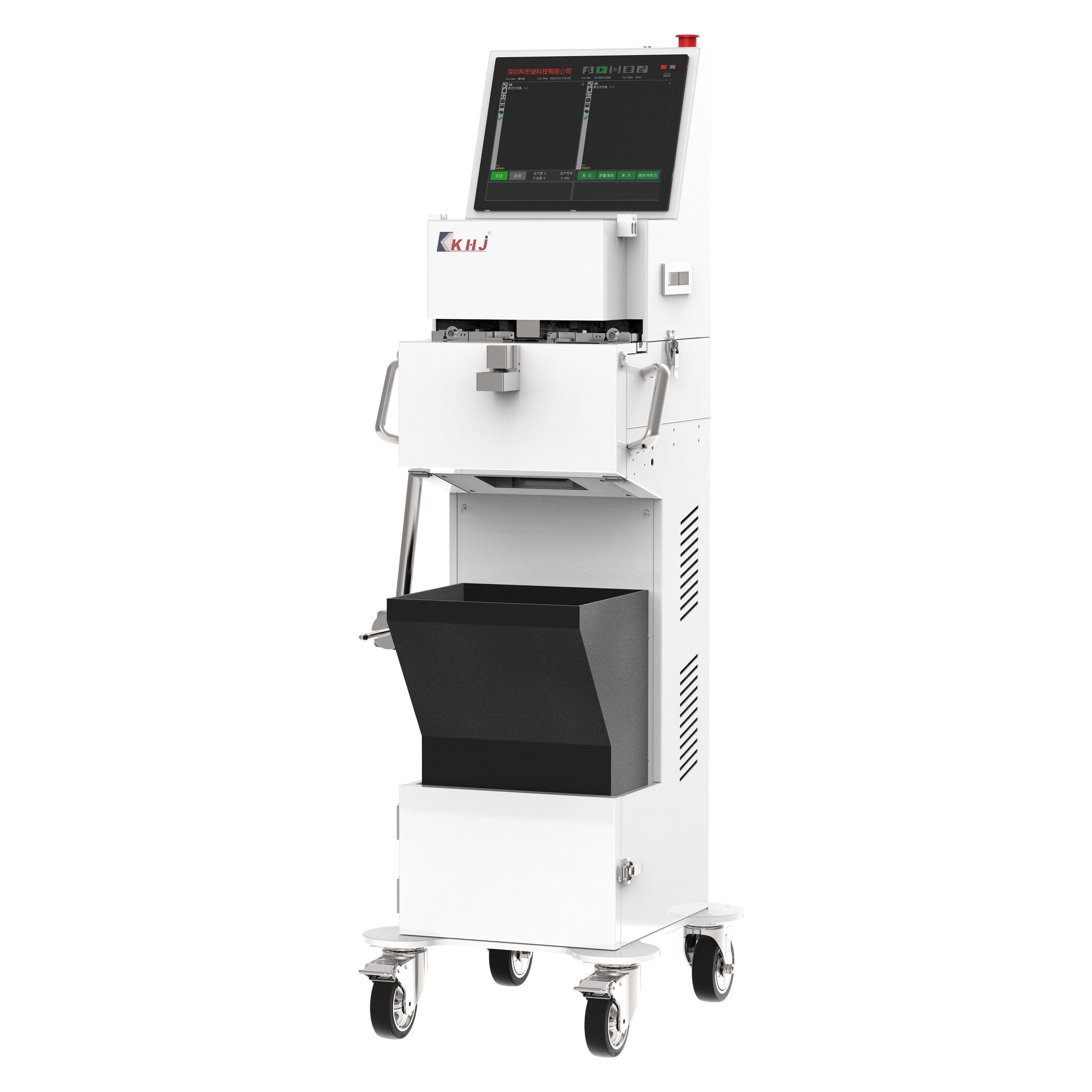

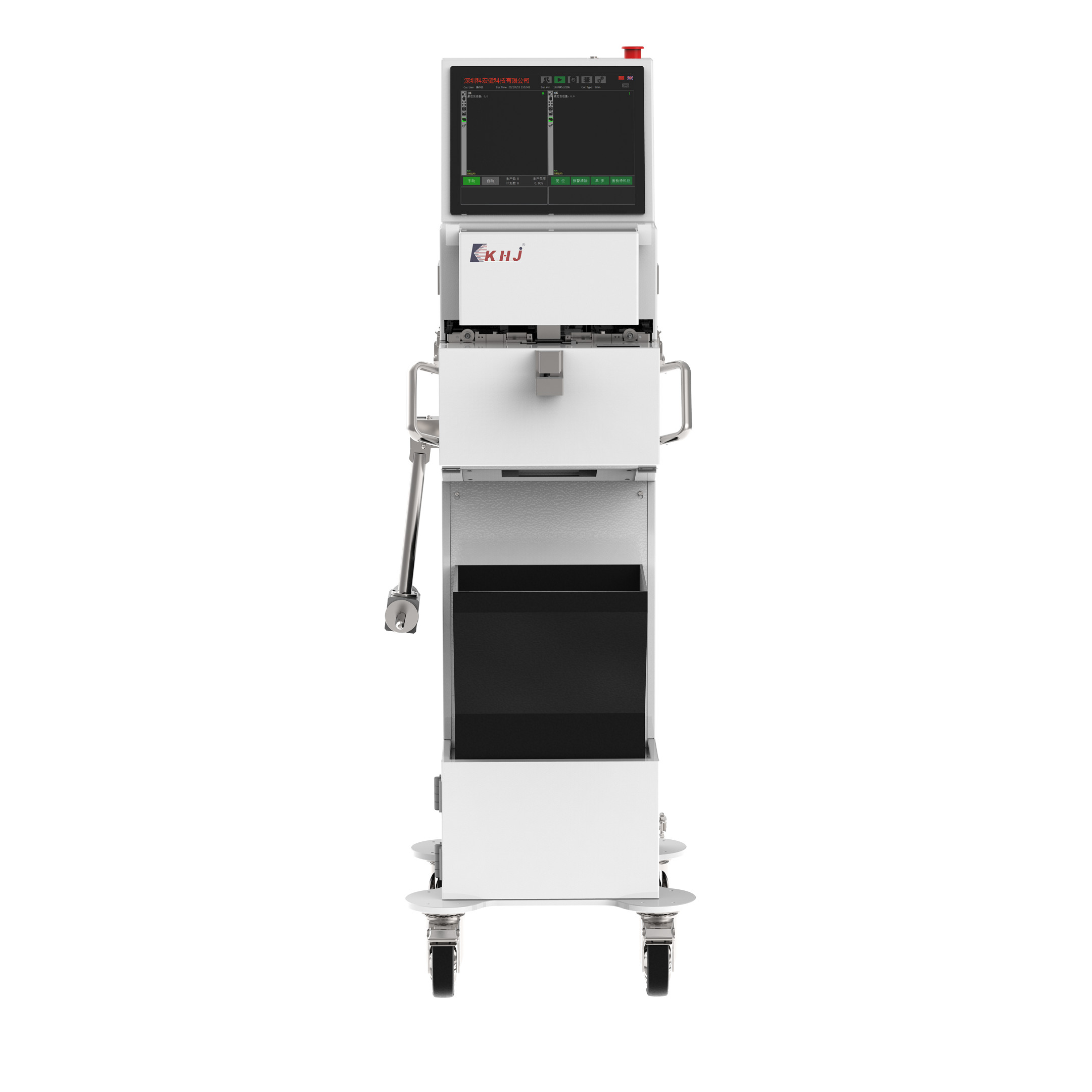

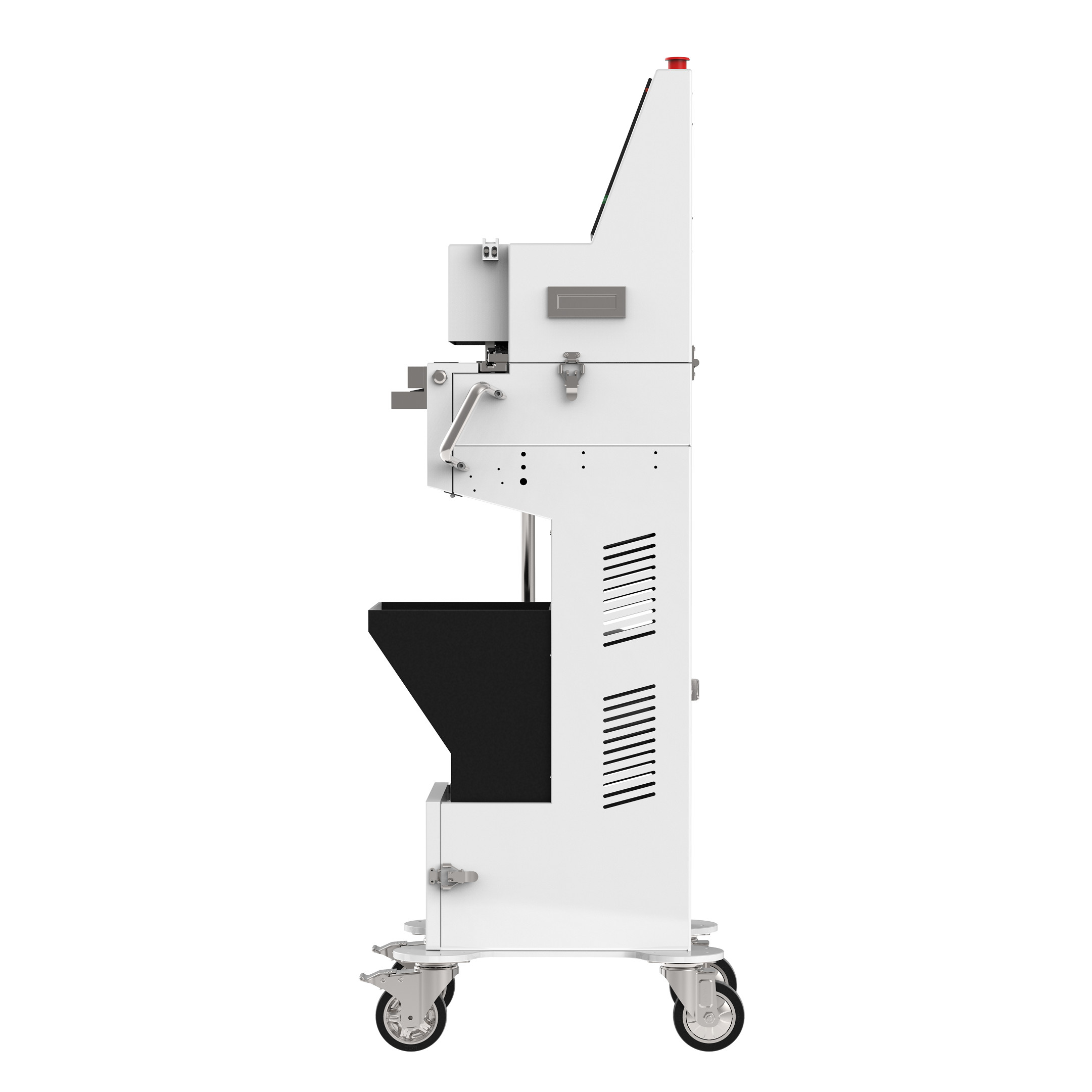

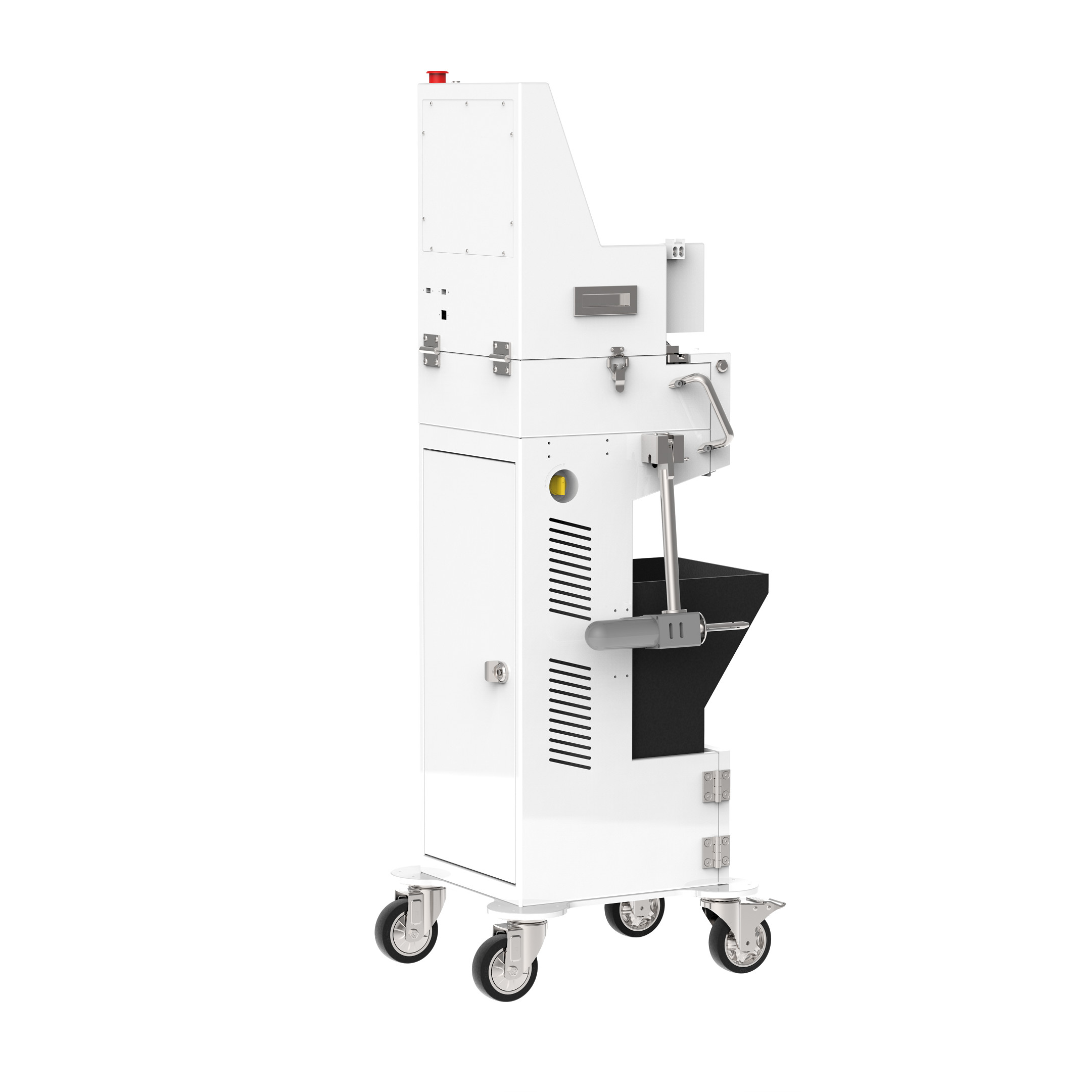

SMT Intelligent Automatic Splicing Machine 22Ah 7inches Carrier Tape Reel
KA100P SMT Intelligent Splicing Machine with automatic splicing
KHJ KA100P automatic splicing machine and enterprise's MES system can achieve perfect connection, the function of automatic error prevention and real-time monitoring can avoid a large number of sunk costs caused by manual operation errors.
The equipment is easy in operation, efficient in splicing, stable and reliable in running.
CORE ADVANTAGES
1. AUTOMATIC SPLICING:Apply to all types carrier tapes of 8mm.
2. HIGH FPY:FPY ≥99.3%.
3. LOW NOISE:Unique design of non-vacuum splicing to avoid heavy noise.
4. HIGH SPEED:Enhance the splicing speed and FPY greatly.
5. INTELLIGENT:Equipped with visual recognition system, automatic detection of empty pocket and pitch.
6. RELIABLE SPLICING:Working with hot-melt splice tape to enhance the splicing strength greatly no loosing or broken during carrier tape moving in feeder.
7. MATERIAL ERRORS RECOGNITION:Intelligent validation system incorporated to prevent material errors,can dock with ERP,MES system to achieve safe production.
8. EASY OPERATION:Easy to use,new operator can lean to use under 3 minutes,reduced the reliance on skilled operators and staff training.
PRODUCT SPECIFICATIONS
PRODUCT PARAMETER
| Apperance | Dimension (mm) | 469(L) x 416(W) x 1346(H)mm | Power Supply System | Battery Capacity | 22Ah |
| Weight | 70kg | Battery voltage | 48V | ||
| Conveyor | Conveyor Height | 930±10mm | Charging Voltage | 110V - 220V | |
| Width | 8mm | Charge time | 8H | ||
| Carrier Tape | Width & Material | 8mm(paper /plastic) | Full Charge Working Time | 12 - 16H | |
| Pitch | 2/4mm | Splicing efficiency | Splicing Time (c/t) | 12-15sec (not including loading time) | |
| Minimum Splicing Length | 120mm | ||||
| Splicing Tape | Length of Splicing Tape | 32mm | Winding Speed | 300rpm | |
| Equipment accuracy | Carrier Tape Feeding accuracy | ±0.10mm | FPY | Empty Componment Spliced | 0 - 2PCS |
| Equipment accuracy | Misalignment accuracy | ±0.15mm | Options and Accessories | Pre cutting | Automatic pre-cutting |
| Rewinding function | Control Mode | Automatic reset button | Dock with MES System | Available as Option | |
| Winding Device | One set (left side) | Barcode Gun | Available as Option | ||
| Carrier tape Reel | 7inches,13inches,15inches | Automatic copper pressing device | Available as Option | ||
| Control System | VCU | PLC+PPC | Right receiving arm | Available as Option | |
| Detection function of empty componment | Visual inspection (inspection of empty componment 01005 and above ) | ||||
With the development of intelligent automation in SMT factories. It is the inevitable trend to realize the automation production by using auto SMT Splicing machine. Started from 1999, KHJ Technology was devoted to the research and innovation of SMT Splicing machine, and focus on solving the SMT manufacturing difficulties in cooperation with global customers.
With the higher production requirement on SMT splicing production line and more smaller mounting components, which request latest technology to ensure the stable&reliable splicing and anti-electrostatic safety.
Why buy from us instead of buying from other suppliers?
1. Good production capacity and fast delivery.
2. Management cost saving and labor costs reducing.
3. Good reputation and after-sales service team.
4. Professional manufacturer for nearly 20 years.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
4. Various designs.
