Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: KA100
Payment & Shipping Terms
Minimum Order Quantity: One set
Price: Negotiable
Payment Terms: L/C, T/T
Product Name: |
KA100 |
Splicing Time (c/t): |
12-15sec (not Including Loading Time) |
Winding Speed: |
300rpm |
Empty Componment Spliced: |
0 - 2PCS |
Control Mode: |
Automatic Reset Button |
Winding Device: |
One Set（left Side） |
Carrier Tape Reel: |
7inches、13inches、15inches |
Control System: |
PLC+Smart Control |
Product Name: |
KA100 |
Splicing Time (c/t): |
12-15sec (not Including Loading Time) |
Winding Speed: |
300rpm |
Empty Componment Spliced: |
0 - 2PCS |
Control Mode: |
Automatic Reset Button |
Winding Device: |
One Set（left Side） |
Carrier Tape Reel: |
7inches、13inches、15inches |
Control System: |
PLC+Smart Control |
High FPY SMT Automatic Splicing Machine 300rpm PLC Control High Speed

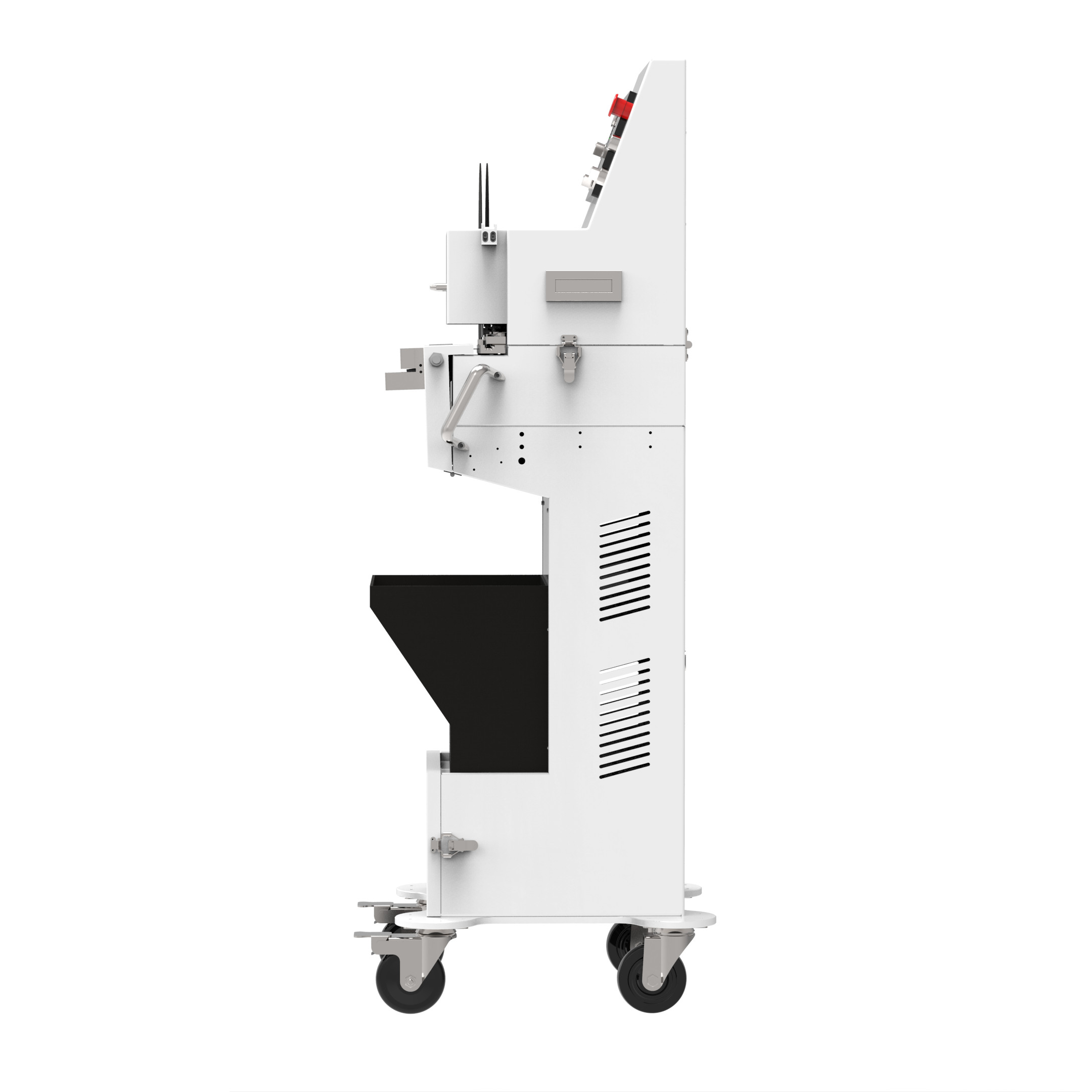

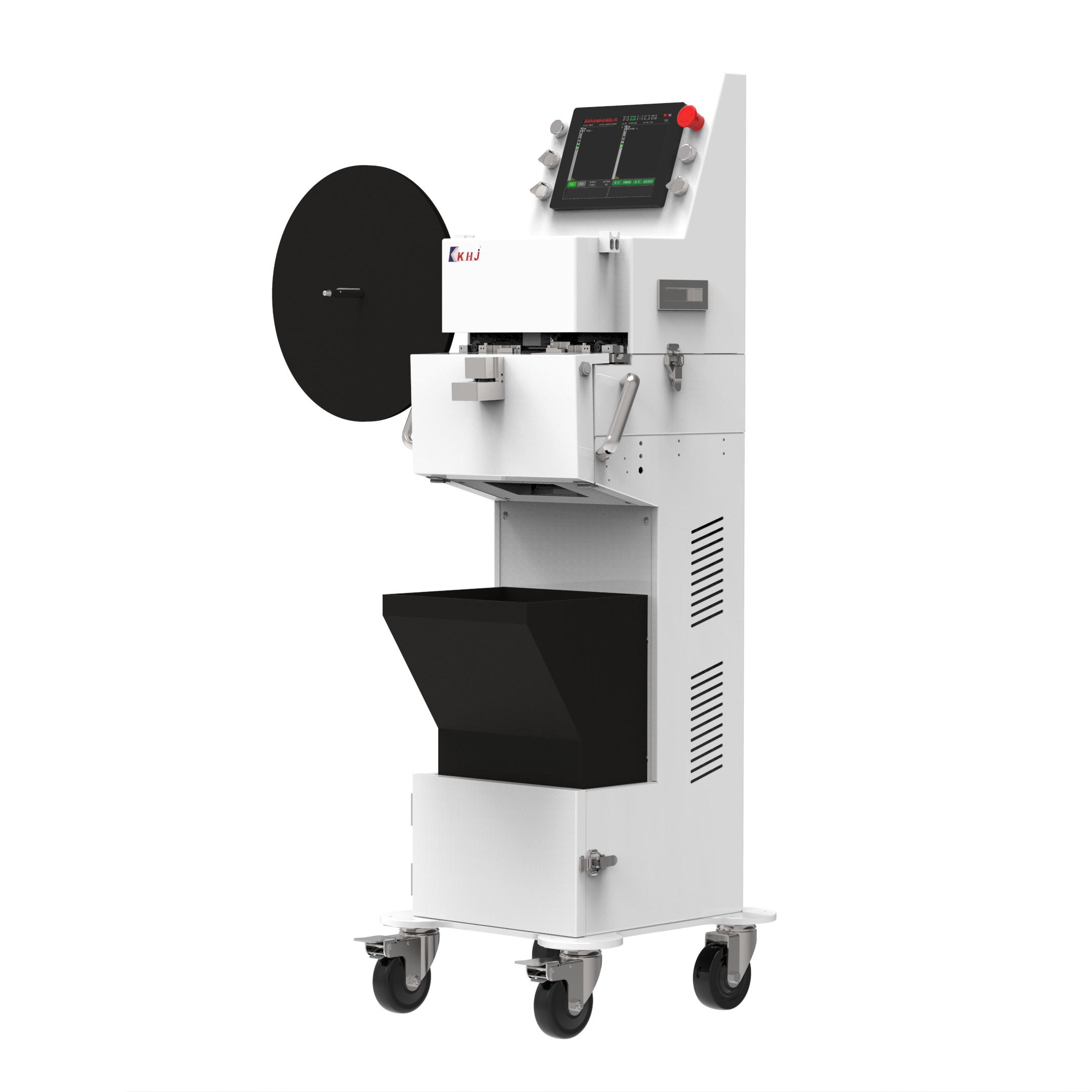

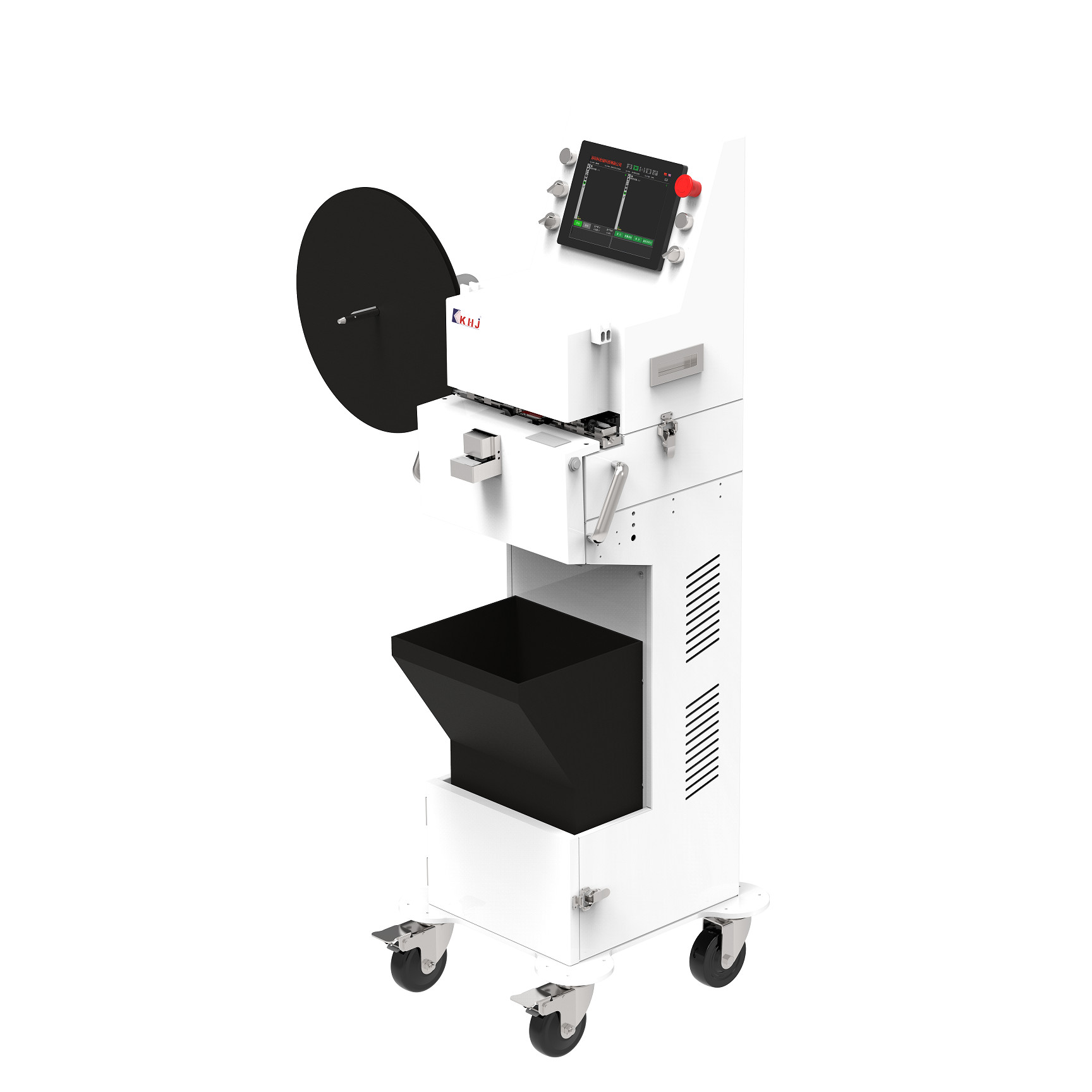

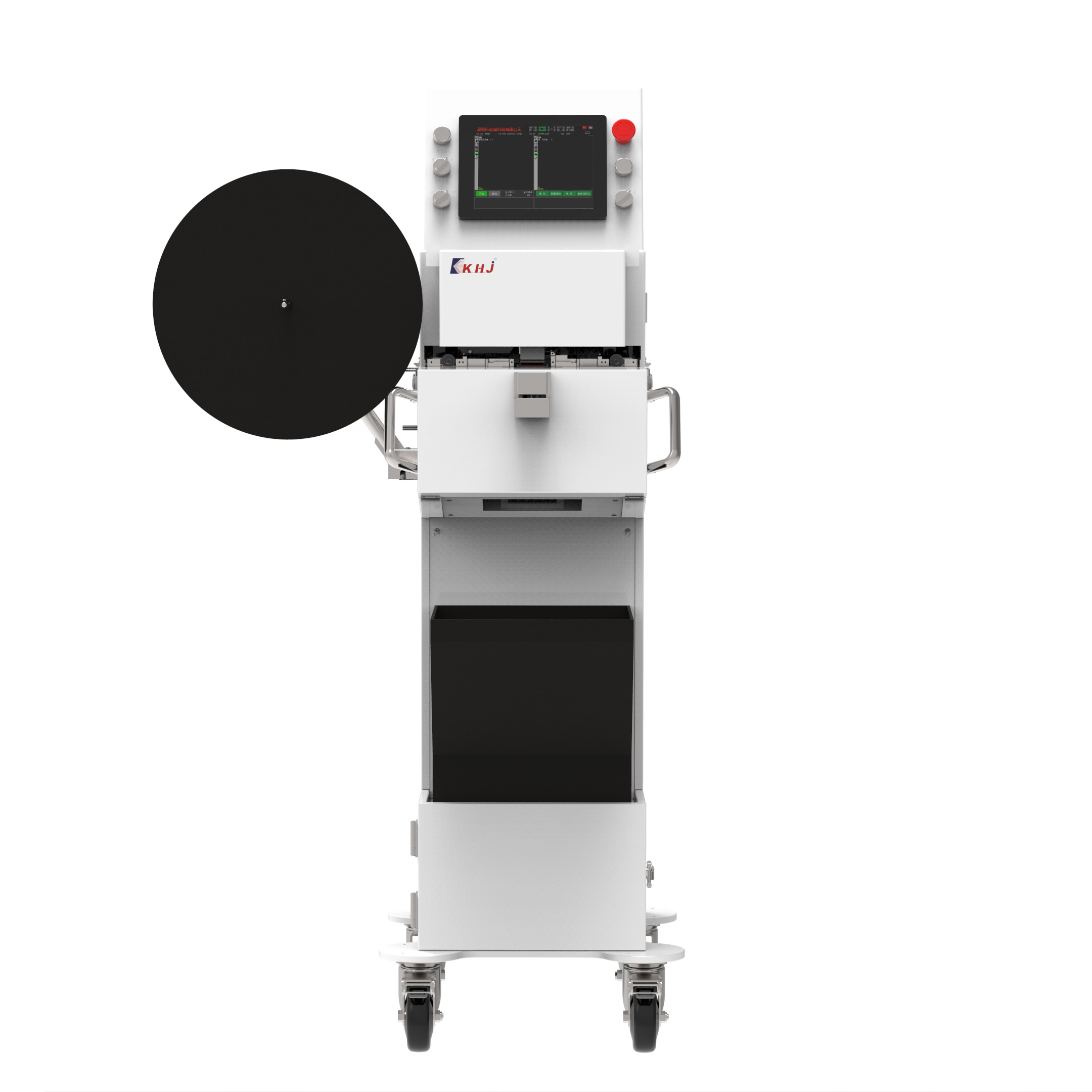

KA100 SMT Automatic Splicing Machine with high FPY
KA100 automatic splicing machine is designed to solve the problems of the splicing industry, is committed to help clients effective improving the production efficiency of enterprises and reducing labor costs.
CORE ADVANTAGES
1. AUTOMATIC SPLICING:Apply to all types carrier tapes of 8mm.
2. HIGH FPY:FPY ≥99.3%.
3. LOW NOISE:Unique design of non-vacuum splicing to avoid heavy noise.
4. HIGH SPEED:Enhance the splicing speed and FPY greatly.
5. COMPACT DESIGN:Compact design, free to move.
6. RELIABLE SPLICING:Working with hot-melt splice tape to enhance the splicing strength greatlyno loosing or broken during carrier tape moving in feeder.
7. HIGH EFFICIENCY:Each roll splice tape with 3000pcs can be used continuously for a long time.
8. EASY OPERATION:Easy to use,new operator can lean to use under 3 minutes,reduced the reliance on skilled operators and staff training.
PRODUCT SPECIFICATIONS
PRODUCT PARAMETER
| Apperance | Dimension (mm) | 400(L) x 424(W) x 1210(H)mm | Power Supply System | Battery Capacity | 22Ah |
| Weight | 60kg | Battery voltage | 48V | ||
| Conveyor | Conveyor Height | 920±20mm | Charging Voltage | 110V - 220V | |
| Width | 8mm | Charge time | 8H | ||
| Carrier Tape | Width & Material | 8mm(paper /plastic) | Full Charge Working Time | 12 - 16H | |
| Pitch | 2/4mm | Splicing efficiency | Splicing Time (c/t) | 12-15sec (not including loading time) | |
| Minimum Splicing Length | 120mm | ||||
| Splicing Tape | Length of Splicing Tape | 32mm | Winding Speed | 300rpm | |
| Equipment accuracy | Carrier Tape Feeding accuracy | ±0.10mm | FPY | Empty Componment Spliced | 0 - 2PCS |
| Equipment accuracy | Misalignment accuracy | ±0.15mm | Options and Accessories | Pre cutting | Automatic pre-cutting |
| Rewinding function | Control Mode | Automatic reset button | Barcode Gun | Available as Option | |
| Winding Device | One set (left side) |
Automatic copper pressing device |
Available as Option | ||
| Carrier tape Reel | 7inches,13inches,15inches | Right receiving arm | Available as Option | ||
| Control System | VCU | PLC+Smart Control |
It is the inevitable trend to realize the automation production by using auto SMT Splicing machine. Started from 1999, KHJ Technology was devoted to the research and innovation of SMT Splicing machine, and focus on solving the SMT manufacturing difficulties in cooperation with global customers.
With the higher production requirement on SMT splicing production line and more smaller mounting components, which request latest technology to ensure the stable&reliable splicing and anti-electrostatic safety.
What are our advantages?
1. Good production capacity and fast delivery.
2. Management cost saving and labor costs reducing.
3. Good reputation and after-sales service team.
4. Environmentally friendly products.
5. Professional manufacturer for nearly 20 years.
