Polyimide Heat Resistant Tape
Created with Pixso.

2mil ESD Polyimide Heat Resistant Tape

2mil ESD Polyimide Heat Resistant Tape

Brand Name: KHJ
Model Number: E2-IH823C
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
E2-IH823C
Adhesion To Steel:
4~6N/25mm
Total Tape Thickness:
0.055±0.005mm
Elongation:
≥10%
Static Discharge:
<100V
Maximum Operating Temperature:
290℃
Packaging Details:
Poly Bag+ Carton
Supply Ability:
10000 M2/Day
Highlight:

ESD Polyimide Heat Resistant Tape

,

2mil Polyimide Heat Resistant Tape

,

ESD kapton polyimide tape

Product Description

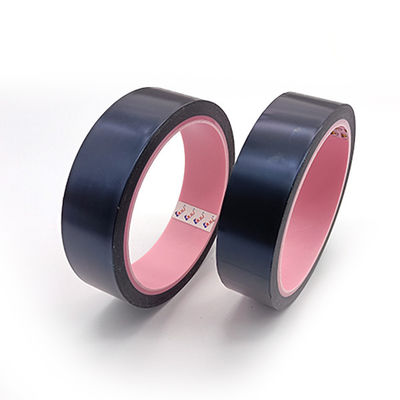

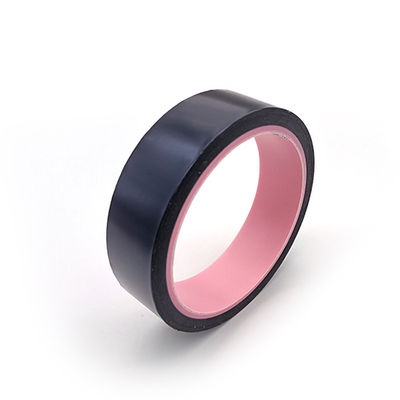

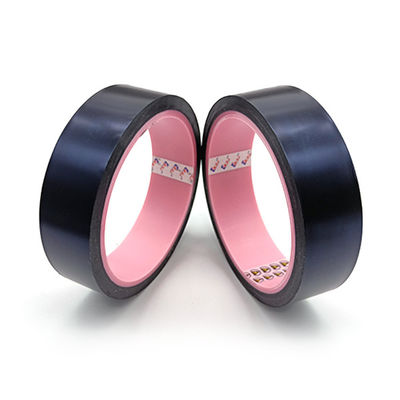

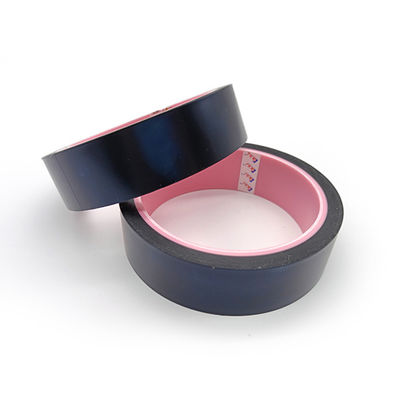

2mil ESD Polyimide Heat Resistant Tape



2mils ESD High Temperature Resistant PI Tape E2-IH823C Polyimide Heat Resistant Adhesive Tape With Good Heating Resistance and low static



E2-IH823C is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 290℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant



Properties:

Item kapton polyimide tape Typical Value
Backing 0.025mm
Total Thickness 0.050±0.005mm
Adhesion to Steel 4-6N/25mm
Tensile Strength ≥2(KN/M)
Elongation ≥10%
Surface Resistance 106-9ohms
Static Discharge <100V
Operating Temperature 290℃





Construction:

2mil ESD Polyimide Heat Resistant Tape 0



Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

2mil ESD Polyimide Heat Resistant Tape 1



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
