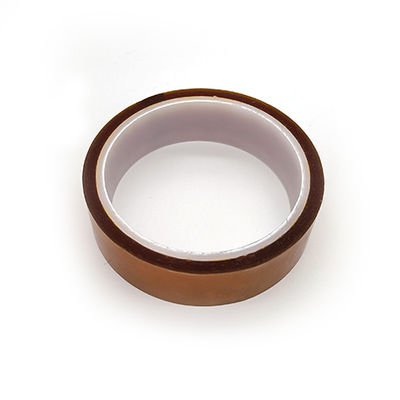

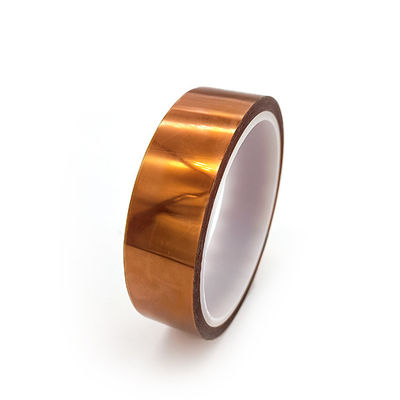

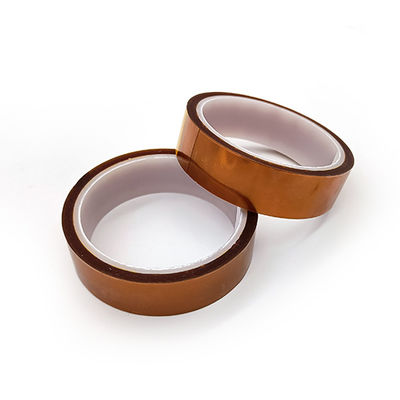

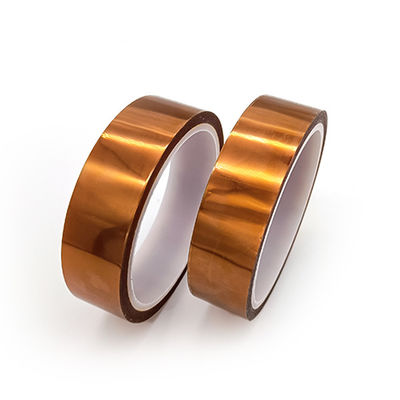

Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive

Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive
Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive

Large Image :  Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: DIH772A-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Supply Ability: 10000 square meters/day

Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive

Description
Product Name: DIH772A-B Backing Thickness: 0.025mm
Total Thickness: 0.075±0.005mm Upmost Temperature: 280℃
Dielectric Strength: >8000V Elongation: ≥45%
High Light:

FPC Double Sided Polyimide Tape

,

Silicone Double Sided Polyimide Tape

,

FPC double sided heat resistant tape

Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive

FPC double side coated polyimide tape DIH772A-B polyimide heat resistant tape with super heating resistance

DIH772A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance.


Features And Benefits:

1. Excellent tensile strength & Elongation.

2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃.

3. Both-Face with similar adhesion ,No any residue after removal.



Properties:

Item   Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 3.0±0.2mil 0.075±0.005mm
Adhesion to Steel 0.25lbs/in A adhesive:2.7N/25mm
0.20lbs/in B adhesive: 2.1N/25mm
Tensile Strength ≥20lbs/in ≥3.5(KN/M)
Elongation ≥45% ≥45%
Breakdown voltage >8KV >8KV
Maximum Operating Temperature 536℉ 280℃





Construction:

Heat Resistant FPC Double Sided Polyimide Tape Silicone Adhesive 0



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good reputation and after-sales service team.

2. Good location and convenient transportation.



What are our advantages?

1. What are our advantages?

2. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
