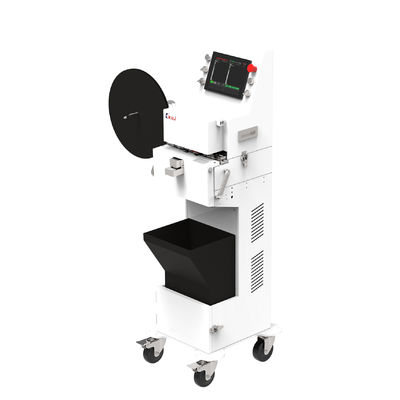

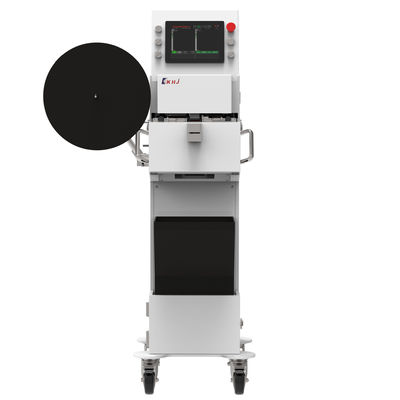

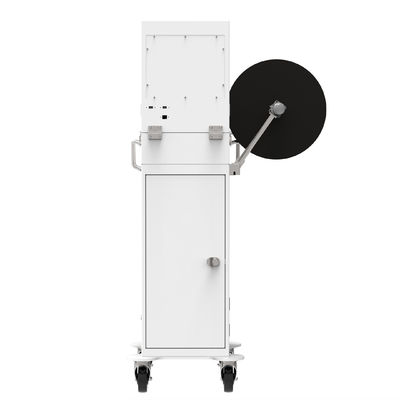

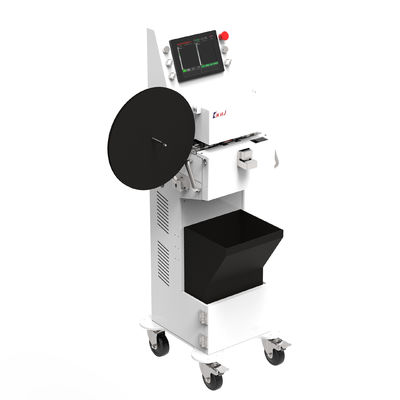

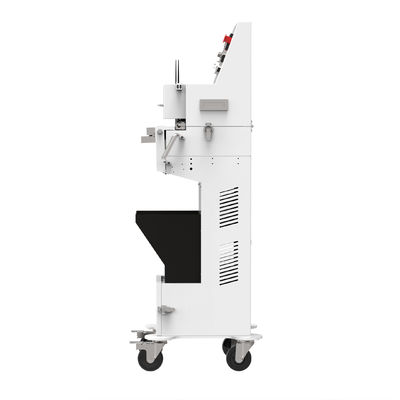

High Speed SMT tape splicing machine 48V non vacuum splicing

High Speed SMT tape splicing machine 48V non vacuum splicing
High Speed SMT tape splicing machine 48V non vacuum splicing High Speed SMT tape splicing machine 48V non vacuum splicing High Speed SMT tape splicing machine 48V non vacuum splicing High Speed SMT tape splicing machine 48V non vacuum splicing High Speed SMT tape splicing machine 48V non vacuum splicing

Large Image :  High Speed SMT tape splicing machine 48V non vacuum splicing

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: KA100
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Payment Terms: L/C, T/T

High Speed SMT tape splicing machine 48V non vacuum splicing

Description
Product Name: KA100 Control System: PLC+Smart Control
Battery Capacity: 22Ah Battery Voltage: 48V
Full Charge Working Time: 12 - 16H Control Mode: Automatic Reset Button
Winding Device: One Set(left Side) Carrier Tape Reel: 7inches、13inches、15inches
High Light:

SMT Tape Splicing Machine

,

48V Tape Splicing Machine

,

48V SMT Splicing Machine

High Speed SMT Tape Splicing Machine 48V Non Vacuum Splicing



KA100 SMT Automatic Splicing Machine with high speed and high efficiency



KA100 automatic splicing machine is developed to solve the pain points of the SMT splicing industry, is committed to help customers improving production efficiency and reducing labor costs.



CORE ADVANTAGES

1AUTOMATIC SPLICING:Apply to all types carrier tapes of 8mm.

2. HIGH FPY:FPY ≥99.3%.

3. LOW NOISE:Unique design of non-vacuum splicing to avoid heavy noise.

4. HIGH SPEED:Enhance the splicing speed and FPY greatly.

5. COMPACT DESIGN:Compact design, free to move.

6. RELIABLE SPLICING:Working with hot-melt splice tape to enhance the splicing strength greatlyno loosing or broken during carrier tape moving in feeder.

7. HIGH EFFICIENCY:Each roll splice tape with 3000pcs can be used continuously for a long time.

8. EASY OPERATION:Easy to use,new operator can lean to use under 3 minutes,reduced the reliance on skilled operators and staff training.



PRODUCT SPECIFICATIONS

High Speed SMT tape splicing machine 48V non vacuum splicing 0



PRODUCT PARAMETER

Apperance Dimension (mm) 400(L) x 424(W) x 1210(H)mm Power Supply System Battery Capacity 22Ah
Weight 60kg Battery voltage 48V
Conveyor Conveyor Height 920±20mm Charging Voltage 110V - 220V
Width 8mm Charge time 8H
Carrier Tape Width & Material 8mm(paper /plastic) Full Charge Working Time 12 - 16H
Pitch 2/4mm Splicing efficiency Splicing Time (c/t) 12-15sec (not including loading time)
Minimum Splicing Length 120mm
Splicing Tape Length of Splicing Tape 32mm Winding Speed 300rpm
Equipment accuracy Carrier Tape Feeding accuracy ±0.10mm FPY Empty Componment Spliced 0 - 2PCS
Equipment accuracy Misalignment accuracy ±0.15mm Options and Accessories Pre cutting Automatic pre-cutting
Rewinding function Control Mode Automatic reset button Barcode Gun Available as Option
Winding Device One set (left side)

Automatic copper

pressing device

Available as Option
Carrier tape Reel 7inches,13inches,15inches Right receiving arm Available as Option
Control System VCU PLC+Smart Control

























































With the automatic and intelligent development of SMT plant, the traditional manual splicing and inspection is more and more inapplicable.



Since 1999, KHJ has devoted itself to research and innovation in the field of SMT splicing, and has been working with global clients to solve the manufacturing difficulties in the SMT industry.
