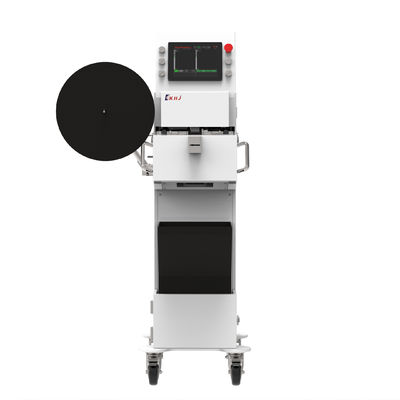

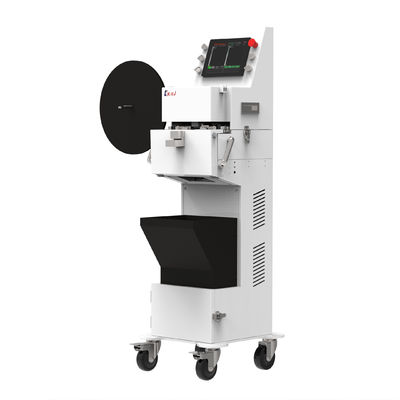

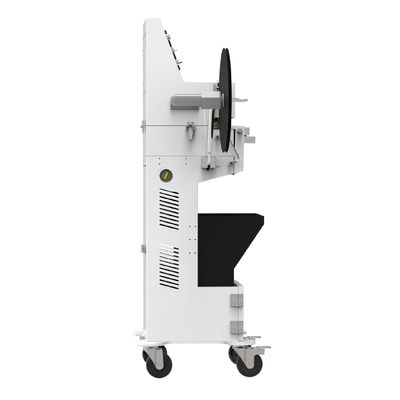

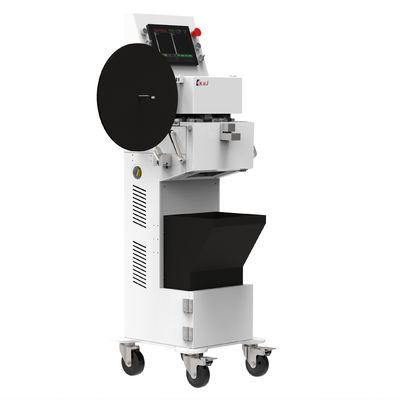

KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes

KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes
KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes

Large Image :  KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: KA100
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Payment Terms: L/C, T/T

KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes

Description
Product Name: KA100 Apperance Dimension: 400(L) X 424(W) X 1210(H)mm
Apperance Weight: 60kg Conveyor Heigh: 920±20mm
Conveyor Width: 8mm Length Of Splicing Tape: 32mm
Carrier Tape Feeding Accuracy: ±0.10mm Misalignment Accuracy: ±0.15mm
High Light:

Automatic Splicing Machine

,

8mm SMT Automatic Splicing Machine

,

smt reel splicing machine

KA100 SMT Automatic Splicing Machine High FPY For 8mm Carrier Tapes

KA100 SMT Automatic Splicing Machine


KA100 automatic splicing machine is developed to solve the pain points of the SMT splicing industry, is committed to help customers improving production efficiency and reducing labor costs.

SMT Automatic Splicing Machine advantages
1. Automatic splicing: suitable for all types of 8mm carrier tapes.
2. High FPY: FPY ≥99.3%.
3. Low noise: unique non-vacuum splicing design to avoid excessive noise.
4. HIGH SPEED: Greatly improve the splicing speed and FPY.
5. Compact design: compact design, free movement.
6. Reliable splicing: the use of hot-melt splicing tape greatly improves the splicing strength, and the carrier tape will not loose or break when moving in the feeder.
7. High efficiency: 3000 splicing tapes per roll can be used continuously for a long time.
8. Simple operation: simple operation, new operators can get started within 3 minutes, reducing the dependence on skilled operators and staff training.

PRODUCT SPECIFICATIONS
KA100 SMT Automatic Splicing Machine High FPY for 8mm carrier tapes 0

PRODUCT PARAMETER

Apperance Dimension (mm) 400(L) x 424(W) x 1210(H)mm Power Supply System Battery Capacity 22Ah
Weight 60kg Battery voltage 48V
Conveyor Conveyor Height 920±20mm Charging Voltage 110V - 220V
Width 8mm Charge time 8H
Carrier Tape Width & Material 8mm(paper /plastic) Full Charge Working Time 12 - 16H
Pitch 2/4mm Splicing efficiency Splicing Time (c/t) 12-15sec (not including loading time)
Minimum Splicing Length 120mm
Splicing Tape Length of Splicing Tape 32mm Winding Speed 300rpm
Equipment accuracy Carrier Tape Feeding accuracy ±0.10mm FPY Empty Componment Spliced 0 - 2PCS
Equipment accuracy Misalignment accuracy ±0.15mm Options and Accessories Pre cutting Automatic pre-cutting
Rewinding function Control Mode Automatic reset button Barcode Gun Available as Option
Winding Device One set (left side)

Automatic copper
pressing device

Available as Option
Carrier tape Reel 7inches,13inches,15inches Right receiving arm Available as Option
Control System VCU PLC+Smart Control





























It is the inevitable trend to realize the automation production by using auto SMT Splicing machine. Started from 1999, KHJ Technology was devoted to the research and innovation of SMT Splicing machine, and focus on solving the SMT manufacturing difficulties in cooperation with global customers.

With the higher production requirement on SMT splicing production line and more smaller mounting components, which request latest technology to ensure the stable&reliable splicing and anti-electrostatic safety.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



What are our advantages?

1. Professional manufacturer for nearly 20 years.

2. Good production capacity and fast delivery.

3. Management cost saving and labor costs reducing.
