Masking Green Polyester Tape High Temperature Anti Static 2.4mil

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

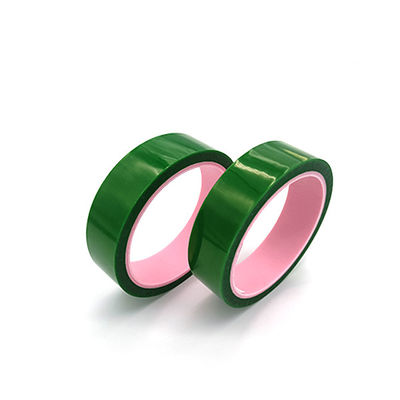

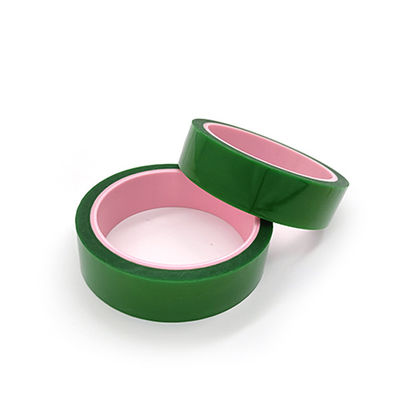

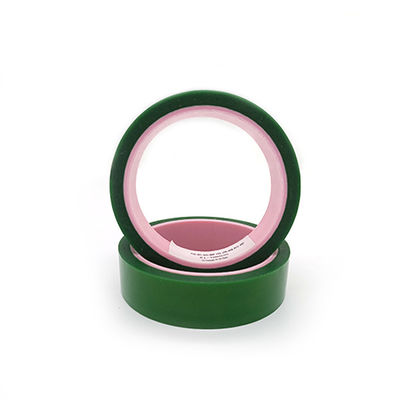

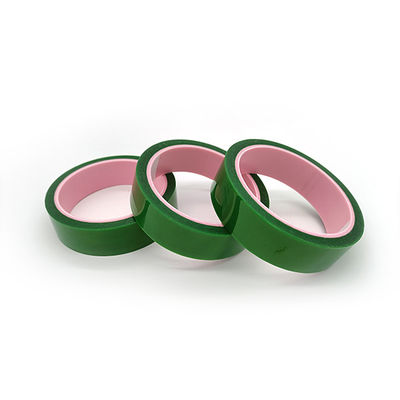

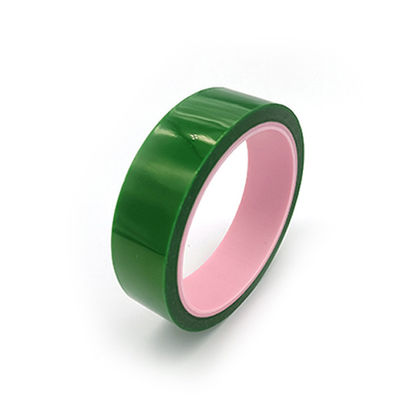

Masking Green Polyester Tape High Temperature Anti Static 2.4mil

Masking Green Polyester Tape High Temperature Anti Static 2.4mil
Masking Green Polyester Tape High Temperature Anti Static 2.4mil Masking Green Polyester Tape High Temperature Anti Static 2.4mil Masking Green Polyester Tape High Temperature Anti Static 2.4mil Masking Green Polyester Tape High Temperature Anti Static 2.4mil Masking Green Polyester Tape High Temperature Anti Static 2.4mil

Large Image :  Masking Green Polyester Tape High Temperature Anti Static 2.4mil

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-TH862G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

Masking Green Polyester Tape High Temperature Anti Static 2.4mil

Description
Product Name: E1-TH862G Backing Thickness: 0. 025mm
Total Tape Thickness: 0.060±0.005mm Tensile Strength At Break: ≥4KN/M
Maximum Operating Temperature: 200℃ Adhesion To Steel: 5-7N/25mm
High Light:

2.4mil Green Polyester Tape

,

2.4mil green polyester masking tape

,

2.4mil polyester masking tape

Masking Green Polyester Tape High Temperature Anti Static 2.4mil



Green polyester masking tape E1-TH862G with high temperature antistatic



E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.



Features And Benefits:

1. Resistant high temperature up to 200℃.

2. No residue after removal.

3. Excellent anti-aging ability, long shelf life.



Green Polyester Masking Tape Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.4±0.2mil 0.060±0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 1.1~1.6lbs/in 5~7N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 106~8ohms
Static Discharge (Removal from roll) <100V <100V
Maximum Operating Temperature 392℉ 200℃



Construction:

Masking Green Polyester Tape High Temperature Anti Static 2.4mil 0





Application:

Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.

Masking Green Polyester Tape High Temperature Anti Static 2.4mil 1



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
