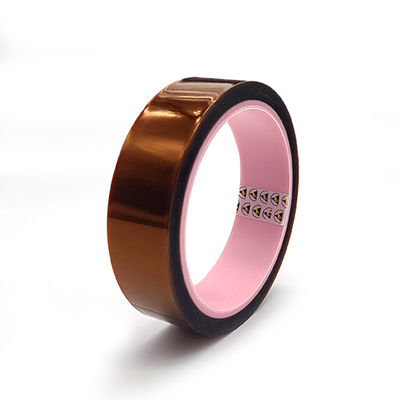

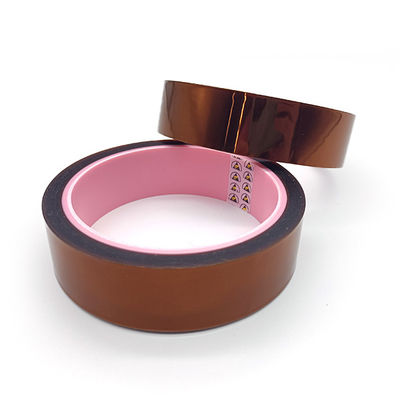

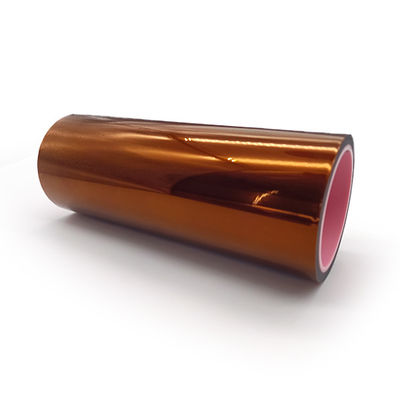

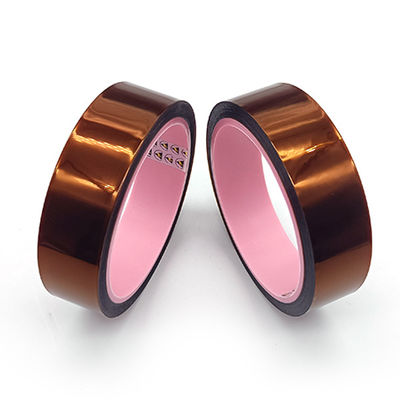

Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape

Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape
Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape

Large Image :  Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: IH810A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day

Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape

Description
Product Name: IH810A Backing Thickness: 0.025mm
Total Tape Thickness: 0.031±0.005mm Tensile Strength At Break: ≥3.5(KN/M)
Upmost Temperature: 260℃ Dielectric Strength: >4000V
High Light:

Polyimide High Heat Resistant Tape

,

QFN High Heat Resistant Tape

,

Polyimide QFN Tape

Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape



QFN masking polyimide tape-IH810A heat resistant adhesive tape with excellent heat resistant and no residue after using



IH810A is a polyimide film backed silicone adhesive tape with excellent heat resistance and insulation properties.



Features And Benefits:

1. Electrical insulation and clean removal without residue.

2. Resistant high temperature up to 260℃ for 10 minutes.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Application:

1. High-temperature shielding protection for different packaging processes, and temporary fixing in high-temperature process.

2. suitable for surface protection after removal of non-residual glue after high temperature use.



Properties:

Product High Heat Resistant Tape Units Test values
Backing Thickness: mm 0.025±0.003
Total Tape Thickness: mm 0.031±0.005
Release Liner thickness mm 0.075±0.003
Adhesion to Steel: N/25mm 0.6±0.2
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 260
Dielectric Strength Voltage >4000V



Construction:

Masking Polyimide High Heat Resistant Tape Silicone Adhesive QFN Tape 0



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
