Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly

Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly

Brand Name: KHJ
Model Number: TS630C
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
TS630C
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
Before Heating: 1-2N/25mm; After Heating: 0 N/25mm (135-150℃ * 5-15mins)
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
Packaging Details:
Plastic bag + carton
Supply Ability:
50000 rolls per month
Highlight:

2N Thermal Release Tape

,

0.075mm Thermal Release Tape

,

0.075mm heat release tape

Product Description

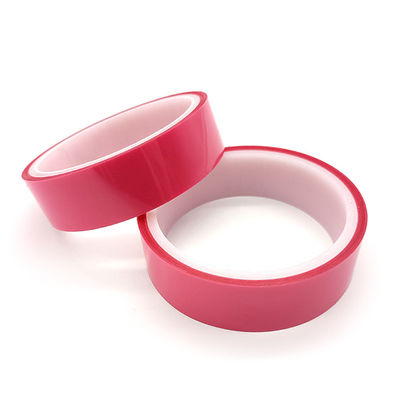

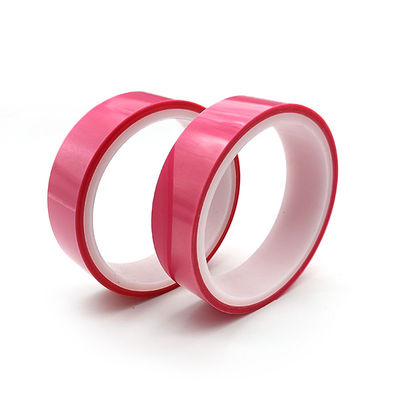

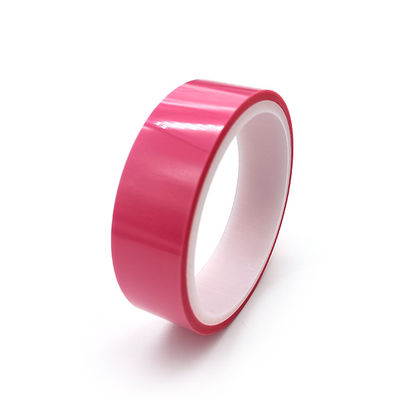

Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly 0Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly 1Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly 2

Polyester Film Backed Thermal Release Tape 0.075mm Environmentally Friendly



Polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape TS630C



TS630A is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(135-150℃).



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Properties:

Item Typical Value
    Metric
Backing 0.075mm
Total Thickness 0.135±0.005mm
Tack ≥12(J.DOW/#)
Adhesion Before heating 1-2N/25mm
  After heating 0
Tensile Strength ≥3.5(KN/M)
Elongation ≥45%



Construction:

Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly 3



Application:

TS630C is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.

Polyester Film Backed Thermal Release Tape 0.075mm Environmentally friendly 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why choose us?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
