products details

Created with Pixso. Home Created with Pixso. PRODUCTS Created with Pixso.
Thermal Release Tape
Created with Pixso.

polyester film Thermal Release Tape

polyester film Thermal Release Tape

Brand Name: KHJ
Model Number: TS630D-H
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
TS630D-H
Total Tape Thickness:
0.135±0.005mm
Backing Thickness:
0.075 ±0.002 Mm
Adhesion To Steel:
1-2N/25mm; After Heating: 0 N/25mm (135-150℃ * 5-15mins)
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
Packaging Details:
Plastic bag + carton
Supply Ability:
50000 rolls per month
Highlight:

Polyester Thermal Release Tape

,

ODM Thermal Release Tape

,

ODM release tape

Product Description

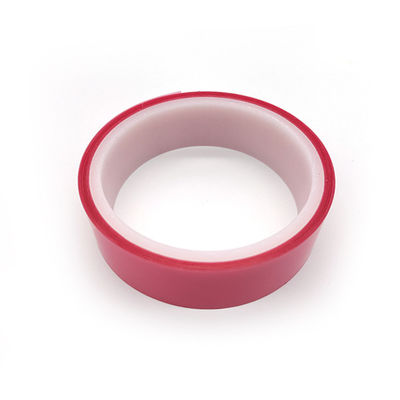

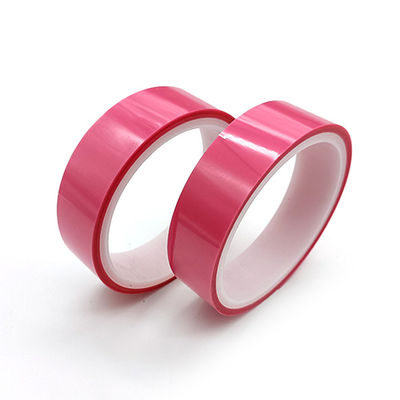

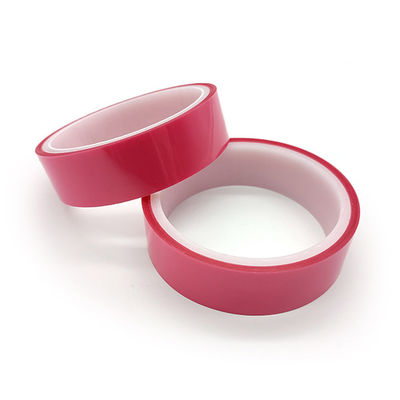

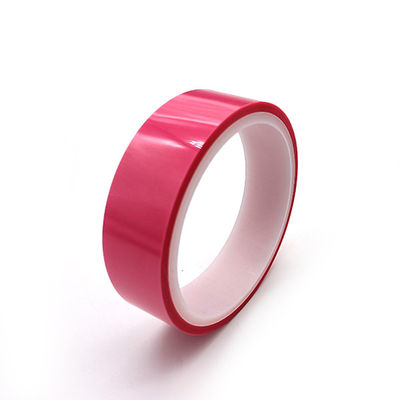

Polyester Film Thermal Release Tape



Thermal Release Tape TS630D-H With Higher Initial Adhesion Becomes Almost “Zero” By Heating



TS630D-H is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(135-150℃).



Features And Benefits:

1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.

2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.

3. Provides a high processing accuracy since substrates are kept in a fixed position.

4. Three types (rolls, labelers and sheets) are available.

5. Environmentally friendly since no cleaning is required for substrates.



Properties:

Item   Typical Value Test Method
    Metric
Backing 0.075mm /
Total Thickness 0.135±0.005mm /
Tack ≥12(J.DOW/#)
Adhesion Before heating 8N/25mm



GBT 2792-2014

  After heating 0
Tensile Strength ≥3.5(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014



Construction:

polyester film Thermal Release Tape 0



Application:

TS630D-H is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
