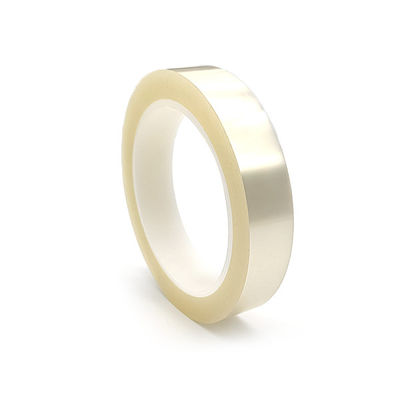

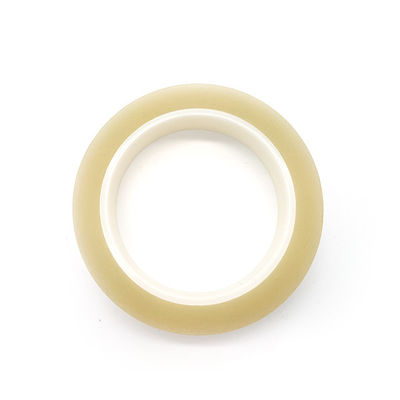

Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G

Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G
Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G

Large Image :  Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: UV389G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G

Description
Product Name: UV389G Elongation: ≥120%
UV Gelation Energy( Wave Length 365mm): ≥200mJ/cm2 Tensile Strength: ≥10KN/M
Total Tape Thickness: 0.095±0.005mm Base Material: PET
High Light:

3.8mil UV Dicing Tape

,

ODM UV Dicing Tape

,

3.8mil uv resistant electrical tape

Polyester PET 3.8mil UV Dicing Tape Anti Static Protection UV389G



High performance UV adhesive polyester UV389G tape lower adhesion after UV irradiation



UV389G is a high performance product coating UV adhesive on the surface of polyester. It has high initial peeling strength. Low adhesion after UV irradiation and no residue after peeling off.



Features And Benefits:

1. High initial adhesion.

2. Low adhesion after UV curing, easy to separate.



uv resistant electrical tape Properties:

Item Typical Value
Imperial Metric
Backing 3.0mil 0.075mm
Total Thickness 3.8±0.2mil 0.095±0.005mm
Peeling strength Before UV 1.8~5.7lbs/in 8~10N/25mm
After UV 0.11~0.36lbs/in 0.05~0.15N/25mm
Tensile Strength ≥57.13lbs/in ≥10(KN/M)
Elongation ≥120% ≥120%
UV Gelation energy( wave length 365mm) ≥200mJ/cm2 ≥200mJ/cm2



Construction:

Polyester PET 3.8mil UV Dicing Tape anti static protection UV389G 0

Application:

1. Wafer, component, glass cutting and grinding process cutting.

2. 3D glass bonding process, component packaging transfer.

3. Soft lithium battery protection, metal and anti-static protection.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Why buy from us instead of buying from other suppliers?

1. Advanced production and processing equipment, environmentally friendly and reliable products.

2. Good reputation and after-sales service team.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
