Polyimide Heat Resistant Tape
Created with Pixso.

Silicone Free High Temperature Polyimide Tape anti aging 0.035mm

Silicone Free High Temperature Polyimide Tape anti aging 0.035mm

Brand Name: KHJ
Model Number: IH890S
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
IH890S
Adhesion To Steel:
2-3.5N/25mm
Total Tape Thickness:
0.035±0.005mm
Tensile Strength At Break:
≥5(KN/M)
Temperature Resistance::
260℃ *5 Mins
Backing Thickness:
0.025mm
Packaging Details:
Plastic bag + carton
Supply Ability:
10000 square meters/day
Highlight:

ODM High Temperature Polyimide Tape

,

0.035mm High Temperature Polyimide Tape

,

ODM black kapton tape

Product Description

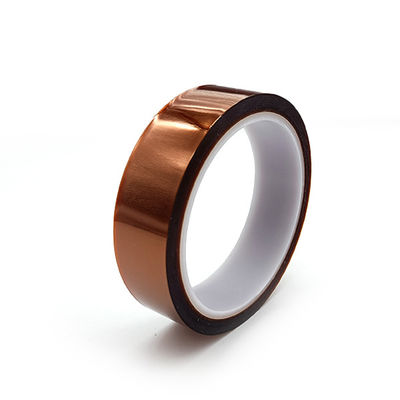

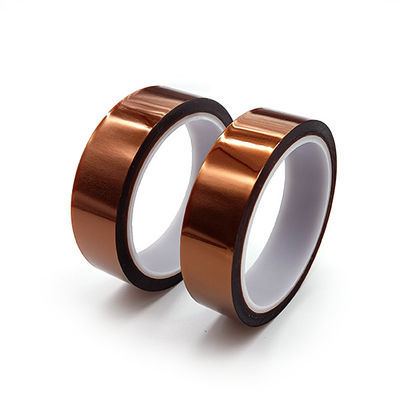

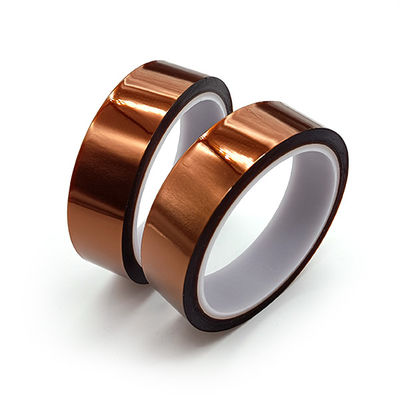

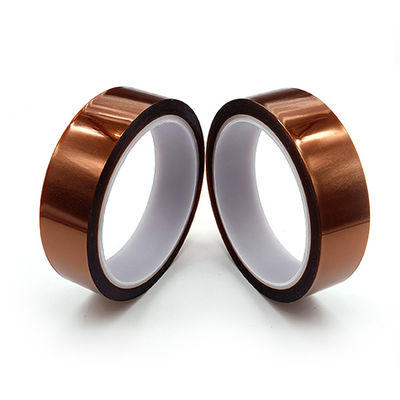

Silicone Free High Temperature Polyimide Tape Anti Aging 0.035mm



Silicone-free polyimide tape-IH890S polyimide heat resistant adhesive tape with good heating resistance



IH890S is a polyimide film backed Acrylic adhesive tape with excellent heatresistance and insulation properties.



Features And Benefits:

1. Resistant high temperature up to 260℃.

2. Good Adhesion ,No residue after removal.

3. Excellent anti-aging ability, long shelf life.



High Temperature Polyimide Tape Properties:

Item Typical Value



Test Method

Imperial Metric
Backing 1.0mil 0.025mm /
Total Thickness 1.38±0.2mil 0.035±0.005mm /
Adhesion to Steel 0.45~0.79lbs/in 2~3.5N/25mm GBT 2792-2014
Tensile Strength ≥28lbs/in ≥5(KN/M) GBT 30776-2014
Elongation ≥45% ≥45% GBT 30776-2014

Maximum Operating

Temperature

500℉ 260℃*5min No residue after removal





Construction:

Silicone Free High Temperature Polyimide Tape anti aging 0.035mm 0



Application:

Masking or protecting residue sensitive areas on printed circuit boards during high temperature operations such as wave soldering and solder reflow.



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
