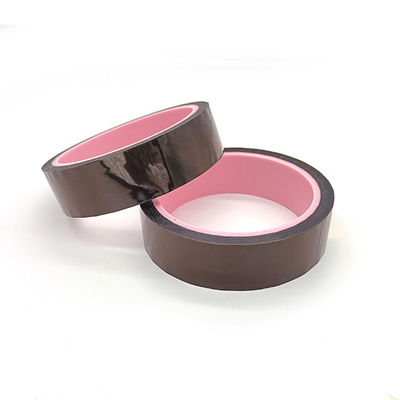

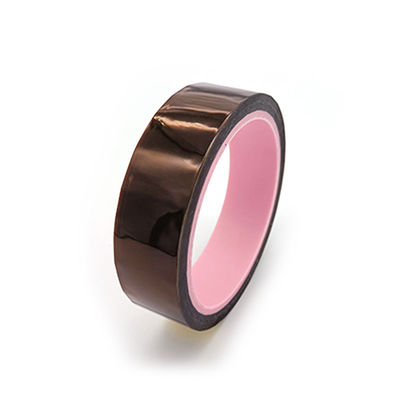

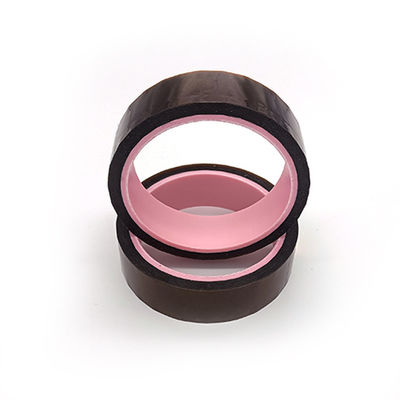

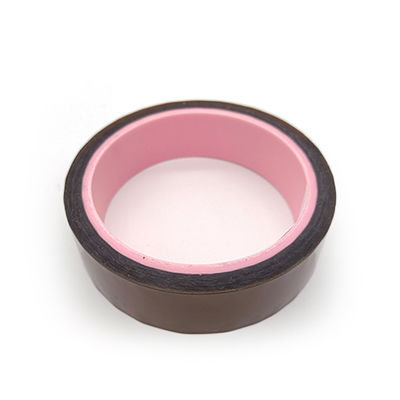

Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge

Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge
Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge

Large Image :  Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-IH803H
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day

Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge

Description
Product Name: E1-IH803H Backing Thickness: 0.025mm
Total Tape Thickness: 0.05±0.005mm Adhesion To Steel: 4N/25mm
Elongation At Break: ≥45% Maximum Operating Temperature: 290℃
High Light:

Polyimide High Heat Resistant Tape

,

0.05mm High Heat Resistant Tape

,

Polyimide electrostatic tape

ilicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge

Anti-static polyimide tape E1-IH803H with high temperature resistance



E1-IH803H is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 290℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.electrostatic tape.

Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge 0



Properties:

Item High Heat Resistant Tape Typical Value
Backing 0.025mm
Total Thickness 0.050±0.005mm
Tack ≥26(J.DOW/#)
Adhesion to Steel >4N/25mm
Tensile Strength ≥3.5(KN/M)
Elongation ≥45%
Surface & Adhesive Resistance 105-109ohms
Static Discharge <100V
Operating Temperature 290℃





Construction:

Silicone Polyimide High Heat Resistant Tape Low Electrostatic Discharge 1



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
