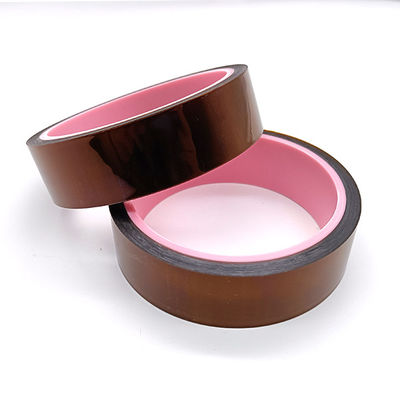

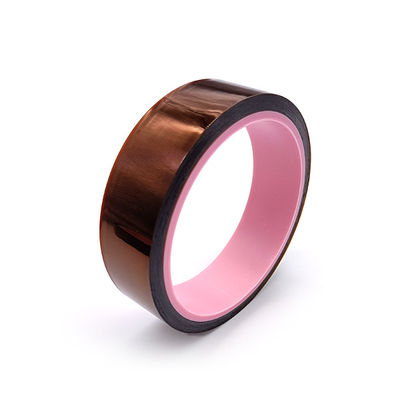

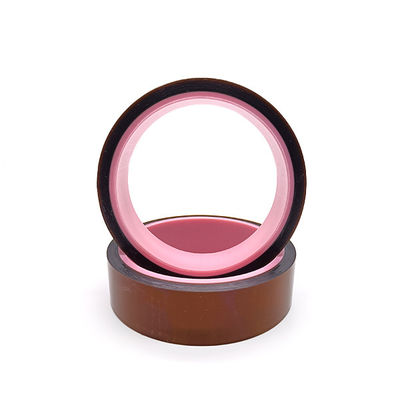

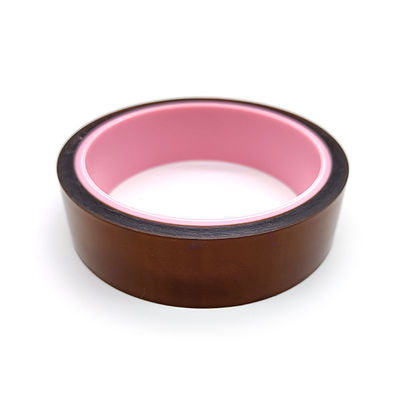

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape
Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape

Large Image :  Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: IH810D
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape

Description
Product Name: IH810D Upmost Temperature: 260℃*5mins
Adhesion To Steel: 2~3.5N/25mm Elongation At Break: ≥45%
Tensile Strength At Break:: ≥5(KN/M) Static Discharge(Removal From Roll): <100V
High Light:

0.035mm Heat Resistant Electrical Insulation Tape

,

ODM Thick Kapton Tape

,

0.035mm Thick Kapton Tape

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm Thick Kapton Tape



Zero pollution Silicone-Free Polyimide Tape-IH810D Heat Resistant masking Adhesive Tape With super Heating Resistance



IH810D is a polyimide film backed Acrylic adhesive tape with excellent heat resistance and insulation properties.

Heat Resistant Electrical Insulation Tape

Features And Benefits:

1. Good Adhesion ,No residue after removal.

2. Resistant high temperature up to 260℃.

3. Excellent anti-aging ability, long shelf life.

4. RoHS Compliant.



Thick Kapton Tape Properties:

Product Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.035±0.005
Adhesion to Steel: N/25mm 2~3.5
Tensile Strength at Break: KN/M ≥5
Elongation at Break: % ≥45%
Upmost Temperature ° C 260*5mins
Surface Resistance ohms 104~9ohms
Static Discharge(Removal from roll) Voltage <100V



Construction:

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape 0

Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape 1 Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape 2



Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape 3 Zero Pullution Heat Resistant Electrical Insulation Tape 0.035mm thick kapton tape 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
