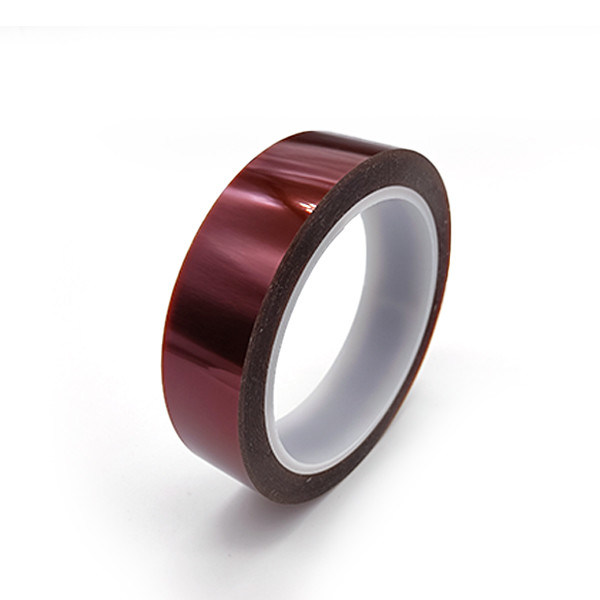

FPC Double Side Polyimide Heat Resistant Tape



DIH775A-B is a double-side coated silicone high temperature resistant polyimide tape which has different adhesion of double sides ,high adhesion and low adhesion to meet diffrerenct using purpose .



Features And Benefits:

1. Excellent tensile strength & Elongation.

2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃.

3. Both-sides with different adhesion, no any residue after removal.

4. RoHS Compliant.



Properties:

Item		Typical Value
	Imperial	Metric
Backing	3.0mils	0.075mm
Total Thickness	8.0±0.4mil	0.200±0.01mm
Adhesion to Steel	1.8lbs/in	A adhesive:8.0N/25mm
	0.18lbs/in	B adhesive: 0.8N/25mm
Tensile Strength	≥45.7lbs/in	≥8(KN/M)
Elongation	≥50%	≥50%
Breakdown voltage	>8KV	>8KV
Operating Temperature	536℉	280℃

Construction:



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
