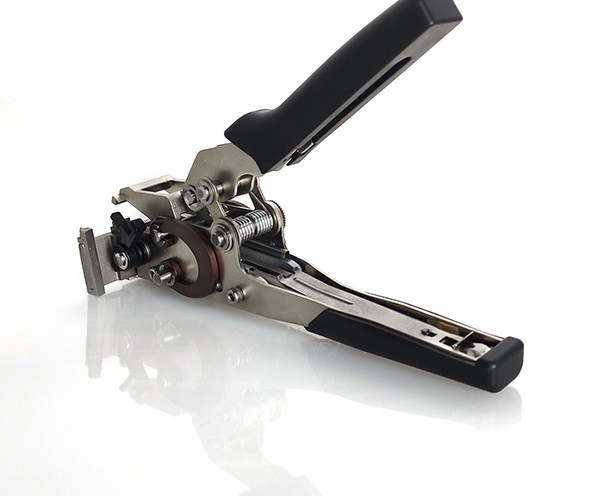

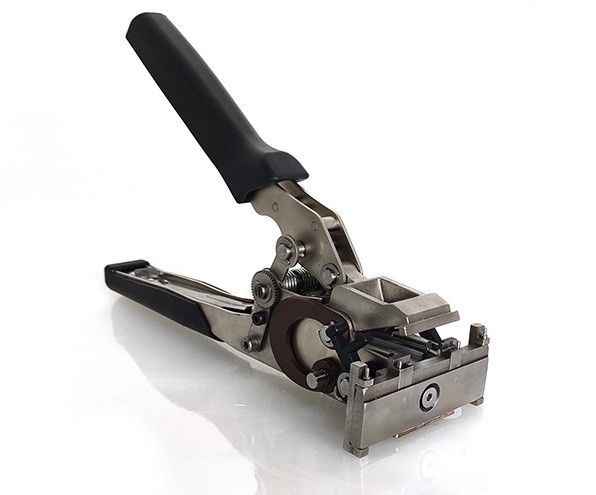

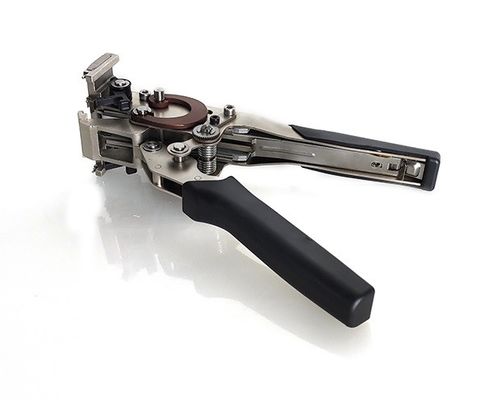

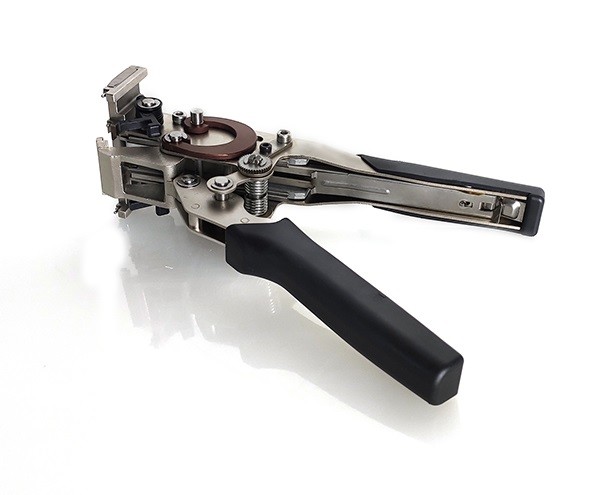

ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape
  • ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape
  • ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape
  • ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape
  • ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape

ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number TL102
Product Details
Product Name:
TL102
Body Material:
Stainless Steel
Handle Material:
ESD Black Plastic
Blade Material:
Stainless Steel
Color:
Raw Metal And Black Color
Certification:
RoHS
High Light:

Steel SMT Splice Tool

,

Black Handle SMT Splice Tool

,

SMT Steel splicing tools

Product Description

khjkhj emailkhj workshop

ESD Black Handle Steel SMT Splice Tool For SMT Reel Tape



New designed ESD black handle SMT stapler splice plier TL102 with adjustable C bracket used with frameless multi splice clips



TL102 is a new designed stapler SMT splicing tool,Which can continuously joint 20 times at one short with new designed frameless splice clip SMS-0604. It is safety and do not hurt hands tool.



Features And Benefits:

1. Stapler type hand tool.

2. Apply in all kinds of SMT material (Paper or Emboss type reel)connecting.

3. Quick connecting based on hand type.

4. Easy to install at docking station (Optional).

5. Easily installing the splice clip.

6. Great of durability by heat treatment of special steel.

7. Work with SMS0604 splice clip.

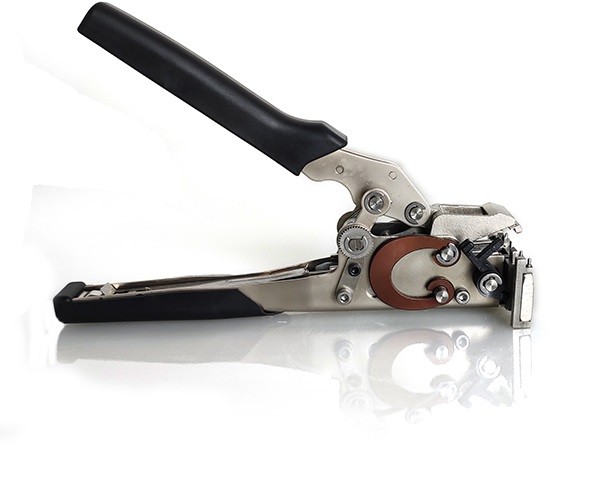

8. Designed with Buckle "C" , Buffer the operation force to reduce the wear of tool and longer its uselife.



Application:

TL102 is a new designed stapler SMT splicing tool,Which can continuously joint 20 times at one short with new designed frameless splice clip SMS-0604. It is safety and do not hurt hands tool.



Properties:

Item Subjects Parameter Tolerance
1 Length*Width*Thickness(mm) 202*30*116 ±2
2 Weight(g) 540 ±10
3 Handle resistance(ohms) 105-109 /



Main Parts and Material:

Item Parts Material
1 Tool body Steel
2 Handle ESD black Plastic



Attentions:

1. Storage:Pay attention to moisture ventilation; If bulk storage, keep the integrity of the packaging.

2.Transport:Don’t remove the packaging during the transhipment.

3. Usage:Please use it normatively, can not be used for cutting metal objects, can not be played with sharpened scissors mouth, so as not to hurt!



Maintenance:

Maintenance on time, add a little lubricating oil to activity components.Maintenance frequency is 2-4 times /Month.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Various designs.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
