Home > PRODUCTS > SMT Splice Tool > SMT Carrier Tape Zig Zag SMT Splicing Tool Sawtooth Designed

SMT Carrier Tape Zig Zag SMT Splicing Tool Sawtooth Designed

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: TL60

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: (1pcs/Box)

Get Best Price
Product Details
High Light:

Zig Zag SMT Splicing Tool

,

Tape SMT Splicing Tool

,

SGS tape splicing tool

Product Name:
TL60
Body Material:
Stainless Steel
Handle Material:
Plastic
Blade Material:
Stainless Steel
Color:
Raw Metal And Black
Certification:
RoHS
Product Name:
TL60
Body Material:
Stainless Steel
Handle Material:
Plastic
Blade Material:
Stainless Steel
Color:
Raw Metal And Black
Certification:
RoHS
Product Description

splice tape

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

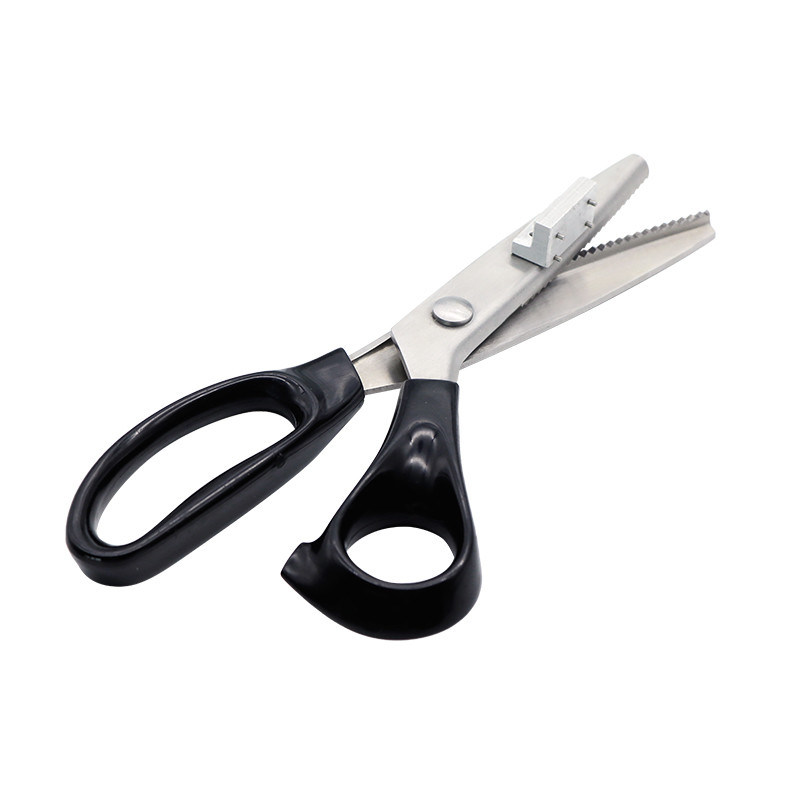

SMT Carrier Tape Zig Zag SMT Splicing Tool Sawtooth Designed

All-purpose SMT zig-zag splice tool TL60 with sawtooth designed used for cutting all types of SMT carrier tape

All-purpose SMT zig-zag splice tool TL60 used for cutting all types of SMT carrier tape.

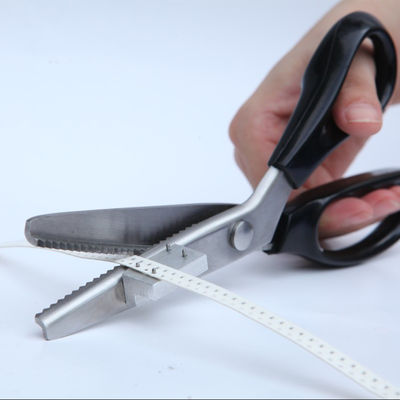

SMT Carrier Tape Zig Zag SMT Splicing Tool Sawtooth Designed 1





Features And Benefits:

New design cutter made of high quality stainless steel, specially designed for SMT cutting purpose.

1. With special location-column design, the cutter is suitable for cutting all kinds of carrier tapes, especially for carrier tapes with pitch as small as

2mm or even smaller. It can cut the carrier tape accurately in the middle between two components to decrease wasting.

2. Designed specially for cutting carrier tapes, not hurting hands when using.

3. Nice look and long life.



Application:

A good and convenient splice scissor with sawtooth. It’s suitable for all size carrier tape and splice to be combined perfectly by it’s sawtooth clip and positioning function.


Properties:
Serial Number Subjects Parameter Tolerance
1 Length*Width*Thickness(mm) 235*90*26 ±3
2 Weight(g) 161 ±3



Main Parts and Material:

Serial Number Parts Material
1 Scissors body steel
2 Handle plastic
3 Located block aluminum



Attentions:

1. Storage:Pay attention to moisture ventilation; If bulk storage, keep the integrity of the packaging.

2. Transport:Don’t remove the packaging during the transhipment.

3. Usage:Please use it normatively, can not be used for cutting metal objects, can not be played with sharpened scissors mouth, so as not to hurt!



Maintenance:

Maintenance on time, add a little lubricating oil to activity components.Maintenance frequency is 2-4 times /Month.



Why buy from us instead of buying from other suppliers?

1. Very competitive price and high quality control.

2. Accept small orders.

3. Gold supplier.

4. Good reputation and after-sales service team.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
