Home > PRODUCTS > Thermal Release Tape > 5.4mil green Thermal Release Tape

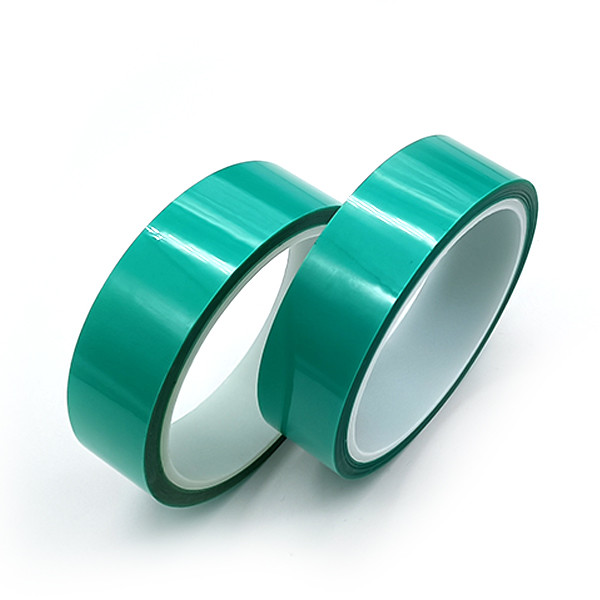

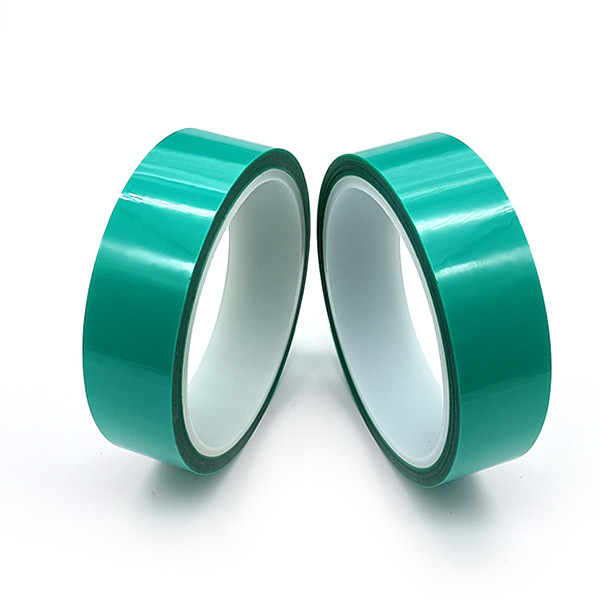

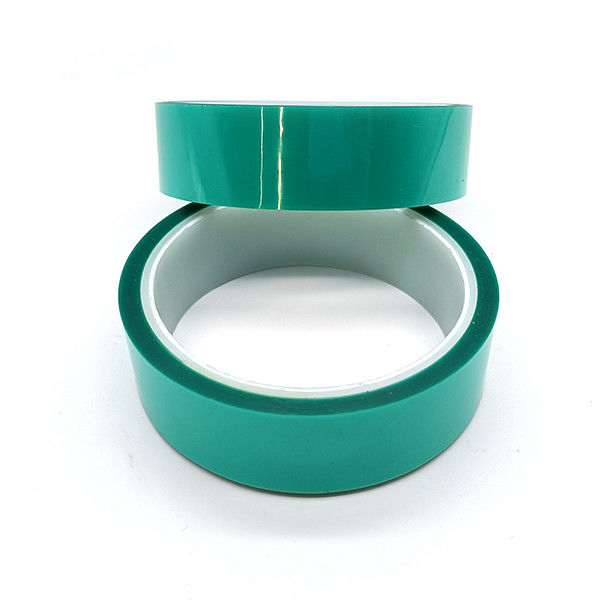

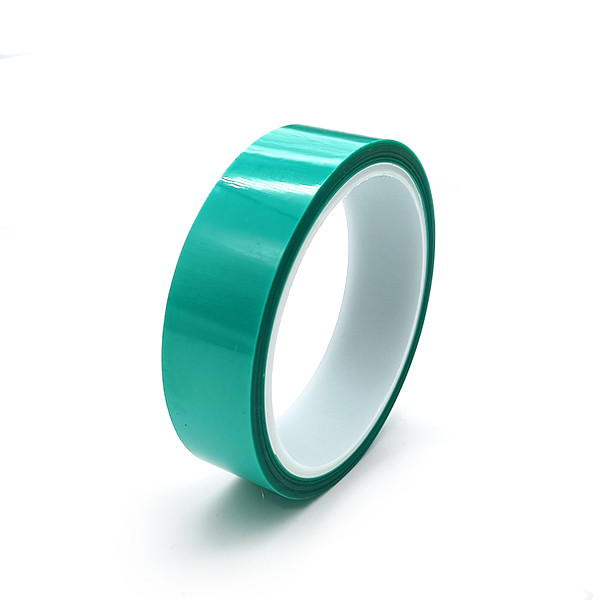

5.4mil green Thermal Release Tape

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: TS630

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: For samples 1-3 days and for mass order depends on your QTY.

Payment Terms: L/C, T/T

Supply Ability: 50000 rolls per month

Get Best Price
Product Details
High Light:

5.4mil Thermal Release Tape

,

OEM Thermal Release Tape

,

5.4mil polyester film tape

Product Name:
TS630
Total Thickness:
0.135±0.005mm
Backing Thickness:
0.075mm
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
Adhesion To Steel:
Before Heating: 0.5N/25mm; After Heating: 0 N/25mm
Product Name:
TS630
Total Thickness:
0.135±0.005mm
Backing Thickness:
0.075mm
Tensile Strength At Break:
≥3.5KN/M
Elongation At Break:
≥45%
Adhesion To Steel:
Before Heating: 0.5N/25mm; After Heating: 0 N/25mm
Product Description
5.4mil Green Thermal Release Tape

Electronic Component Cutting Protection Thermal Release Tape TS630 Green Tape


TS630 is a green polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature.



Features And Benefits:

1. Easily peeled off by heat treatment at any time.

2. Excellent tensile strength & Elongation.

3. RoHS Compliant.



 Polyester Film Tape Properties:



Item Typical Value
Imperial Metric
Backing 3.0mil 0.075mm
Total Thickness 5.4mil 0.135±0.005mm
Tack / ≥12(J.DOW/#)
Adhesion Before heating 0.11lbs/in 0.5N/25mm
After heating 0 0
Tensile Strength ≥20lbs/in ≥3.5(KN/M)
Elongation ≥45% ≥45%





Construction:

5.4mil green Thermal Release Tape 0

Application:

TS630 is used for electronic components, glasses, wafer, ceramics manufacturing processes and various temporary fixing.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why choose us?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
