Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: F331B
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
F331B |
Backing Thickness: |
0.038± 0.002mm |
Total Tape Thickness: |
0.068±0.002mm |
Adhesion To Steel: |
8N/25mm |
Tensile Strength At Break: |
≥5KN/M |
Elongation At Break: |
≥90% |
Product Name: |
F331B |
Backing Thickness: |
0.038± 0.002mm |
Total Tape Thickness: |
0.068±0.002mm |
Adhesion To Steel: |
8N/25mm |
Tensile Strength At Break: |
≥5KN/M |
Elongation At Break: |
≥90% |
Strong Polyester Film Acrylic Bonding Tape 2.7mil Pressure Sensitive Adhesive Fixing

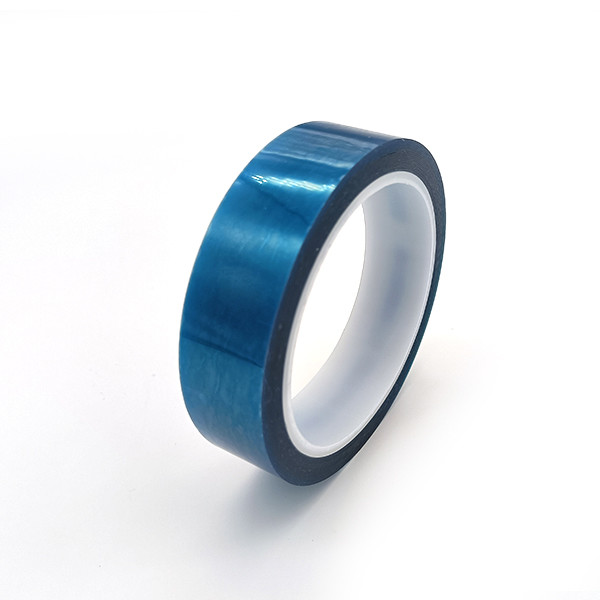

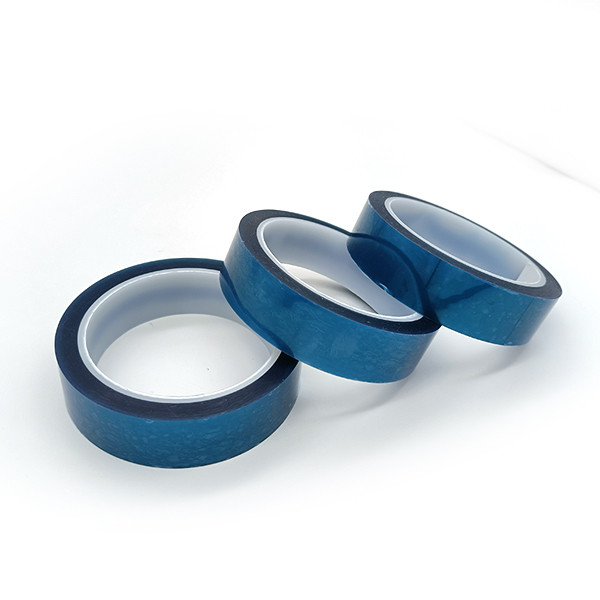

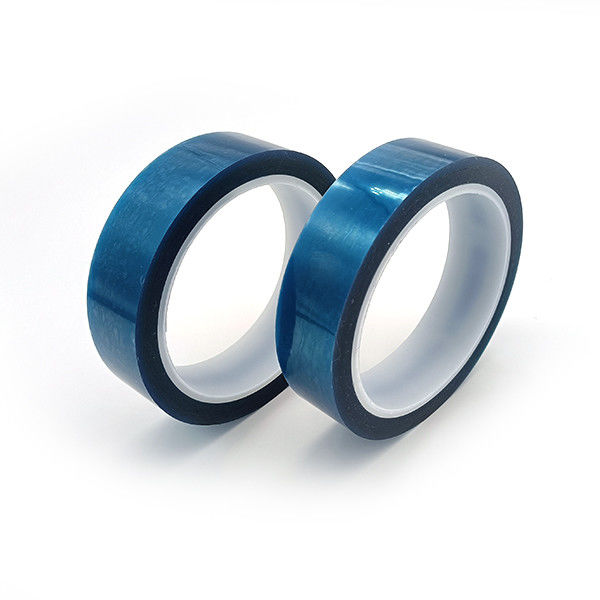

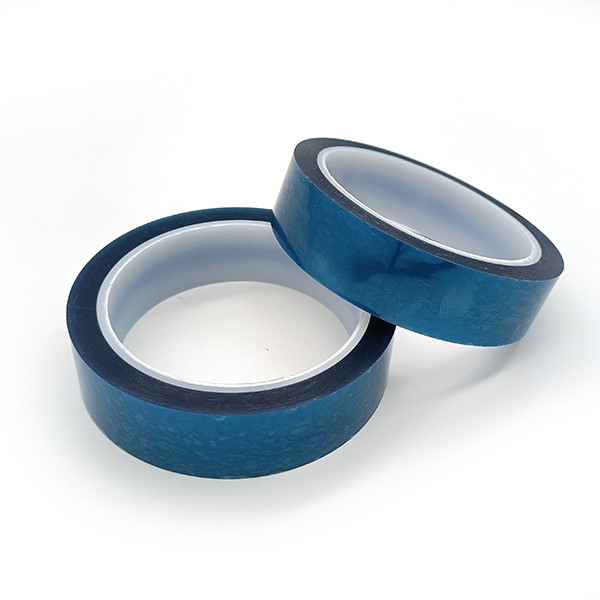

Strong polyester film F331B acrylic pressure sensitive adhesive fixing tape
F331B is a blue tape coated with acrylic pressure sensitive adhesive on PET surface. It has good adhesion.
Features And Benefits:
1. Strong PET film base with high adhesive strength.
2. Excellent tensile strength & Elongation.
3. RoHS standard.
Acrylic Bonding Tape Properties:
Item | Typical Value | |
Imperial | Metric | |
Backing | 1.52mil | 0.038±0.002mm |
Total Thickness | 2.7mil | 0.068±0.002mm |
Adhesion to Steel | ≥1.8lbs/in | ≥8N/25mm |
Tensile Strength | ≥28.56lbs/in | ≥5(KN/M) |
Elongation | ≥90% | ≥90% |
Construction:
Application:
The product can be applied to various environments with anti-static requirements, such as fixing, connecting and packaging of electronic manufacturing. It can also be used as temporary bonding and electronic packaging.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
