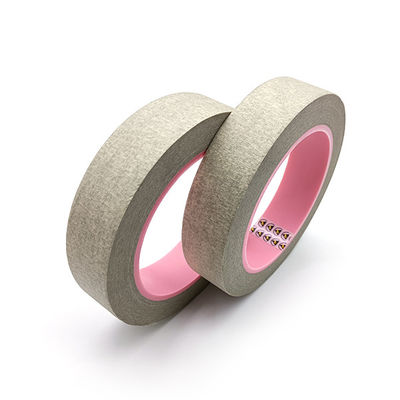

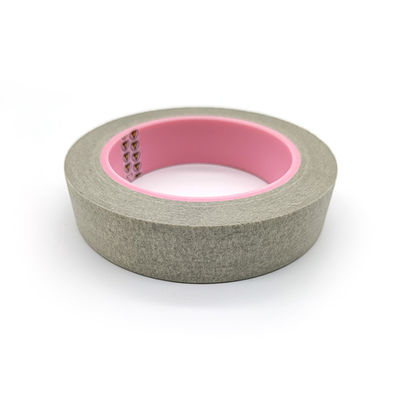

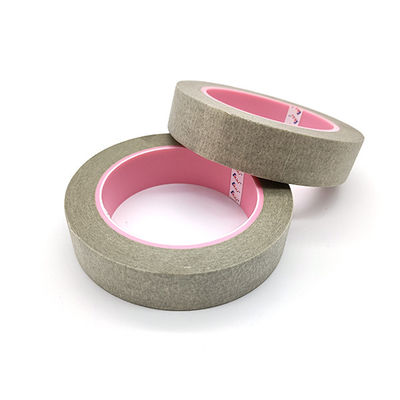

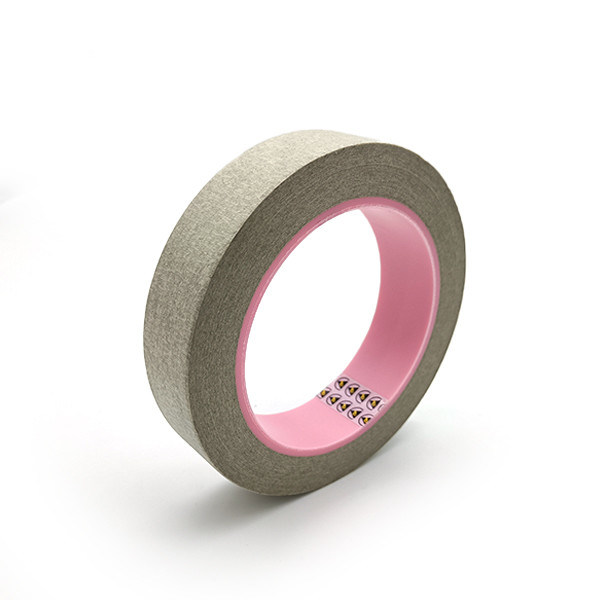

0.15mm Anti Static High Temperature Masking Tape For Components

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

0.15mm Anti Static High Temperature Masking Tape For Components

0.15mm Anti Static High Temperature Masking Tape For Components
0.15mm Anti Static High Temperature Masking Tape For Components 0.15mm Anti Static High Temperature Masking Tape For Components 0.15mm Anti Static High Temperature Masking Tape For Components 0.15mm Anti Static High Temperature Masking Tape For Components

Large Image :  0.15mm Anti Static High Temperature Masking Tape For Components

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-MH310G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Supply Ability: 50000 rolls per month

0.15mm Anti Static High Temperature Masking Tape For Components

Description
Product Name: E1-MH310G Adhesion To Steel: 4N/25mm
Tensile Strength At Break: ≥3KN/M Elongation At Break: ≥5%
Temperature Resistance:: 260℃ Static Discharge: <100V
High Light:

0.15mm High Temperature Masking Tape

,

0.15mm Masking Tape

,

0.15mm high temp masking tape



0.15mm Anti Static High Temperature Masking Tape For Components



Anti-Static High Temperature Masking Crepe Tape E1-MH310G Masking for Components and Temporary Holding



E1-MH310G is anti-static tape based with crepe paper with high temperature resistant.



Features And Benefits:

1. Low electrostatic discharge at unwind.

2. Resistant high temperature up to 260℃.

3. RoHS Compliant.

4. No residue after removal.



Properties:

Item high temp masking tape Typical Value
Total Thickness 0.15±0.01mm
Adhesion to Steel ≥4N/25mm
Tensile Strength 0.15mm Anti Static High Temperature Masking Tape For Components 0
Elongation
Surface Resistance 106~10ohms
Operating Temperature 260℃
Static Discharge <100V



Construction:

0.15mm Anti Static High Temperature Masking Tape For Components 1



Application:

Masking for thermosensitive components of Print Circuit Boards and temporary holding in wave soldering or reflow soldering process.



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
