Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color
  • Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color
  • Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color
  • Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color
  • Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color
  • Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color

Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color

Place of Origin China
Brand Name KHJ
Certification CE、ROHS、ISO9001
Model Number E1-TH862G
Product Details
Color:
Green
Backing Thickness:
25 Um
Total Tape Thickness:
60±5 Um
Adhesion To Steel:
5~7 (N/25mm)
Tensile Strength At Break:
≥4 (KN/M)
Elongation At Break:
≥90%
High Light:

Silicone ESD Masking Tape

,

Polyester ESD Masking Tape

,

ESD anti static masking tape

Product Description

khjkhj emailkhj workshop

Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color



Anti-static polyester silicone high temperature resistant masking tape E1-TH862G



E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.



anti static masking tape Features And Benefits:

Resistant high temperature up to 200℃.

No residue after removal.

Excellent anti-aging ability, long shelf life.



Properties:

Item ESD Masking Tape Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.4±0.2mil 0.060±0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 1.1~1.6lbs/in 5~7N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 106~8ohms
Static Discharge (Removal from roll) <100V <100V
Maximum Operating Temperature 392℉ 200℃

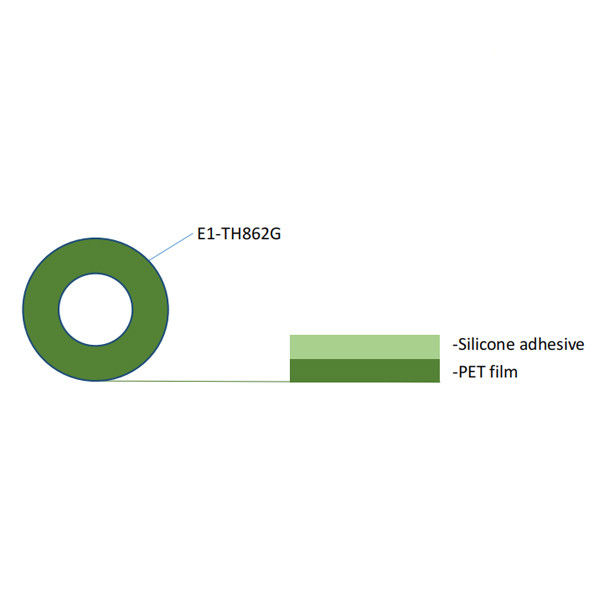

Construction:

Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color 3





Application:

Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.

Polyester Silicone ESD Masking Tape Anti Aging 2.4mil Green Color 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
