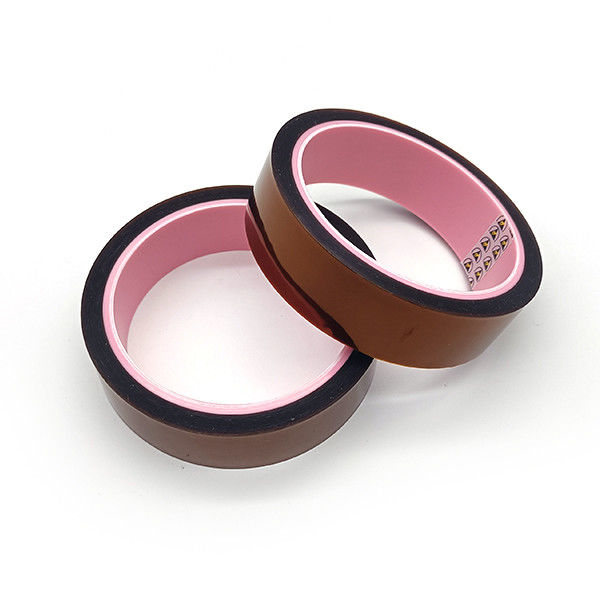

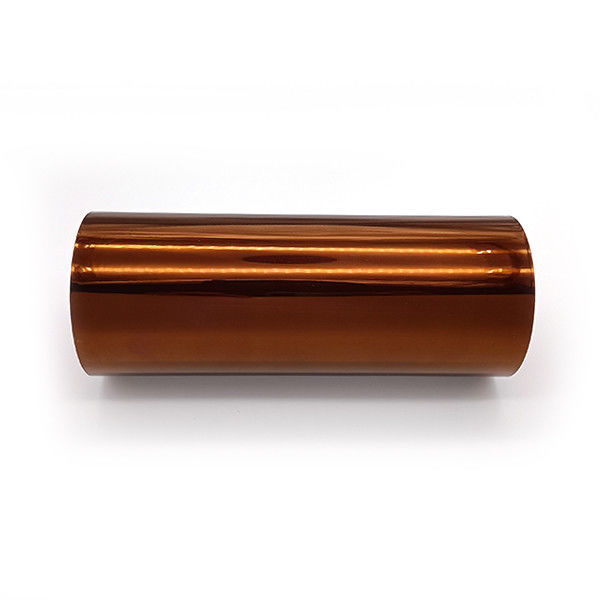

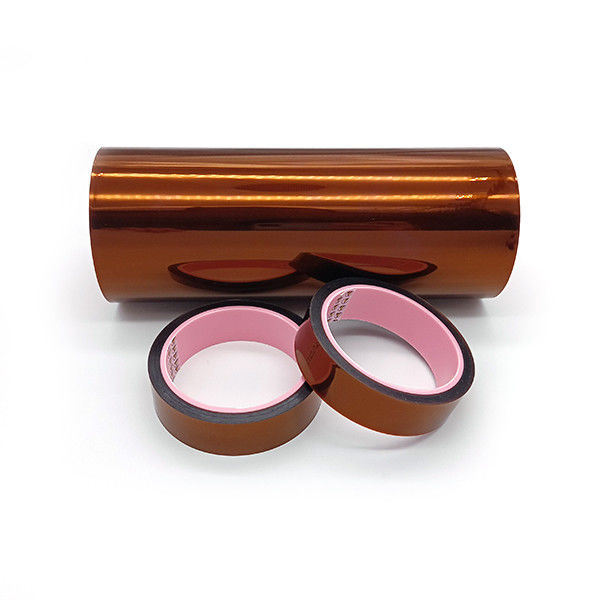

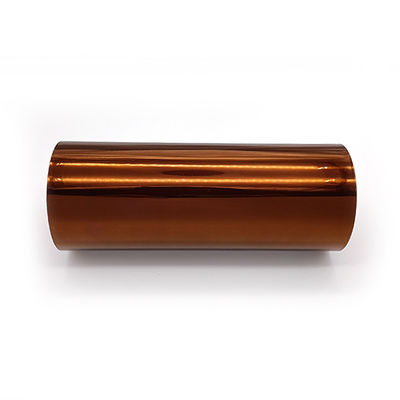

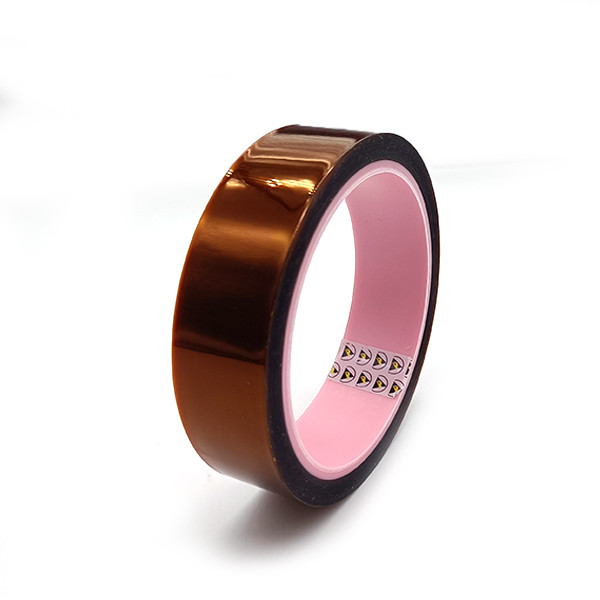

Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge

Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge
Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge

Large Image :  Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-IH803
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day

Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge

Description
Backing Thickness: 0.025mm Total Tape Thickness: 0.055±0.005mm
Tensile Strength At Break: ≥3.5 (KN/M) Elongation At Break: ≥45%
Adhesion To Steel: 4~6N/25mm Maximum Operating Temperature: 280℃
High Light:

2.2mil ESD Adhesive Tape

,

Silicone ESD Adhesive Tape

,

2.2mil tape esd

Anti Static Polyimide ESD Adhesive Tape 2.2mil Silicone Adhesive Low Static Discharge



Anti-static polyimide high temperature resistant masking tape E1-IH803 with very low static discharge



E1-IH803 is a polyimide film backed silicone adhesive tape with excellent heat resistance and low static discharge properties.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 280℃ for 10 minutes

3. Excellent tensile strength & Elongation

4. RoHS Compliant



Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.2mil 0.055±0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 0.91~1.37lbs/in 4~6N/25mm
Tensile Strength ≥20lbs/in ≥3.5(KN/M)
Elongation ≥45% ≥45%
Surface Resistance 106~8ohms 106~8ohms
Static Discharge (Removal from roll) <100V <100V
Maximum Operating Temperature 536℉ 280℃



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
