Bonding Packaging Aluminium Polyester Tape Anti Static Silver Grey Color 2.il

Product Details

Place of Origin: China

Brand Name: KHJ

Certification: CE、ROHS、ISO9001

Model Number: E2-FA926S

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Poly Bag+ Carton

Delivery Time: 1 Week

Supply Ability: 10000 M2/Day

Get Best Price
Contact Now
Specifications
Highlight:

2.il Aluminium Polyester Tape

,

0.025mm Aluminium Polyester Tape

,

Bonding esd polyester tape

Product Name:
E2-FA926S
Total Tape Thickness:
0.025mm
Adhesion To Steel:
10N/25mm
Tensile Strength At Break::
≥4(KN/M)
Elongation At Break::
≥70%
Surface Resistance:
105~10ohms
Product Name:
E2-FA926S
Total Tape Thickness:
0.025mm
Adhesion To Steel:
10N/25mm
Tensile Strength At Break::
≥4(KN/M)
Elongation At Break::
≥70%
Surface Resistance:
105~10ohms
Description

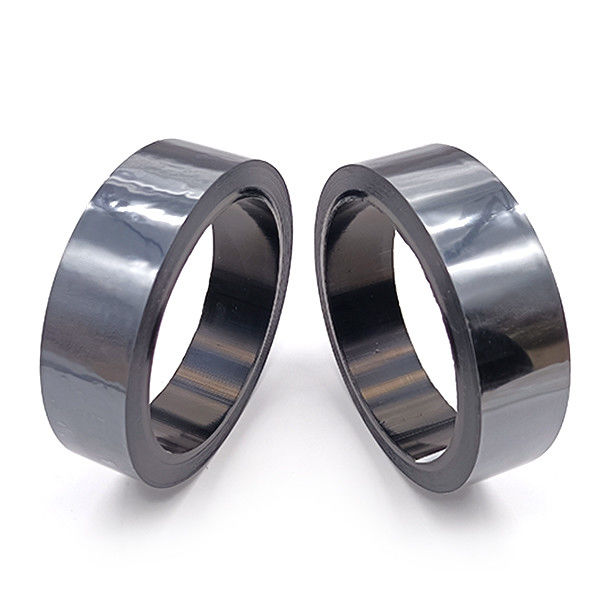

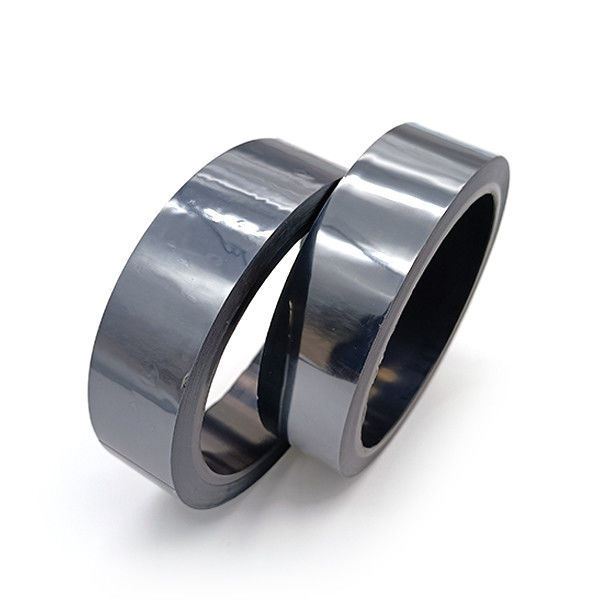

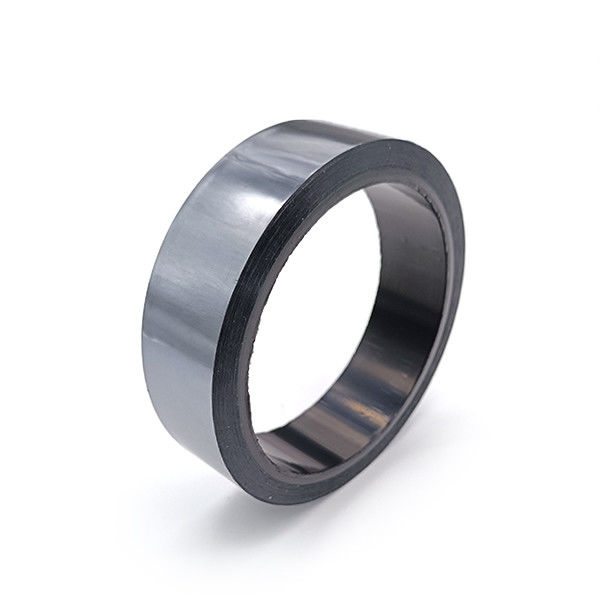

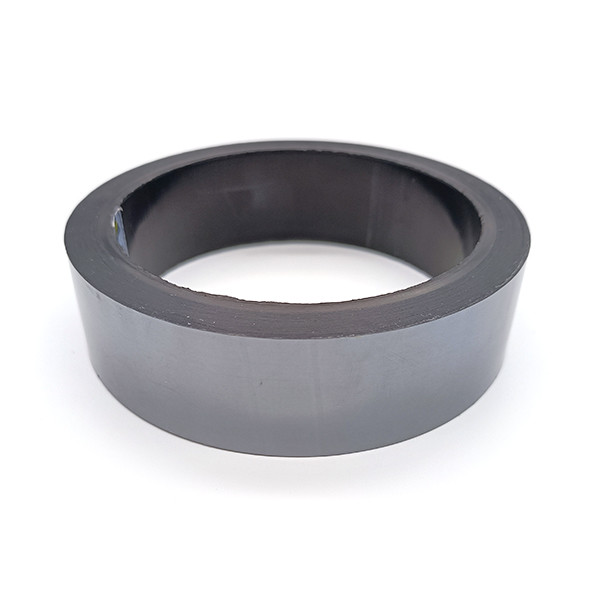

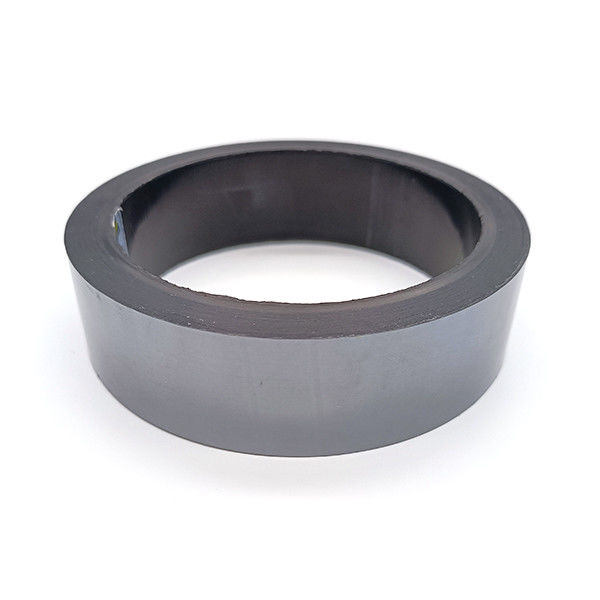

Bonding Packaging Aluminium Polyester Tape Anti Static Silver Grey Color 2.il



Bonding Packaging Aluminium Polyester Tape Anti Static Silver Grey Color 2.il



Polyester aluminumed tape E2-FA926S for various bonding and packaging



E2-FA926S is a silver grey tape coated with acrylic pressure sensitive adhesive and aluminum on the surface of PET film. It has good adhesion and anti-static properties.



esd polyester tape Features And Benefits:

1. strong adhesion, no residual glue after removal.

2. Low electrostatic discharge at unwind.

3. Excellent anti-static performance.

4. RoHS Compliant.



Properties:

Item Aluminium Polyester Tape Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.3±0.2mil 0.055±0.005mm
Adhesion to Steel 2.2lbs/in 10N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥70% ≥70%
Surface Resistance 105~10ohms 105~10ohms
Static Discharge (Removal from roll) <100V <100V



Construction:

Bonding Packaging Aluminium Polyester Tape Anti Static Silver Grey Color 2.il 0



Application:

The product can be applied to various environments with anti-static requirements, such as fixing, connecting and packaging of electronic manufacturing. It can also be used as temporary bonding and electronic packaging.



Storage:

1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2.Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1.Surface should be clean, dry, free of dust, oil or other contaminants.

2.Proper pressure required by roller, hand or press when applying.

3.Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
