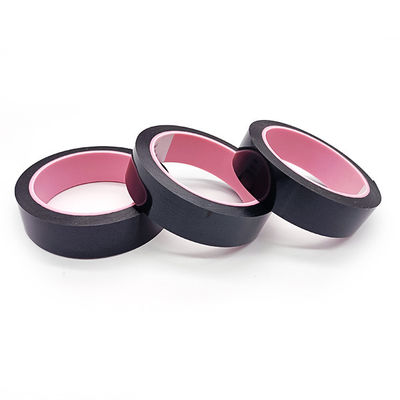

  • Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge

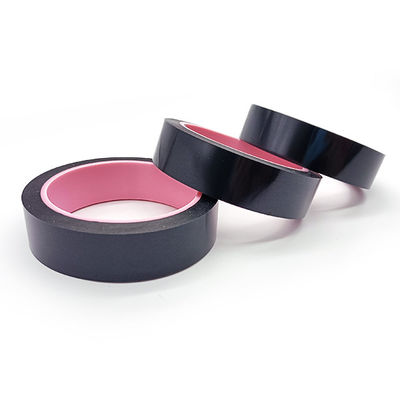

  • Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge

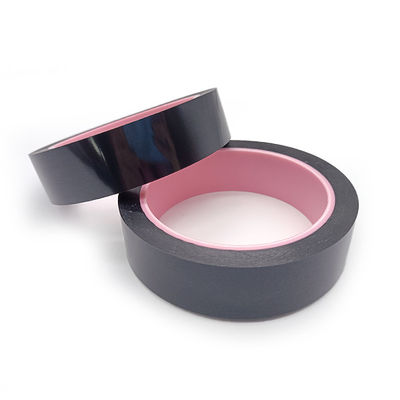

  • Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge

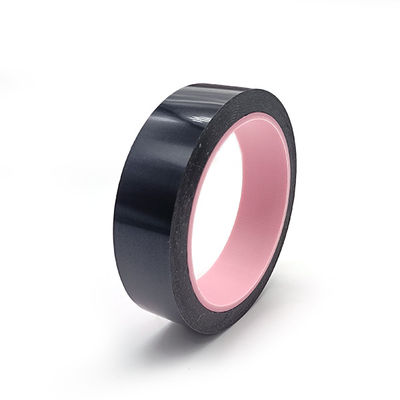

  • Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge

Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number E2-DIH776A-B
Product Details
Backing Thickness:
0. 083±0.00m
Total Tape Thickness:
0.205±0.01mm
Elongation At Break:
≥50%
Static Discharge (Removal From Roll):
<200V
Tensile Strength At Break:
≥8KN/M
Upmost Temperature:
260℃
High Light:

AntiStatic Heat Resistant Double Sided Tape

,

8.2mil Heat Resistant Double Sided Tape

,

8.2mil high heat double sided tape

Product Description

khjkhj emailkhj workshop

Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge

Anti-static double-side coated silicone adhesive E2-DIH776A-B polyimide tape with low electrostatic discharge at unwind



Anti-Static Double-Side Coated Silicone Adhesive DIH776A-B Polyimide Tape with Low Electrostatic Discharge at Unwind.



Features And Benefits

1. Low electrostatic discharge at unwind.

2. Excellent tensile strength & Elongation.

3. Resistant high temperature up to 500℉.

4. Both sides with different adhesion, no any residue after removal.



Properties:

Item Typical Value
Imperial Metric
Backing 3.32mil 0.083±0.00m
Total Thickness 8.2mil 0.205±0.01mm
Adhesion to Steel A adhesive >0.62lbs/in >6.5N/25mm
B adhesive <0.096lbs/in <1N/25mm
Surface Resistance / <1011ohms
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Static Discharge (Removal from roll) <200V <200V
Maximum Operating Temperature 500℉ 260℃



Construction:
Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge 3



Application

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.

Anti Static Heat Resistant Double Sided Tape Polyimide Low Electrostatic Discharge 4



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
