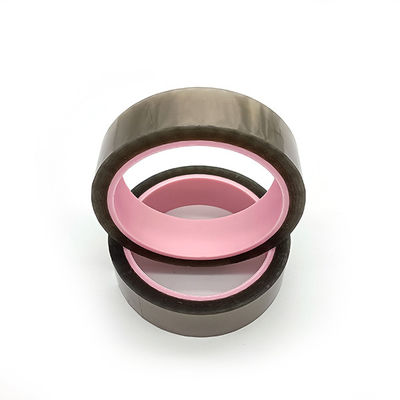

0.025mm ESD Adhesive Tape 2.il Transparent Polyester Tape For PCB Reflow Soldering

Product Details

Place of Origin: China

Brand Name: KHJ

Certification: CE、ROHS、ISO9001

Model Number: E1-TH862TD

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Poly Bag+ Carton

Delivery Time: 1 Week

Payment Terms: L/C, T/T

Supply Ability: 10000 M2/Day

Get Best Price
Contact Now
Specifications
Highlight:

2.il ESD Adhesive Tape

,

0.025mm ESD Adhesive Tape

,

2.il Transparent Polyester Tape

Product Name:
E1-TH862TD
Backing Thickness:
0.025mm
Total Tape Thickness:
0.06±0.005mm
Adhesion To Steel:
5~7N/25mm
Tensile Strength At Break:
≥4(KN/M)
Elongation At Break::
≥90%
Product Name:
E1-TH862TD
Backing Thickness:
0.025mm
Total Tape Thickness:
0.06±0.005mm
Adhesion To Steel:
5~7N/25mm
Tensile Strength At Break:
≥4(KN/M)
Elongation At Break::
≥90%
Description
0.025mm ESD Adhesive Tape 2.il Transparent Polyester Tape For PCB Reflow Soldering



0.025mm ESD Adhesive Tape 2.il Transparent Polyester Tape For PCB Reflow Soldering​



Transparent polyester tape E1-TH862TD with anti-static and high temperature resistance for PCB reflow soldering



E1-TH862TD is a transparent tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and anti-static properties.



Features And Benefits:

1. Resistant high temperature up to 200℃.

2. No residue after removal.

3. Excellent anti-aging ability, long shelf life.



Application:

Masking for thermal sensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.



Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.3± 0.2mil 0.06± 0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 1.1~1.6lbs/in 5~7N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%

Static Discharge

(Removal from roll)

<100V <100V

Maximum Operating Temperature

392℉ 200℃



Construction:

0.025mm ESD Adhesive Tape 2.il Transparent Polyester Tape For PCB Reflow Soldering 0



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Good reputation and after-sales service team.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
