| Brand Name: | KHJ |
| Model Number: | E1-IH826 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 M2/Day |
Polyimide ESD Adhesive Tape
Anti-static polyimide tape-E1-IH826 with super heat resistance and low static discharge at unwind and removal

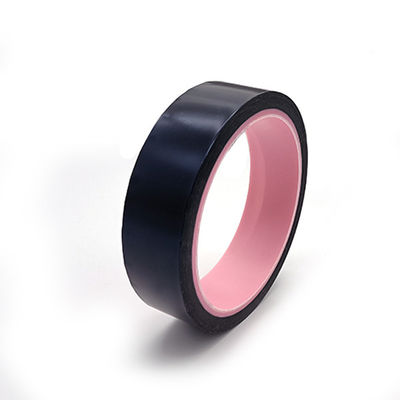

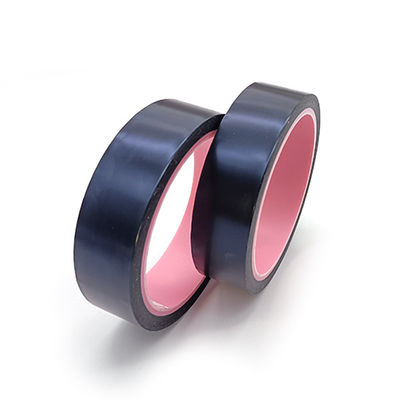

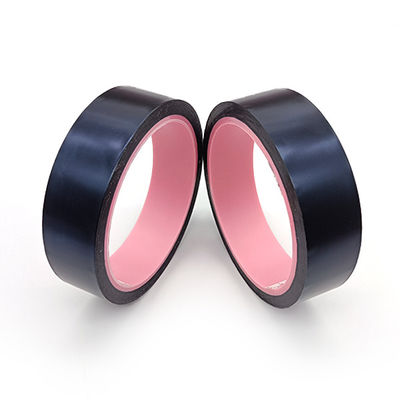

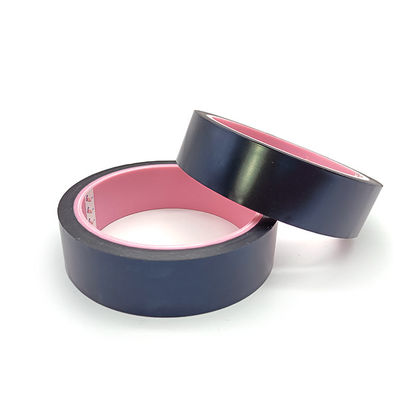

E1-IH826 is a black polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.
Features And Benefits:
1. Low electrostatic discharge at unwind and removal.
2. Resistant high temperature up to 280℃.
3. Excellent tensile strength & Elongation.
4. RoHS Compliant.
ESD Polyimide Tape Application:
Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.
Properties:
| Item | Typical Value |
| Backing | 0.025mm |
| Total Thickness | 0.055±0.005mm |
| Adhesion to Steel | ≥4N/25mm |
| Tensile Strength | ≥2.0(KN/M) |
| Elongation | ≥10% |
| Surface Resistance | 104-109ohms |
| Static Discharge | <100V |
| Operating Temperature | 280℃ |
Construction:
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Accept small orders.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
