Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-F901K
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day

Electronics Packaging Black Anti Static Tape Low Unwinding Voltage Esd Tapes OEM

Description
Product Name: E1-F901K Total Tape Thickness: 0.053±0.005mm
Adhesion To Steel: 12N/25mm Tensile Strength At Break: ≥4(KN/M)
Elongation At Break: ≥90% Holding Power: >100h
High Light:

Esd Black Anti Static Tape

,

ODM Black Anti Static Tape

,

OEM Electronics Esd Tapes

Electronics Packaging Black Anti Static Tape Low Unwinding Voltage Esd Tapes OEM

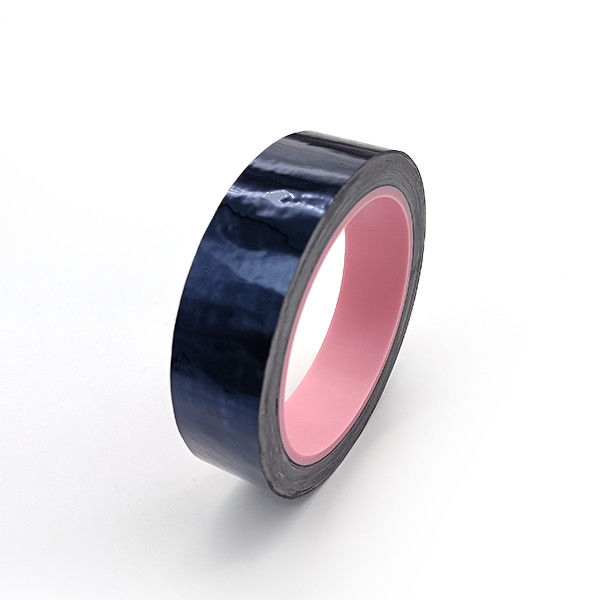

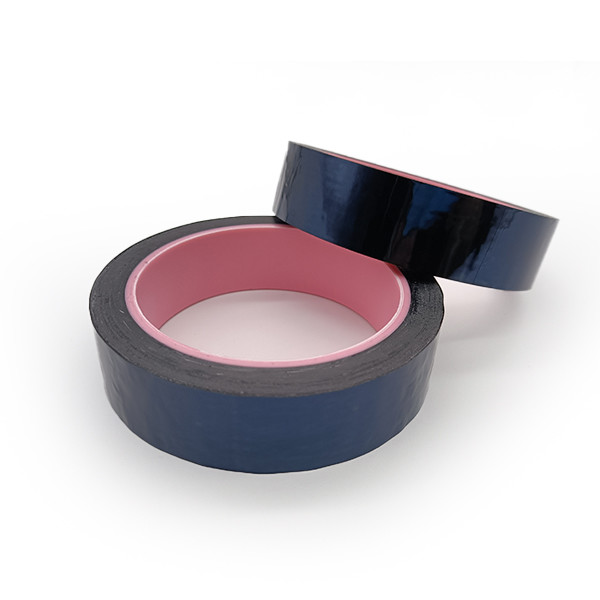

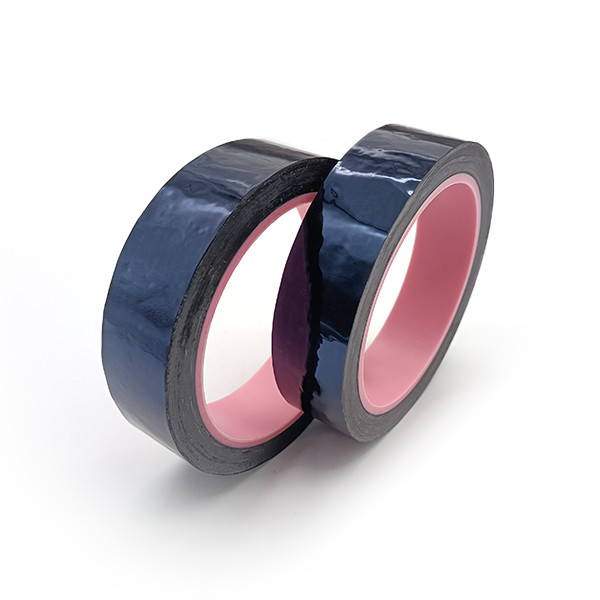

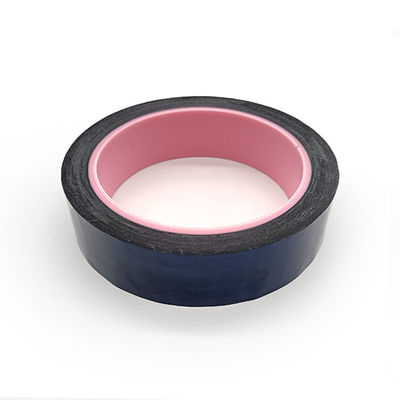

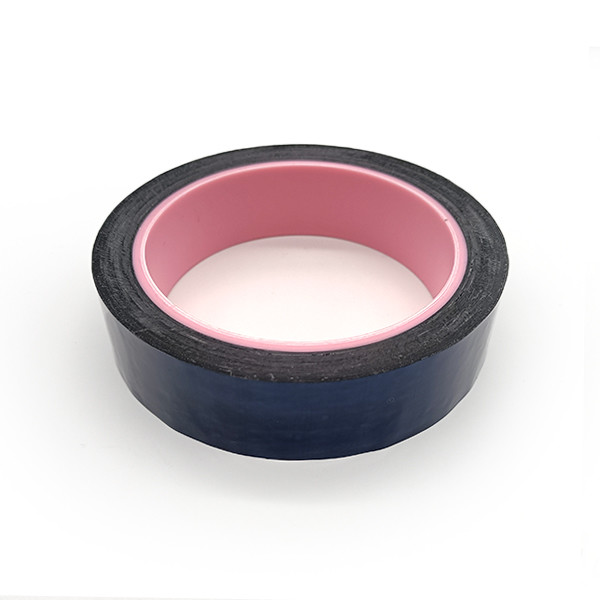

Black ESD tape E1-F901K for bonding, packing, temporary fixing of electronics manufacturing



E1-F901K is a bright black tape coated with acrylic pressure sensitive adhesive on PET surface. It has good adhesion and low unwinding voltage. It is suitable for environments with high anti-static level requirements.



Features And Benefits:

1. Strong adhesion, no residual glue after removal.

2. Excellent anti-static performance.

3. Low unwinding voltage.

4. Excellent tensile properties.



Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.12±0.2mil 0.053±0.005mm
Adhesion to Steel ≥2.74lbs/in ≥12N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 106~8ohms
Static Discharge (Removal from roll) <100V <100V
Holding Power >100h >100h





Construction:

Electronics Packaging Black Anti Static Tape Low Unwinding Voltage Esd Tapes OEM 0



Application:

The product can be applied to various environments with anti-static.Requirements such as fixing, connecting and packaging of electronic manufacturing .It can also be used as temporary bonding.



Storage:

1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2.Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1.Surface should be clean, dry, free of dust, oil or other contaminants.

2.Proper pressure required by roller, hand or press when applying.

3.Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
