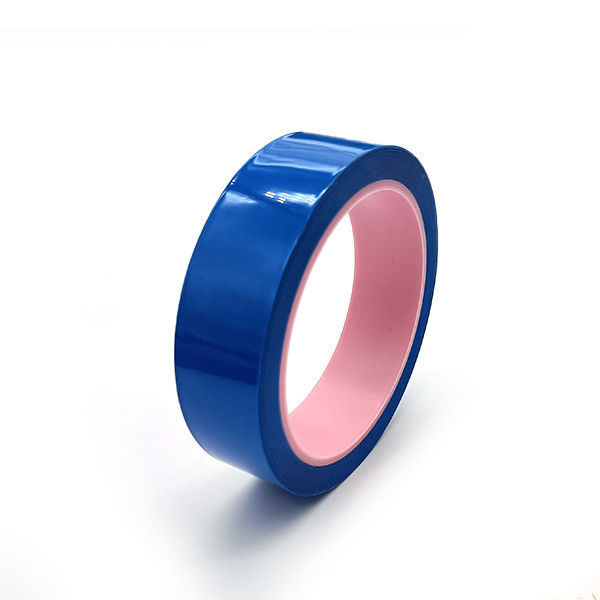

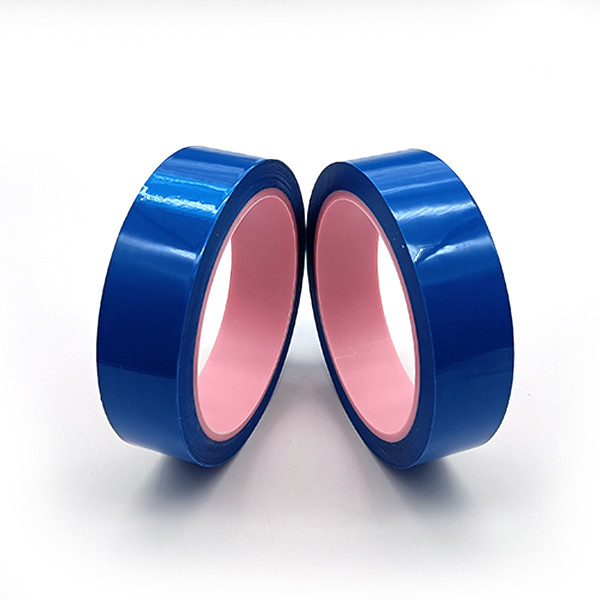

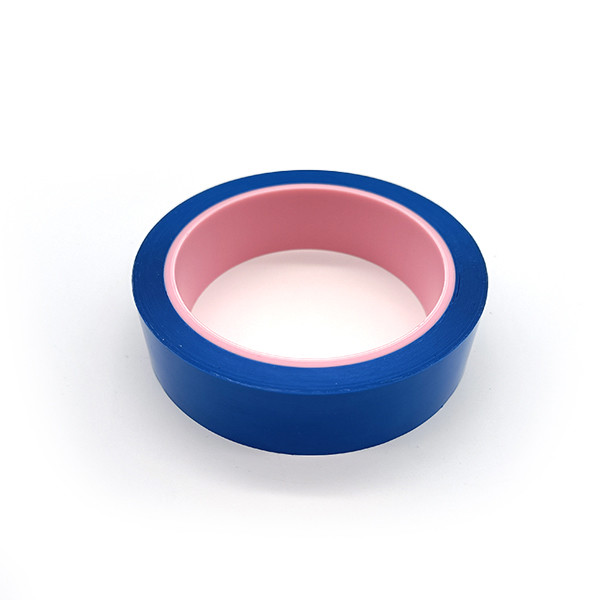

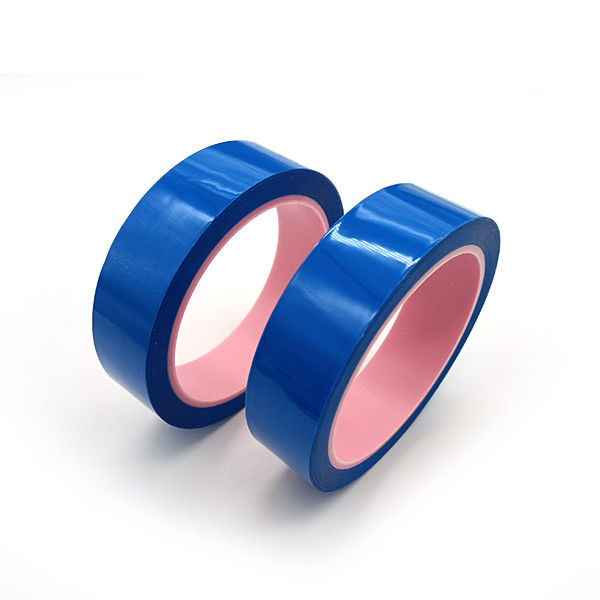

Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion
  • Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion
  • Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion
  • Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion
  • Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion

Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion

Place of Origin China
Brand Name KHJ
Certification CE、ROHS、ISO9001
Model Number E1-F902K
Product Details
Product Name:
E1-F902K
Total Tape Thickness:
0.055±0.005mm
Adhesion To Steel:
15N/25mm
Tensile Strength At Break:
≥4(KN/M)
Elongation At Break:
≥90%
Static Discharge(Removal From Roll):
<100V
High Light:

1.0mil Anti Static Tape

,

ODM Anti Static Tape

,

1.0mil antistatic tape

Product Description

khjkhj emailkhj workshop

Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion



Blue anti-static packing tape E1-F902K with strong adhesion and low peeling voltage



E1-F902K is a blue tape coated with acrylic pressure sensitive adhesive on PET surface. It has good adhesion and low unwinding voltage. It is suitable for environments with high anti-static level requirements.



Anti Static Tape Features And Benefits:

1. Strong adhesion, no residual glue after removal.

2. Excellent anti-static performance. .

3. Low unwinding voltage.

4. Excellent tensile properties.



Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.12±0.2mil 0.055±0.005mm
Adhesion to Steel ≥2.74lbs/in ≥15N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 109~10ohms
Static Discharge (Removal from roll) <100V <100V































Construction:

Low Peeling Voltage Anti Static Tape Blue 1.0mil Backing Strong Adhesion 3



Application:

The product can be applied to various environments with anti-static.Requirements such as fixing, connecting and packaging of electronic Manufacturing .It can also be used as temporary bonding.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.

4. Good reputation and after-sales service team.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
