Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: IH890S
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Supply Ability: 50000 rolls per month
Product Name: |
IH890S |
Adhesion To Steel: |
2-3.5N/25mm |
Tensile Strength At Break: |
≥5KN/M |
Elongation At Break: |
≥45% |
Temperature Resistance:: |
260℃ *5 Mins |
Backing Thickness: |
0.025mm |
Product Name: |
IH890S |
Adhesion To Steel: |
2-3.5N/25mm |
Tensile Strength At Break: |
≥5KN/M |
Elongation At Break: |
≥45% |
Temperature Resistance:: |
260℃ *5 Mins |
Backing Thickness: |
0.025mm |

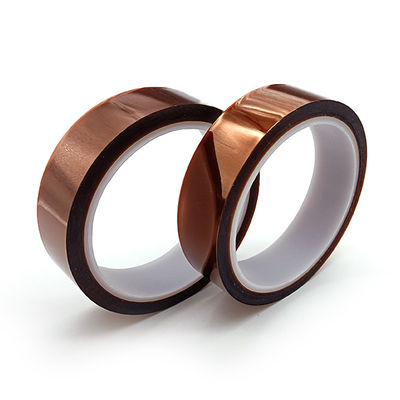

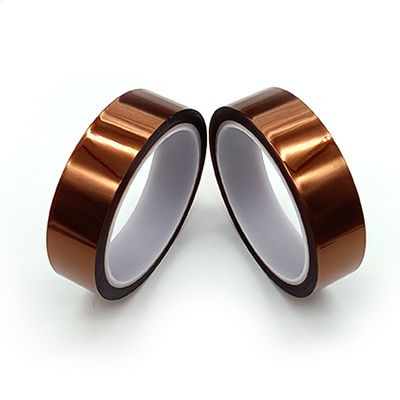

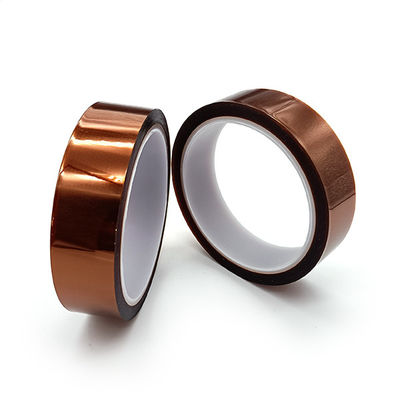

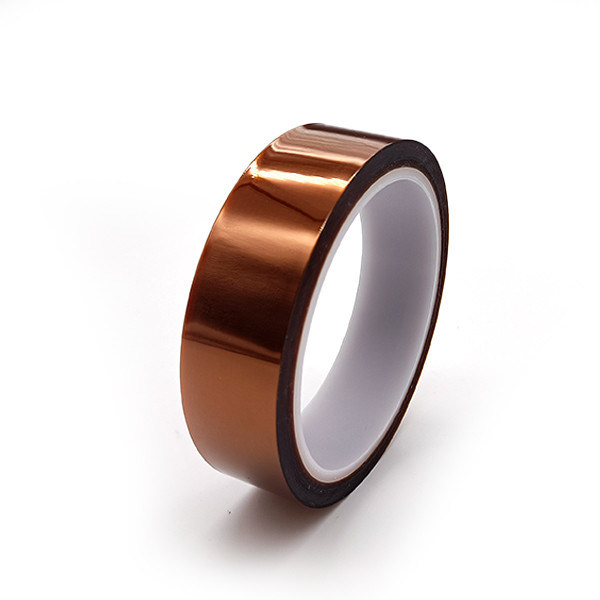

High Temperature Acrylic Adhesive Tape Non Silicone 1.38mil OEM ODM
Non-silicone polyimide film tape IH890S acrylic adhesive high temperature tape
IH890S is a polyimide film backed Acrylic adhesive tape with excellent heatresistance and insulation properties.
Features And Benefits:
1. Resistant high temperature up to 260℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Acrylic Masking Tape Properties:
Item | Typical Value |
Test Method |
|
Imperial | Metric | ||
Backing | 1.0mil | 0.025mm | / |
Total Thickness | 1.38±0.2mil | 0.035±0.005mm | / |
Adhesion to Steel | 0.45~0.79lbs/in | 2~3.5N/25mm | GBT 2792-2014 |
Tensile Strength | ≥28lbs/in | ≥5(KN/M) | GBT 30776-2014 |
Elongation | ≥45% | ≥45% | GBT 30776-2014 |
Maximum Operating Temperature |
500℉ | 260℃*5min | No residue after removal |
Construction:
Application:
Masking or protecting residue sensitive areas on printed circuit boards during high temperature operations such as wave soldering and reflow soldering.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
Why buy from us instead of buying from other suppliers?
1. Advanced production and processing equipment, environmentally friendly and reliable products.
2. Good reputation and after-sales service team.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
