| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KHJ |
| Certification: | RoHS |
| Model Number: | E2-IH823C |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Poly Bag+ Carton |
| Delivery Time: | 1 Week |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 M2/Day |
| Product Name: | E2-IH823C | Adhesion To Steel: | 4～6N/25mm |
|---|---|---|---|
| Total Tape Thickness: | 0.055±0.005mm | Elongation: | ≥10% |
| Static Discharge: | <100V | Maximum Operating Temperature: | 290℃ |
| Highlight: | ESD Polyimide Heat Resistant Tape,2mil Polyimide Heat Resistant Tape,ESD kapton polyimide tape |
||

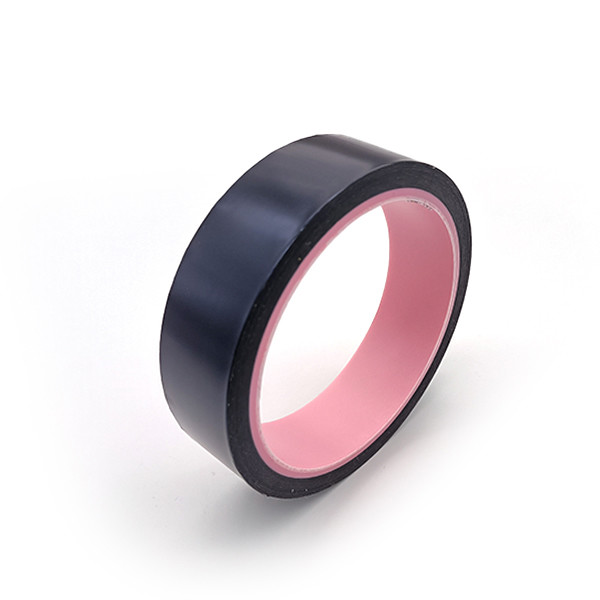

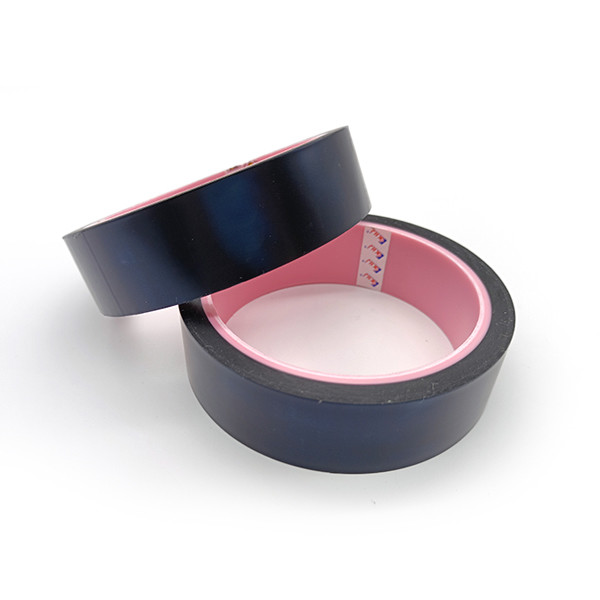

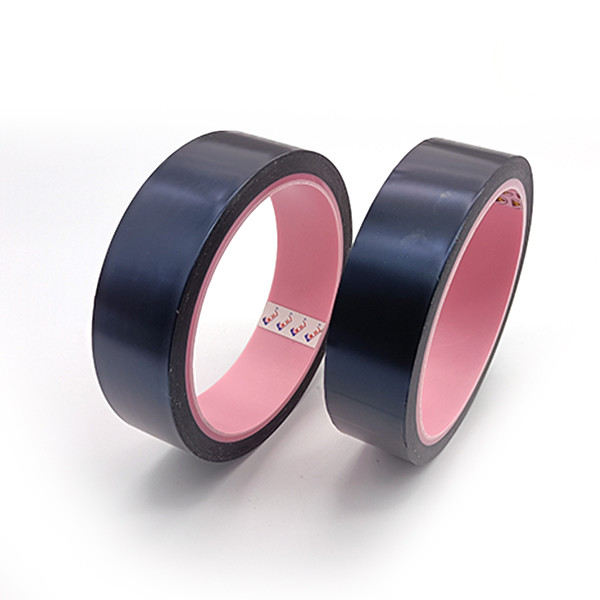

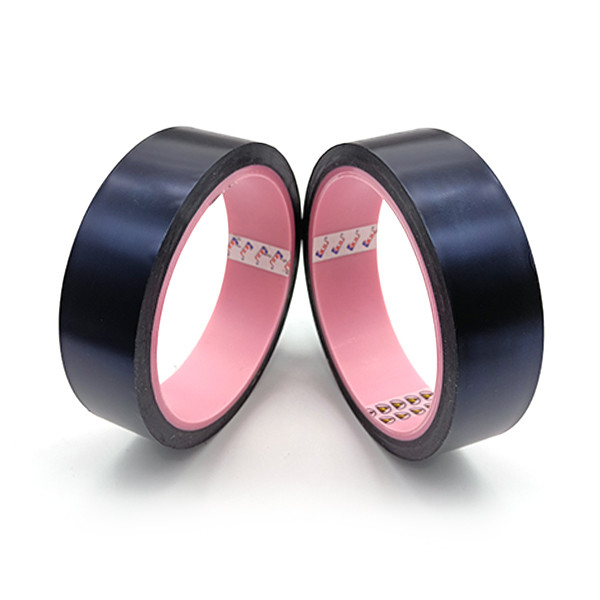

2mil ESD Polyimide Heat Resistant Tape
2mils ESD High Temperature Resistant PI Tape E2-IH823C Polyimide Heat Resistant Adhesive Tape With Good Heating Resistance and low static
E2-IH823C is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.
Features And Benefits:
1. Low electrostatic discharge at unwind and removal.
2. Resistant high temperature up to 290℃.
3. Excellent tensile strength & Elongation.
4. RoHS Compliant
Properties:
| Item kapton polyimide tape | Typical Value |
| Backing | 0.025mm |
| Total Thickness | 0.050±0.005mm |
| Adhesion to Steel | 4-6N/25mm |
| Tensile Strength | ≥2(KN/M) |
| Elongation | ≥10% |
| Surface Resistance | 106-9ohms |
| Static Discharge | <100V |
| Operating Temperature | 290℃ |
Construction:
Application:
Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
