2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass

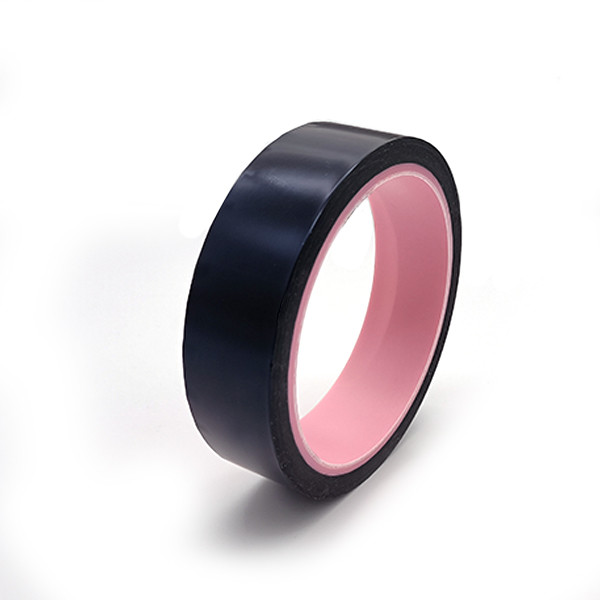

  • 2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass

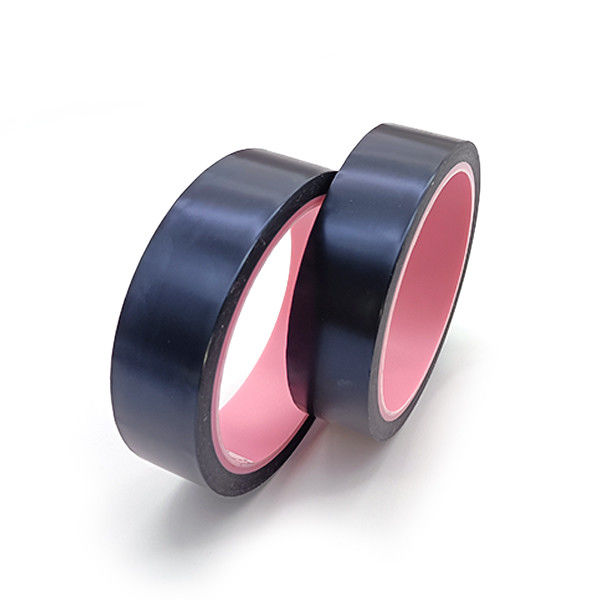

  • 2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass

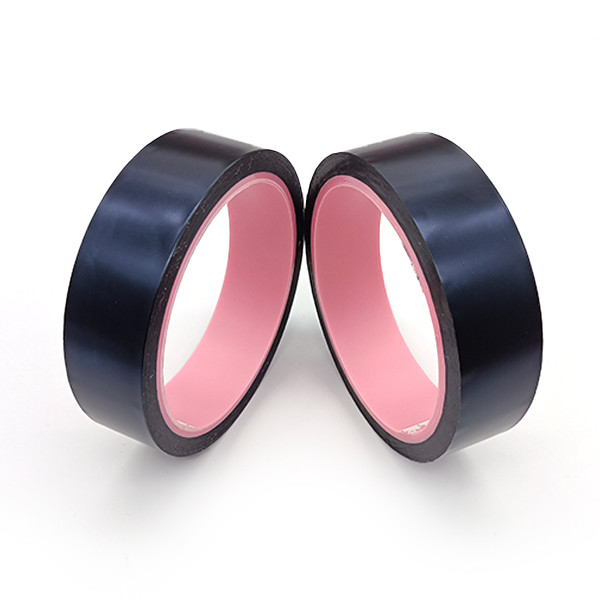

  • 2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass

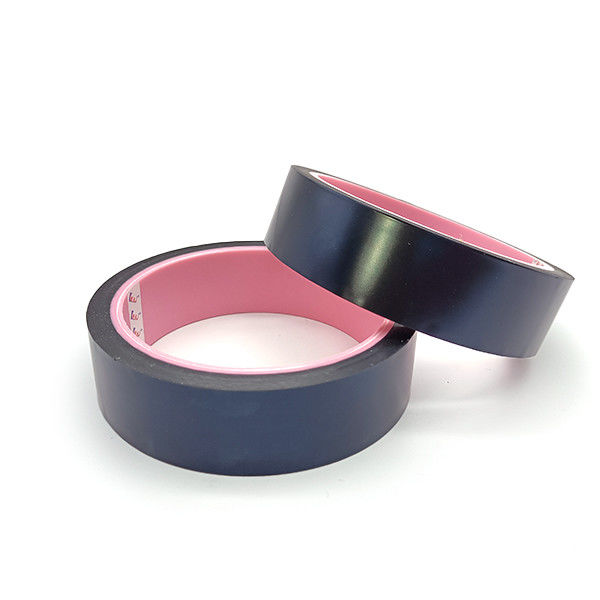

  • 2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass

2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number E1-IH826
Product Details
Product Name:
E1-IH826
Backing Thickness:
0.025mm
Total Tape Thickness:
0.055±0.005mm
Tensile Strength At Break:
≥2(KN/M)
Elongation At Break:
≥10%
Static Discharge (Removal From Roll):
<100V
High Light:

ESD Polyimide Heat Resistant Tape

,

2.5mil Polyimide Heat Resistant Tape

,

2.5mil polyimide film tape

Product Description

khjkhj emailkhj workshop

2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass



Competitive 2.5mils black ESD PI tape E1-IH826 polyimide heat resistant adhesive tape with good heating resistance and low static



E1-IH826 is a black polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 280℃.

3. Excellent tensile strength & Elongation.

4. Die-cutting and formed any shape for general masking.

5. RoHS Compliant.



Polyimide Heat Resistant Tape Properties:

Item polyimide film tape Typical Value Test Method
Backing 0.025mm /
Total Thickness 0.055±0.005mm /
Adhesion to Steel ≥4N/25mm GBT 2792-2014
Tensile Strength ≥2.0(KN/M) GBT 30776-2014
Elongation ≥10%
Surface Resistance 104-109ohms /
Static Discharge <100V /
Operating Temperature 280℃

5min

Testing to Stainless steel plate































Construction:

2.5mil Black ESD Polyimide Heat Resistant Tape For Oven Glass 3

Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.

4. Good production capacity and fast delivery.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
