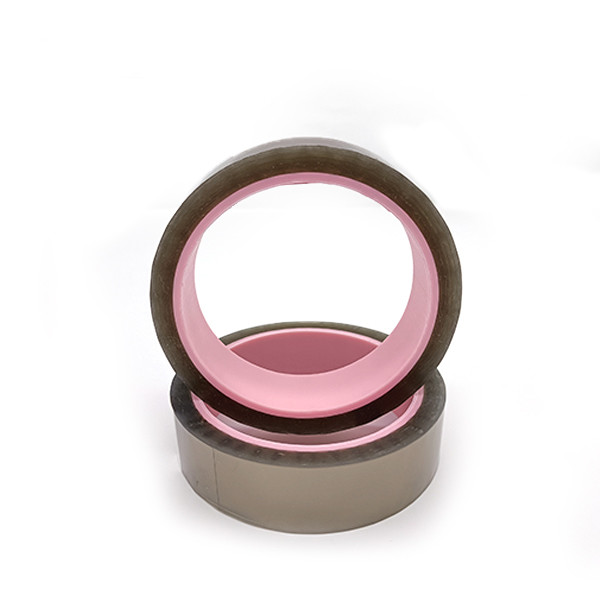

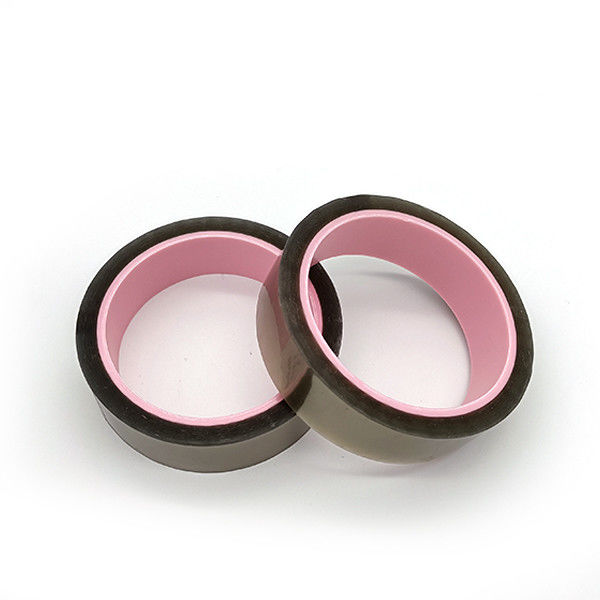

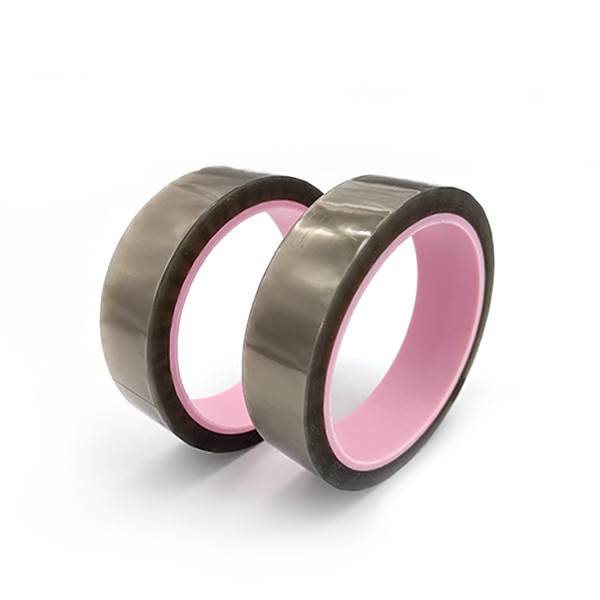

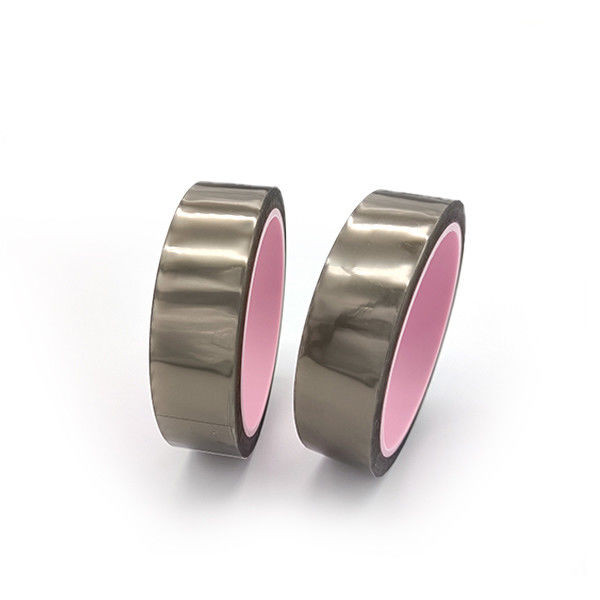

Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering
  • Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering
  • Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering
  • Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering
  • Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering

Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number E1-TH862TD
Product Details
Product Name:
E1-TH862TD
Backing Thickness:
0.025mm
Total Tape Thickness:
0.06±0.005mm
Maximum Operating Temperature:
200℃
Static Discharge (Removal From Roll):
<100V
Elongation At Break::
≥90%
High Light:

2.il Polyester Electrical Tape

,

2.il polyester elastic tape

,

2.il pet adhesive tape

Product Description

khjkhj emailkhj workshop

Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering



High temperature anti-static polyester masking tape E1-TH862TD for reflow soldering process



E1-TH862TD is a tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and anti-static properties.



Features And Benefits:

1. Resistant high temperature up to 200℃.

2. No residue after removal.

3. Excellent anti-aging ability, long shelf life.



Application:

Masking for thermal sensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.



Polyester Electrical Tape Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.3± 0.2mil 0.06± 0.005mm
Tack / ≥26(J.DOW/#)
Adhesion to Steel 1.1~1.6lbs/in 5~7N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%

Static Discharge

(Removal from roll)

<100V <100V

Maximum Operating

Temperature

392℉ 200℃



Construction:

Heat Resistant Polyester Electrical Tape 2.il For Reflow Soldering 3



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
