Product Details
Place of Origin: China
Brand Name: KHJ
Certification: CE、ROHS、ISO9001
Model Number: E2-AF128S
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E2-AF128S |
Product Name: |
E2-AF128S |

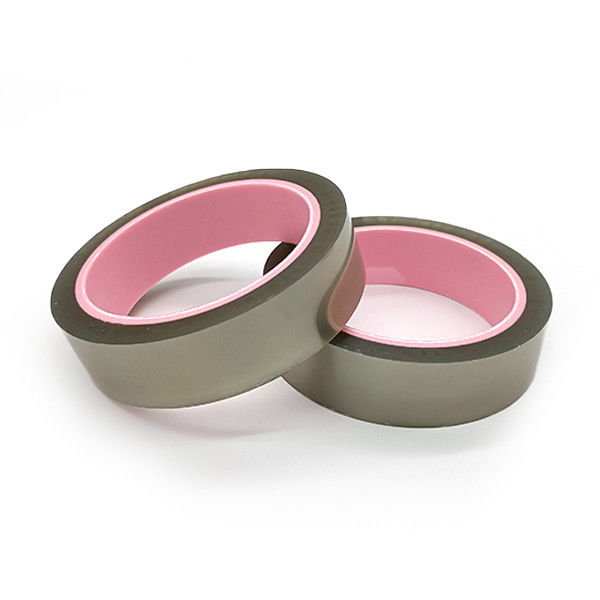

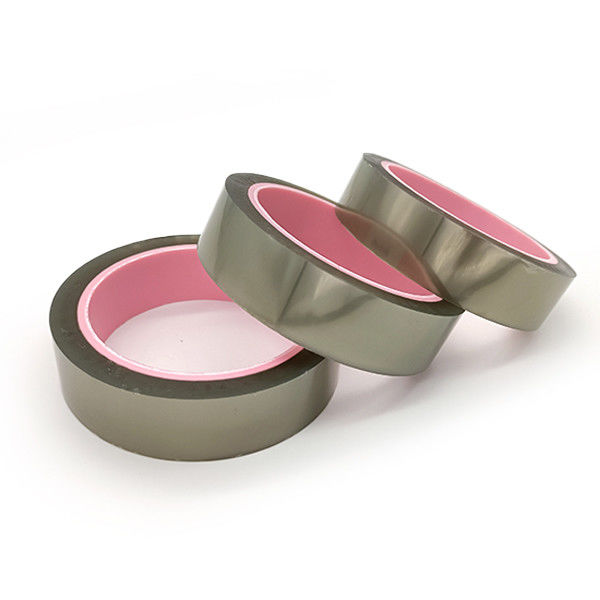

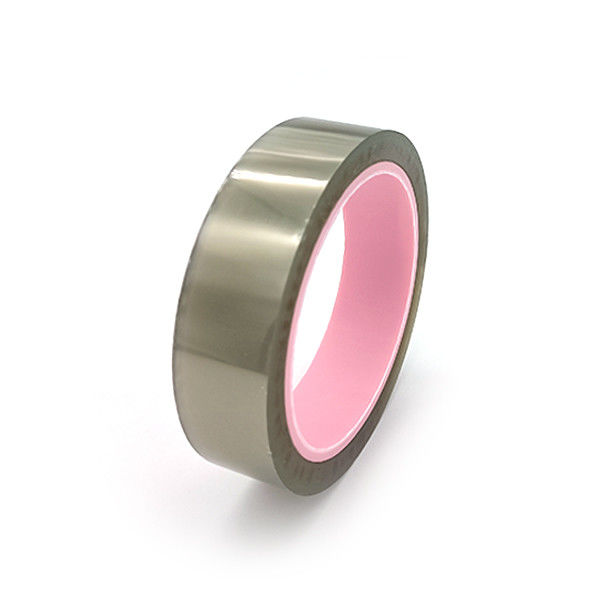

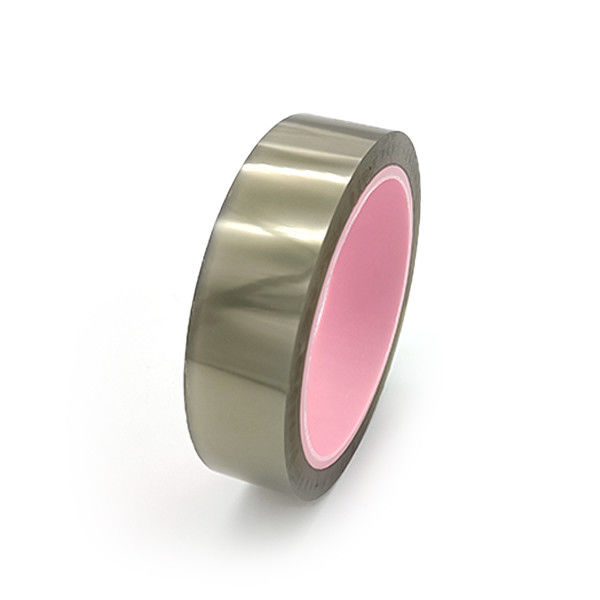

Bonding Protection Polyester Acrylic Tape Esd Anti Static Strong Double Sided Tape 0.045mm
Double-side anti-static E2-AF128S bonding protection acrylic polyester tape
E2-AF128S is a transparent double-side anti-static acrylic tape with good adherent (no residue after removal from surface of object), good ESD performance.
Features And Benefits:
1. Excellent tensile strength & Elongation.
2. RoHS standard.
3. Low adhesion, no adhesive residue.
Application:
For bonding, protection during electronic product production, or for temporary fixing.
Properties:
| Test item | Units | Test values | Test method |
| Backing Thickness: | mm | 0.020 | |
| Total Tape Thickness: | mm | 0.045±0.005 | |
| Adhesion to Steel | N/25mm | 3 ~ 4 | GBT 2972-2014 |
| Tensile Strength at Break: | KN/M | ≥2 | GBT 30776-2014 |
| Elongation at Break: | % | ＞70 | GBT 30776-2014 |
| Static Discharge (Removal from roll) | Volts | < 50 | |
| Surface resistance (Back side) | Ohms | 10 6-9 | |
| Surface resistance (Glue side) | Ohms | 10 7-11 |
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Environmentally friendly products.
2. Accept small orders.
3. Good production capacity and fast delivery.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
