Product Details:
|
| Product Name: | E1-F921B | Backing Thickness: | 0. 025mm |
|---|---|---|---|
| Total Tape Thickness: | 0.045±0.005mm | Adhesion To Steel: | 15N/25mm |
| Elongation: | ≥90% | Static Discharge (Removal From Roll): | ＜100V |
| High Light: | 0.045mm Self Bonding Tape,0.045mm Bonding Tape,ODM Bonding Tape |
||

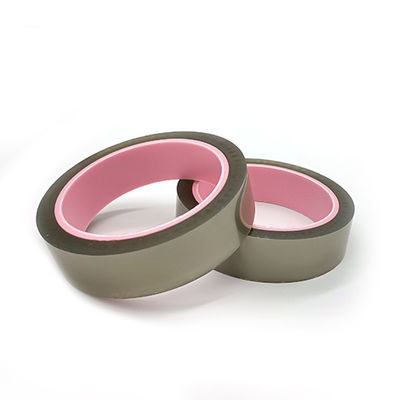

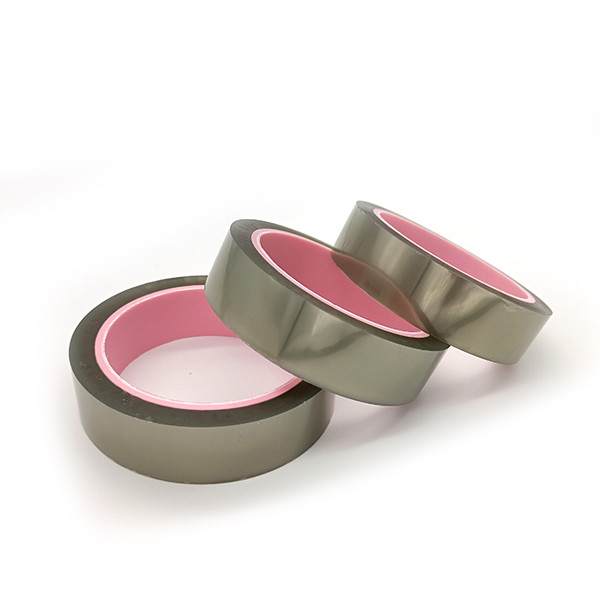

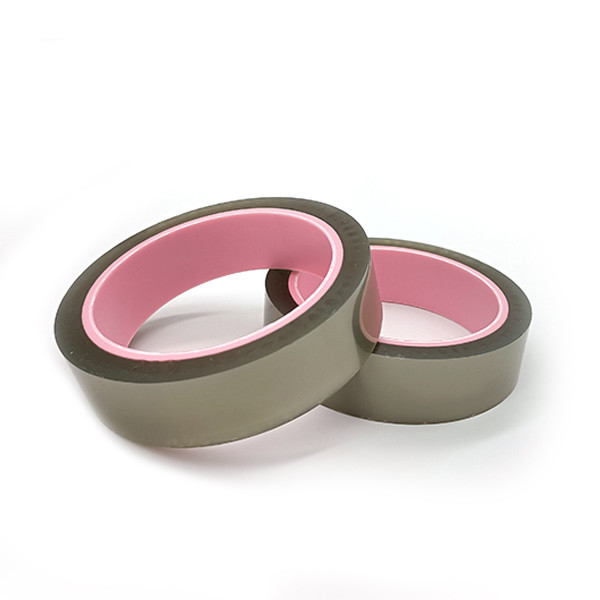

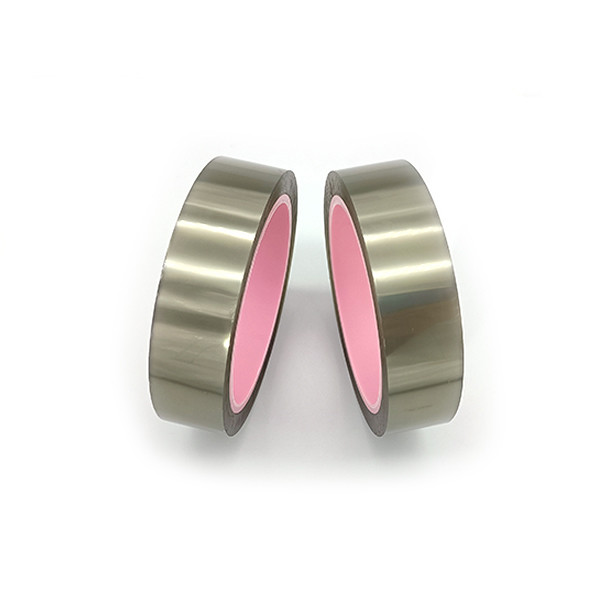

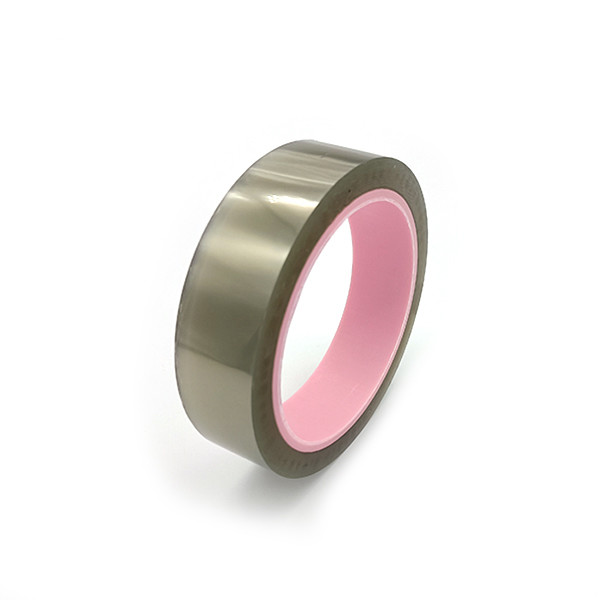

Anti Static Transparent Self Bonding Tape 0.045mm Acrylic Pressure Sensitive Adhesive
Anti-static transparent tape E1-F921B with acrylic pressure sensitive adhesive
E1-F921B is a transparent tape coated with acrylic pressure sensitive adhesive on the surface of PET film. It has good adhesion.
Features And Benefits:
1. Strong adhesion, no residual glue after removal.
2. Low electrostatic discharge at unwind.
3. Excellent antistatic performance.
4. RoHS Compliant.
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 1.8±0.2mil | 0.045±0.005mm |
| Adhesion to Steel | 3.5lbs/in | 15N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
| Surface Resistance | 10 6~8 ohms | 10 6~8 ohms |
|
Static Discharge (Removal from roll) |
<100V | <100V |

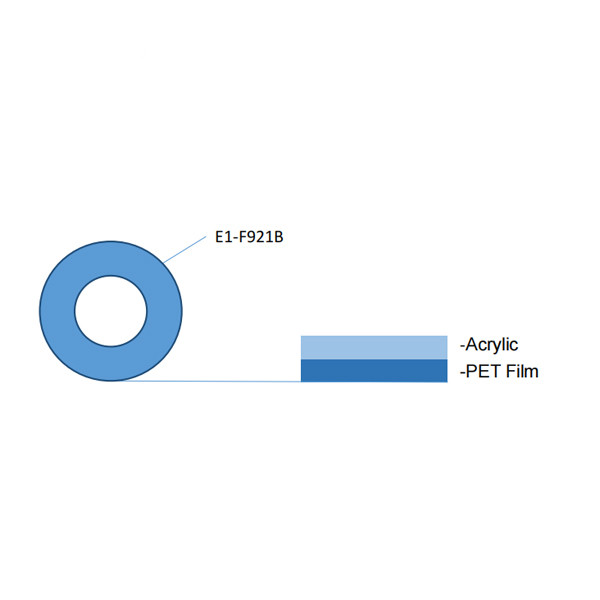

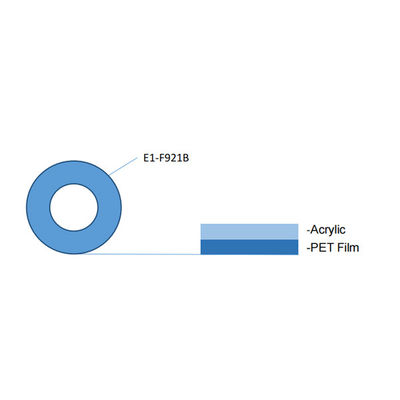

Construction:
Application:
The product can be applied to various environments with anti- static requirements, such as fixing,connecting and packaging of electronic manufacturing.It can also be used as temporary bonding and electronic packaging.
Storage:
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
