Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-B82IB
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day
Product Name: |
E2-B82IB |
Backing Thickness: |
0.025mm±0.003 |
Thermal Conductivity（w/mk）: |
0.2±0.05 |
Transmittance（%）: |
0 |
Tensile Strength At Break: |
>80（KN/M） |
Upmost Temperature: |
260℃ |
Product Name: |
E2-B82IB |
Backing Thickness: |
0.025mm±0.003 |
Thermal Conductivity（w/mk）: |
0.2±0.05 |
Transmittance（%）: |
0 |
Tensile Strength At Break: |
>80（KN/M） |
Upmost Temperature: |
260℃ |

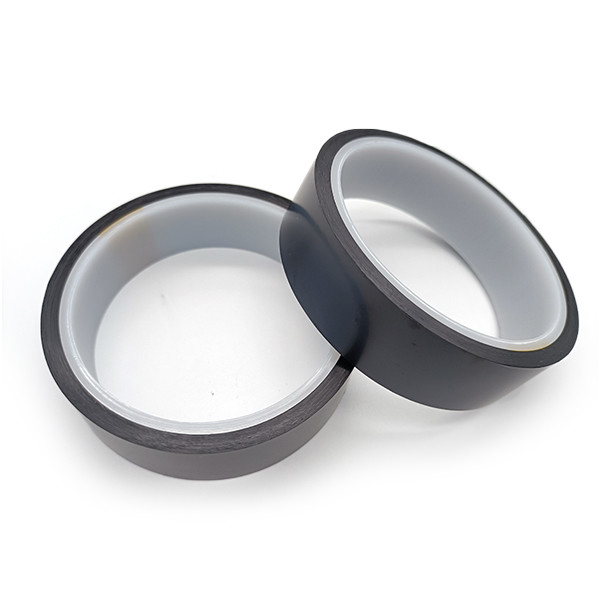

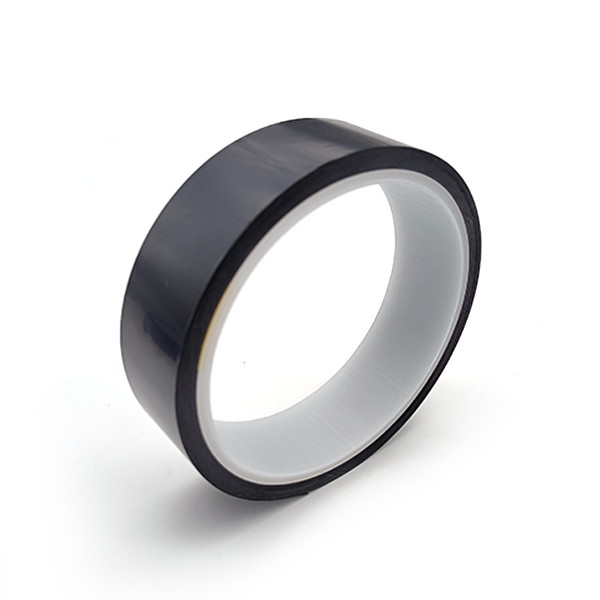

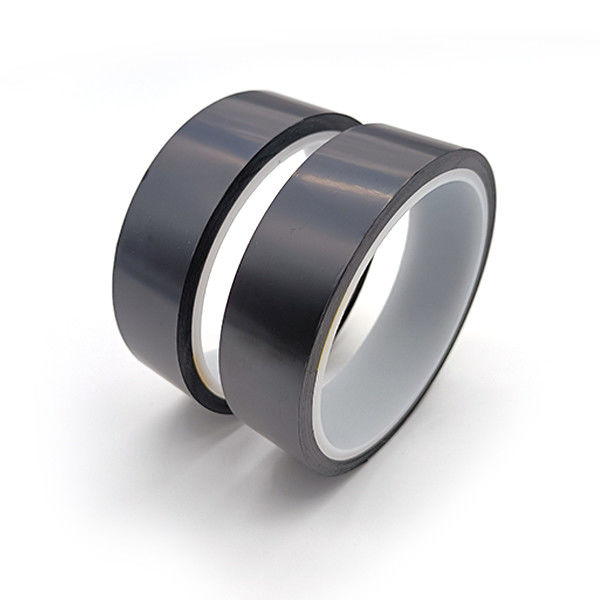

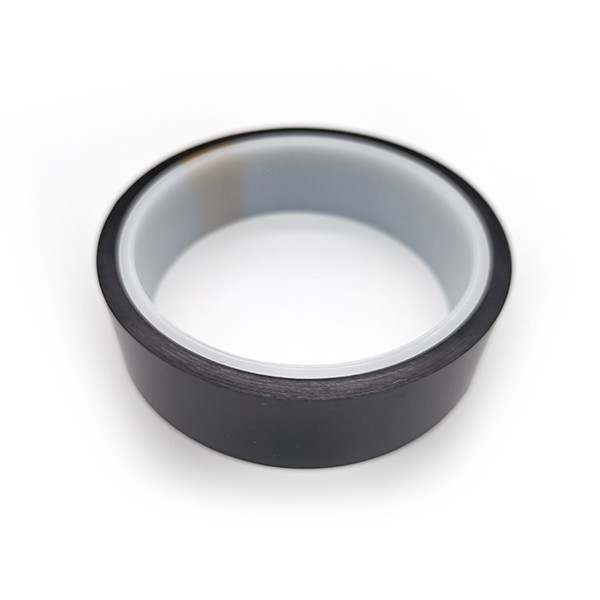

Black Thermal Conductivity Heat Resistant Adhesive Tape ESD Polyimide Film
Black thermal conductivity bonding tape- E2-B82IB heat resistant tape with excellent thermal conductivity and ESD
E2-B82IB is a black low static polyimide film , which not only has good anti-static properties on both sides, but also has high temperature resistance.
Features And Benefits:
1. Excellent Double sides anti-static performance.
2. Excellent thermal conductivity and protection of components.
3. RoHS Compliant.
Properties:
| Item extreme heat resistant tape | Test Value | Test Method | |
| Color | Surface | Matt black | Visual inspection |
| Inside | Glossy black | Visual inspection | |
| Backing thickness (μm) | 25±3 | Micrometer | |
| Surface resistance(ohms) | Both face | 104-9 | Surface impedance meter |
| Thermal Conductivity(w/mk) | 0.2±0.05 | Thermal conductivity tester | |
| Transmittance(%) | 0 | ||
| Tensile Strength(MPa) | >80 | GBT 30776-2014 | |
| Elongation(%) | >20 | ||
| Upmost using Temperature(℃) | 260℃ | JG/T25-2017 | |
Construction:
Application:
Typical applications, widely used for buffer protection under various high and low temperature conditions, such as high temperature welding of flexible boards.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 6 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. The product should be far away from heat and fire sources;
2. Surface should be clean, dry, free of dust, oil or other contaminants.
3. The product should be kept in the original packaging and stored in a cool and dry environment, away from direct sunlight.
Competitive advantages of our factory:
1. Environmentally friendly products.
2. Various designs.
3. Accept small orders.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
Notes:
Please note that this technical data sheet is only compiled based on our laboratory tests and experience. It is the customer's responsibility to determine whether the product is suitable for the intended application before it is approved for use.
