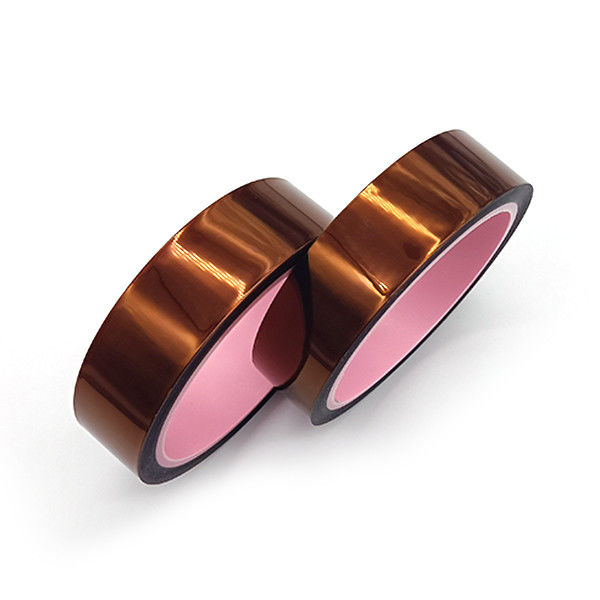

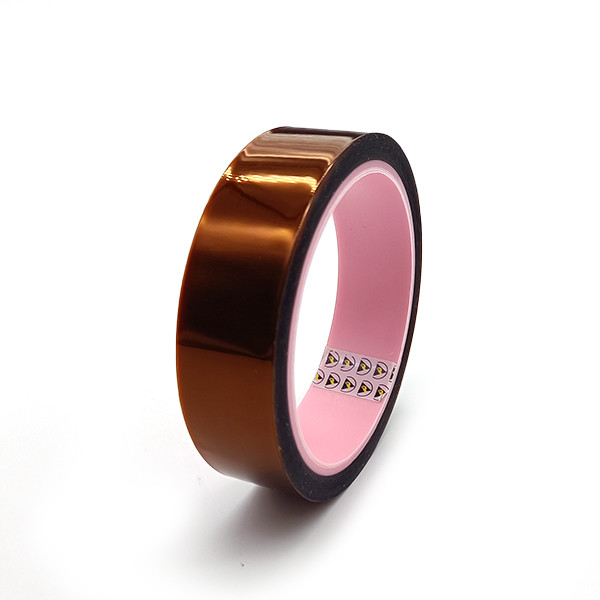

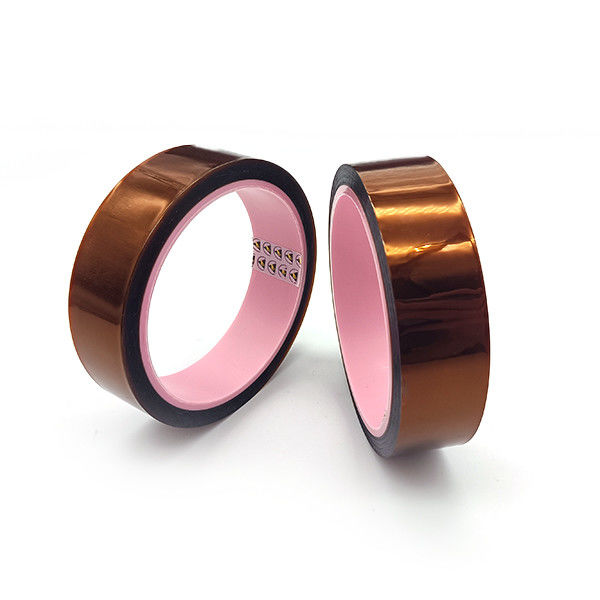

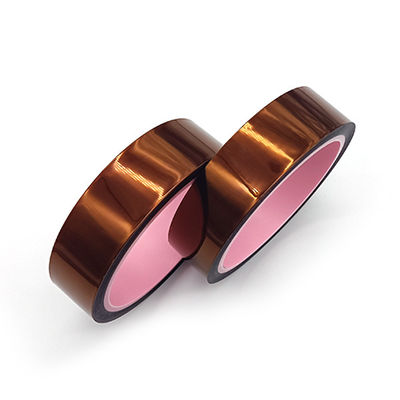

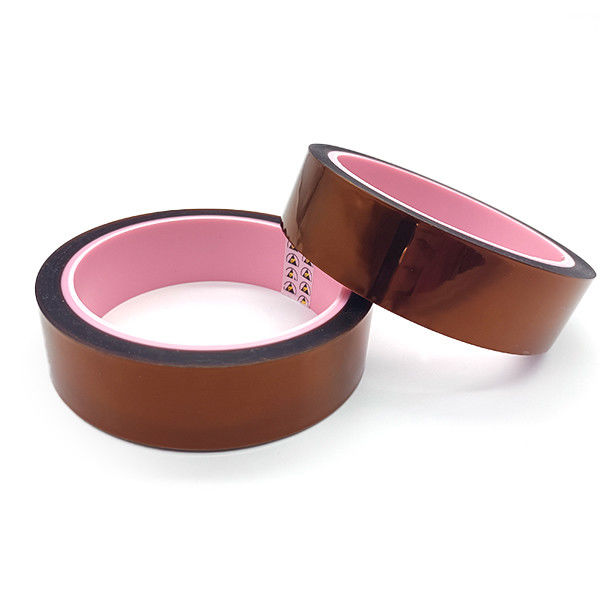

QFN Masking Polyimide Adhesive Tape Heat Resistant RoHS Approved

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: IH810A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: 3~5days after payment done

Payment Terms: L/C, T/T

Supply Ability: 10000 square meters/day

Get Best Price
Contact Now
Specifications
Highlight:

QFN Polyimide Adhesive Tape

,

Masking Polyimide Adhesive Tape

,

QFN kapton polyimide tape

Product Name:
IH810A
Backing Thickness:
0.025mm
Total Tape Thickness:
0.031±0.005mm
Adhesion To Steel:
4~6N/25mm
Elongation At Break:
≥45%
Upmost Temperature:
260℃
Product Name:
IH810A
Backing Thickness:
0.025mm
Total Tape Thickness:
0.031±0.005mm
Adhesion To Steel:
4~6N/25mm
Elongation At Break:
≥45%
Upmost Temperature:
260℃
Description
QFN Masking Polyimide Adhesive Tape Heat Resistant RoHS Approved



QFN Masking Polyimide Adhesive Tape Heat Resistant RoHS Approved



QFN masking polyimide tape-IH810A polyimide heat resistant tape with excellent heat resistant and no residue after using



IH810A is a polyimide film backed silicone adhesive tape with excellent heat resistance and insulation properties.



Features And Benefits:

1. Electrical insulation and clean removal without residue.

2. Resistant high temperature up to 260℃ for 10 minutes.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Application:

1. High-temperature shielding protection for different packaging processes, and temporary fixing in high-temperature process.

2. suitable for surface protection after removal of non-residual glue after high temperature use.



Properties:

Product Polyimide Adhesive Tape Units Test values
Backing Thickness: mm 0.025±0.003
Total Tape Thickness: mm 0.031±0.005
Release Liner thickness mm 0.075±0.003
Adhesion to Steel: N/25mm 0.6±0.2
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 260
Dielectric Strength Voltage >4000V



Construction:

QFN Masking Polyimide Adhesive Tape Heat Resistant RoHS Approved 0



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
