|Product Name:||TS630A||Total Tape Thickness:||0.160±0.005mm|
|Backing Thickness:||0.100 ±0.002 Mm||Color:||Blue|
|Elongation At Break:||≥45%||Adhesion To Steel:||Before Heating: 0.5N/25mm; After Heating: 0 N/25mm|
0.16mm Thermal Conductive Tape,
RoHS Thermal Conductive Tape,
0.16mm heat conductive tape

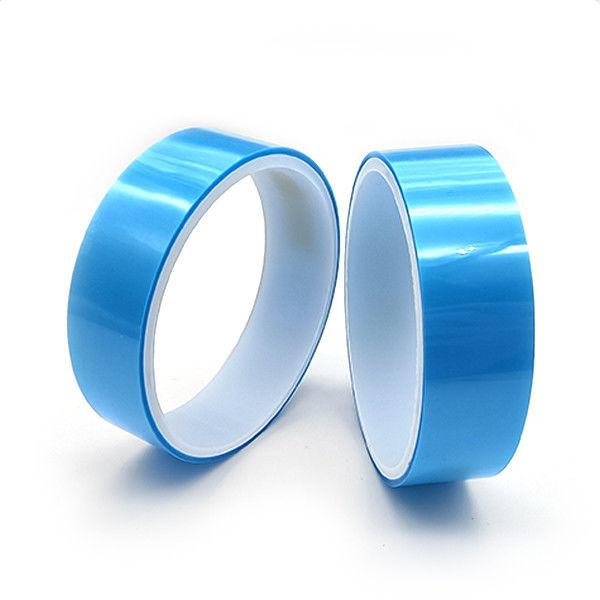

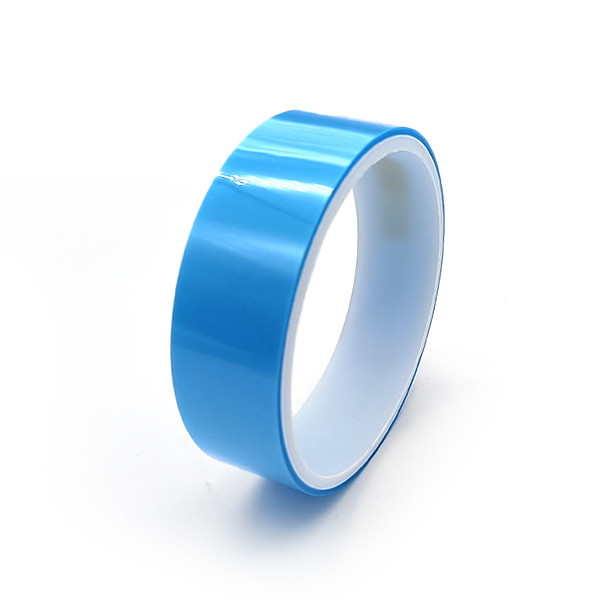

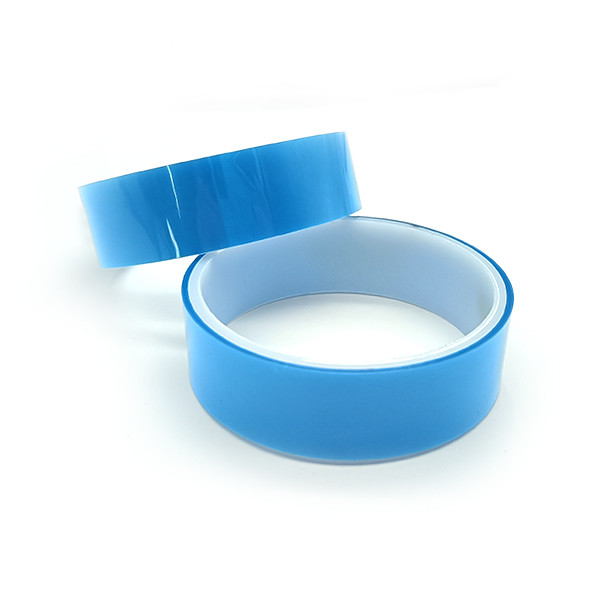

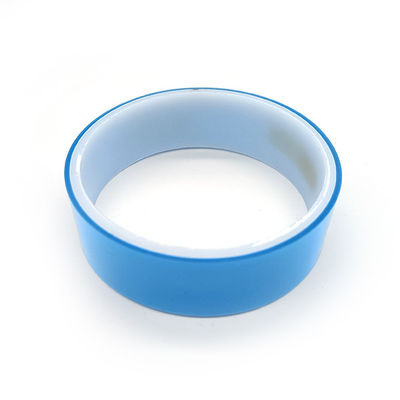

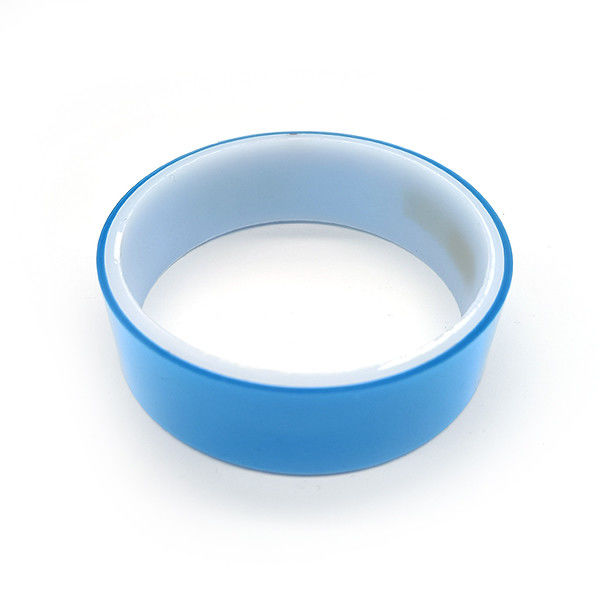

Electronic Component Thermal Conductive Tape 0.16mm Blue Polyester Film
Blue polyester film backed pressure-sensitive adhesive tape TS630A for electronic component processing
TS630A is a blue polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(125-135℃).
Features And Benefits:
1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.
2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.
3. Provides a high processing accuracy since substrates are kept in a fixed position.
4. Three types (rolls, labelers and sheets) are available.
5. Environmentally friendly since no cleaning is required for substrates.
TS630A is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.
|Item||Typical Value||Test Method|
|Tensile Strength||≥3.5(KN/M)||GBT 30776-2014|
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Good reputation and after-sales service team.
4. Good production capacity and fast delivery.
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
