Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: TS630HV
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Application: |
Dicing MLCC,dicing Inductance,dicing Chip |
Product Name: |
TS630HV |
Total Tape Thickness: |
0.135±0.005mm |
Backing Thickness: |
0.075 ±0.002 Mm |
Tack: |
≥12(J.DOW/#) |
Color: |
Blue |
Elongation At Break: |
≥120% |
Application: |
Dicing MLCC,dicing Inductance,dicing Chip |
Product Name: |
TS630HV |
Total Tape Thickness: |
0.135±0.005mm |
Backing Thickness: |
0.075 ±0.002 Mm |
Tack: |
≥12(J.DOW/#) |
Color: |
Blue |
Elongation At Break: |
≥120% |

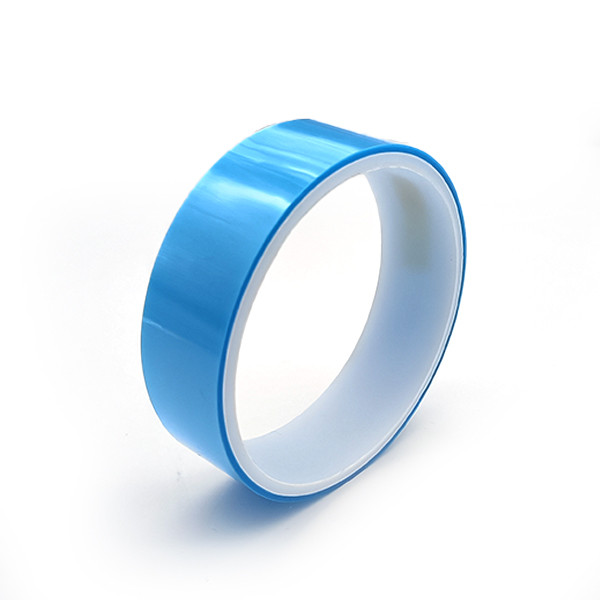

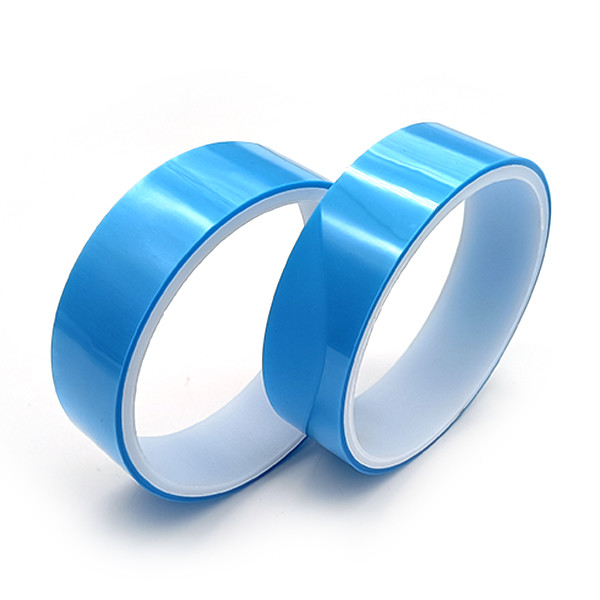

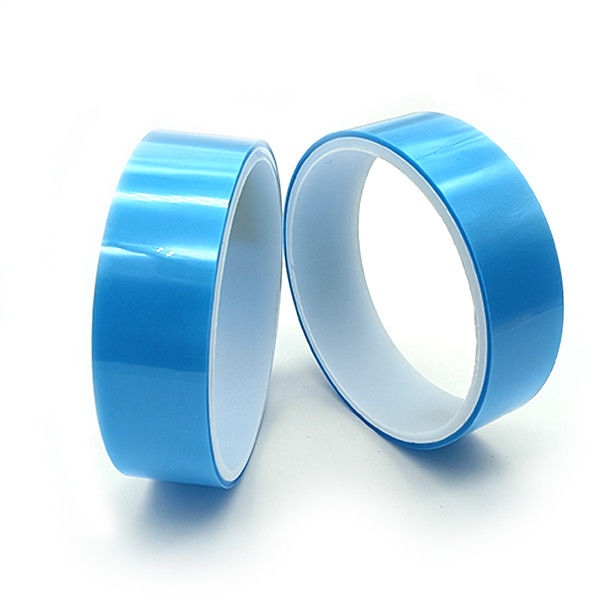

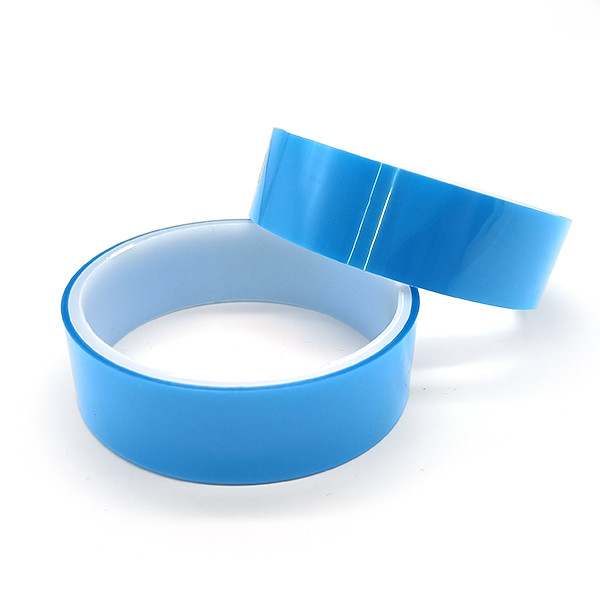

Single Sided Coated Heat Release Tape 0.135mm Polyester Film Backed
Polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape TS630HV
TS630HV is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(145℃).
Features And Benefits:
1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.
2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.
3. Provides a high processing accuracy since substrates are kept in a fixed position.
4. Three types (rolls, labelers and sheets) are available.
5. Environmentally friendly since no cleaning is required for substrates.
Properties:
| Item | Typical Value | Test Method | |||||
| Metric | |||||||
| Backing | 0.075mm | / | |||||
| Total Thickness | 0.135±0.005mm | / | |||||
| Tack | ≥12(J.DOW/#) | / | |||||
| Adhesion | Before heating | ≥25N/25mm |
GBT 2792-2014 |
||||
| After heating | 0 | ||||||
| Tensile Strength | ≥105(KN/M) | GBT 30776-2014 | |||||
| Elongation | ≥120% | GBT 30776-2014 | |||||
Construction:
Application:
TS630HV is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
