Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-IH823C
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Supply Ability: 10000 M2/Day
Product Name: |
E2-IH823C |
Adhesion To Steel: |
4～6N/25mm |
Total Tape Thickness: |
0.055±0.005mm |
Tensile Strength At Break: |
≥2（KN/M） |
Static Discharge: |
<100V |
Maximum Operating Temperature: |
290℃ |
Product Name: |
E2-IH823C |
Adhesion To Steel: |
4～6N/25mm |
Total Tape Thickness: |
0.055±0.005mm |
Tensile Strength At Break: |
≥2（KN/M） |
Static Discharge: |
<100V |
Maximum Operating Temperature: |
290℃ |

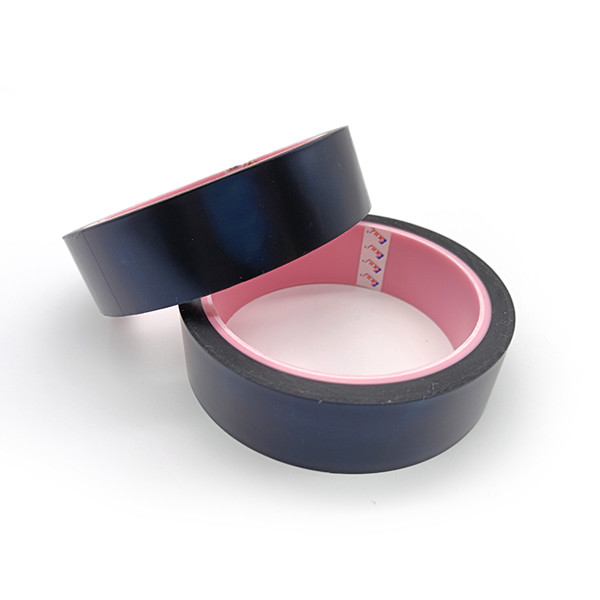

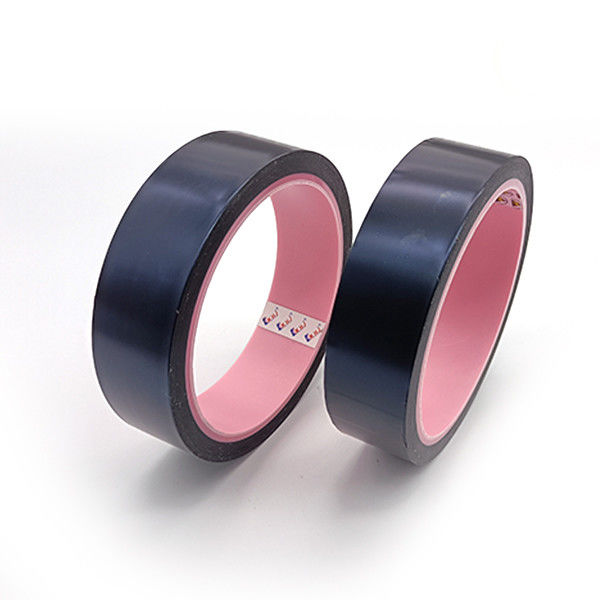

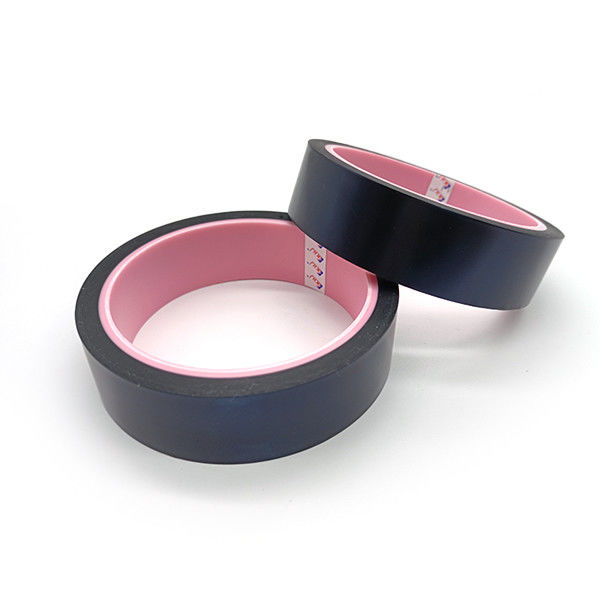

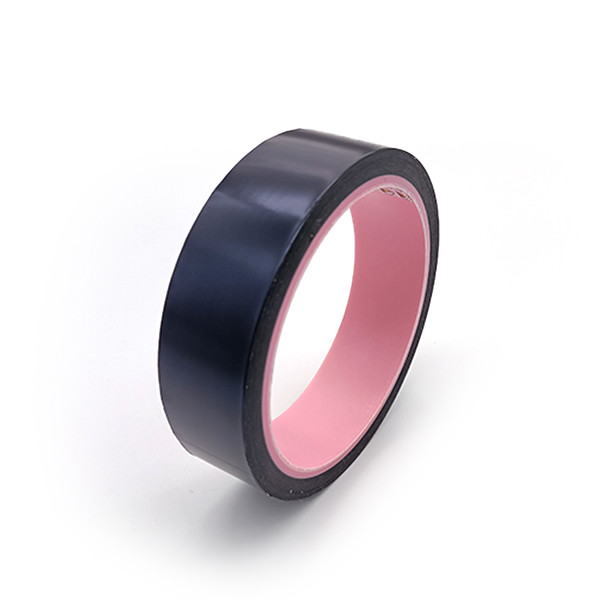

Heat Resistance Silicone Masking Tape Polyimide Film Backed 0.05mm
Polyimide film-backed silicone adhesive tape E2-IH823C with super heat resistance
E2-IH823C is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.
Features And Benefits:
1. Low electrostatic discharge at unwind and removal.
2. Resistant high temperature up to 290℃.
3. Excellent tensile strength & Elongation.
4. RoHS Compliant
Silicone Masking Tape Properties:
| Item | Typical Value |
| Backing | 0.025mm |
| Total Thickness | 0.050±0.005mm |
| Adhesion to Steel | 4-6N/25mm |
| Tensile Strength | ≥2(KN/M) |
| Elongation | ≥10% |
| Surface Resistance | 106-9ohms |
| Static Discharge | <100V |
| Operating Temperature | 290℃ |
Construction:
Application:
Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.,
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
