Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface
  • Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface
  • Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface
  • Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface
  • Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface

Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface

Place of Origin China
Brand Name KHJ
Certification CE、ROHS、ISO9001
Model Number E1-F902K
Product Details
Product Name:
E1-F902K
Total Tape Thickness:
0.055±0.005mm
Adhesion To Steel:
15N/25mm
Color:
Blue
Elongation At Break:
≥90%
Static Discharge(Removal From Roll):
<100V
High Light:

Blue ESD Adhesive Tape

,

PET ESD Adhesive Tape

,

Blue ESD Anti Static Tapes

Product Description

khjkhj emailkhj workshop

Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface



Blue Anti-static packing tape E1-F902K with excellent anti-static performance

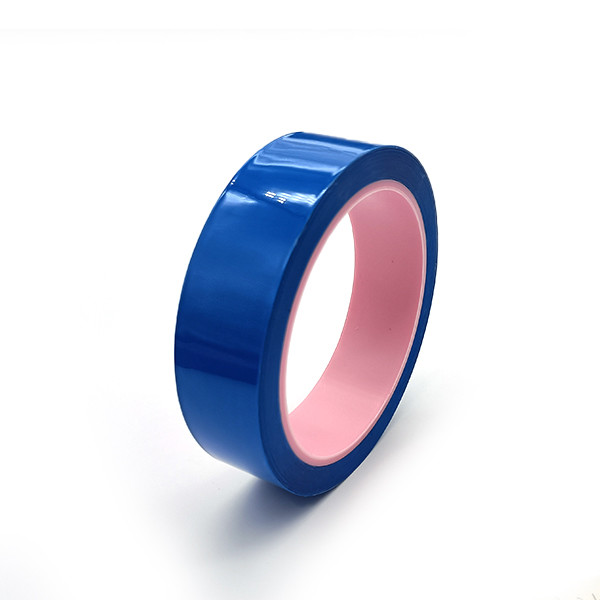

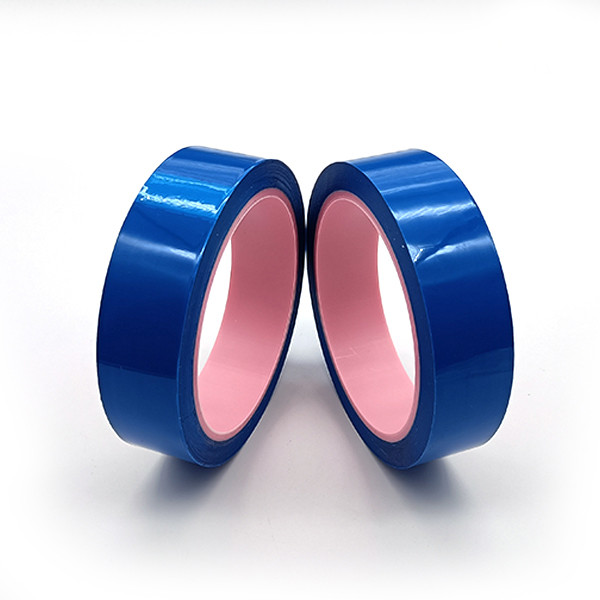

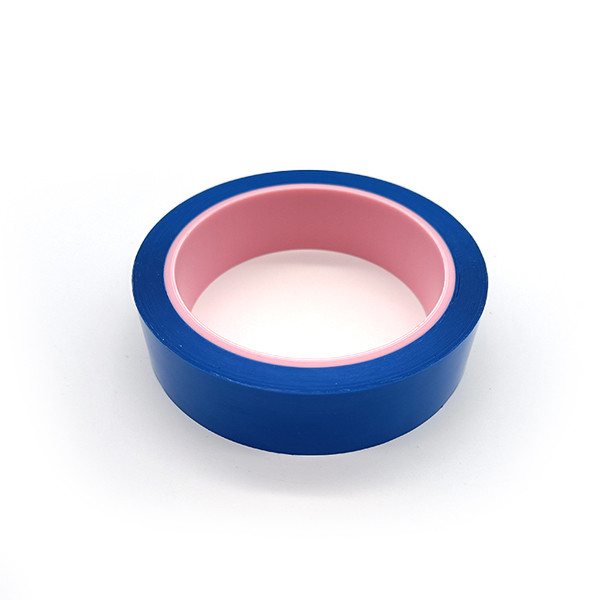

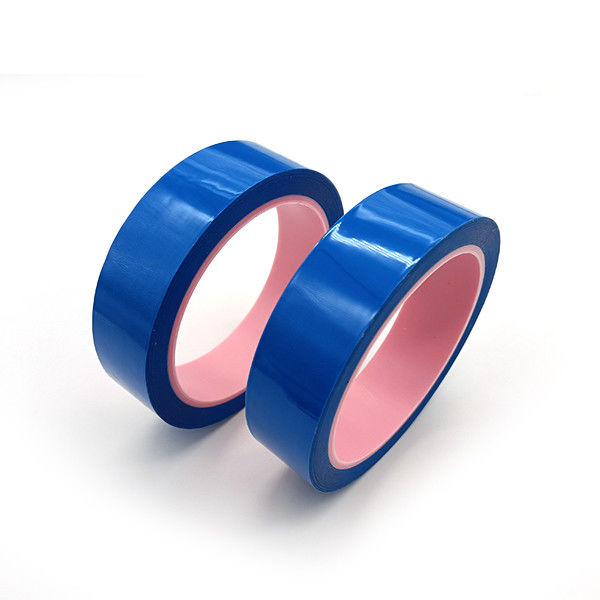

E1-F902K is a blue tape coated with acrylic pressure sensitive adhesive on PET surface. It has good adhesion and low unwinding voltage. It is suitable for environments with high anti-static level requirements.



Features And Benefits:

1. Strong adhesion, no residual glue after removal.

2. Excellent anti-static performance. .

3. Low unwinding voltage.

4. Excellent tensile properties.



Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 2.12±0.2mil 0.055±0.005mm
Adhesion to Steel ≥2.74lbs/in ≥15N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 109~10ohms
Static Discharge (Removal from roll) <100V <100V































Construction:

Blue Packing ESD Adhesive Tape 2.12mil Anti Static Tapes PET Surface 3



Application:

The product can be applied to various environments with anti-static.Requirements such as fixing, connecting and packaging of electronic Manufacturing .It can also be used as temporary bonding.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
