Home > PRODUCTS > UV Release Tape > High Temperature UV Release Tape High Initial Adhesion RoHS Approved

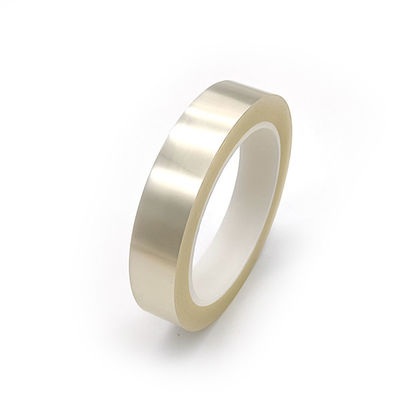

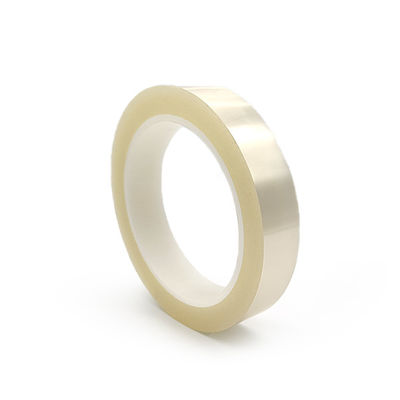

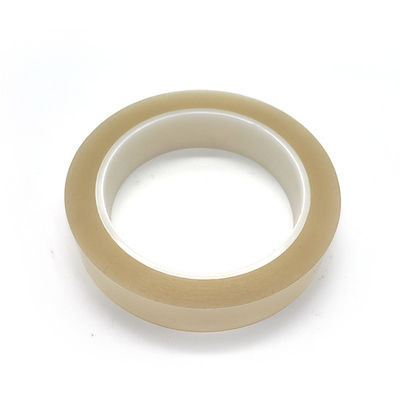

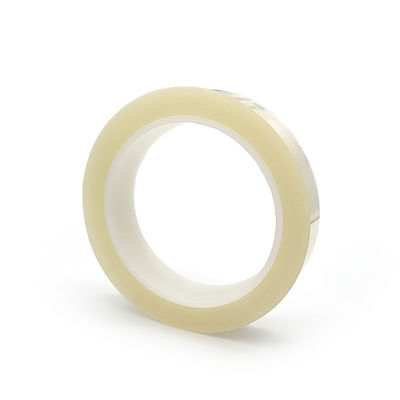

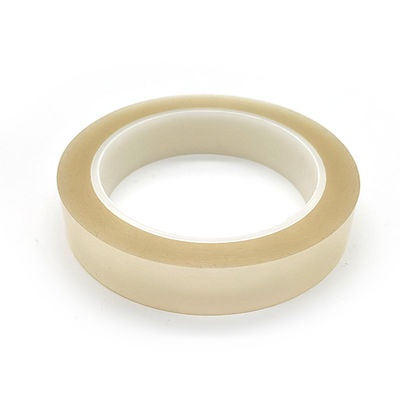

High Temperature UV Release Tape High Initial Adhesion RoHS Approved

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: E1-UV381S

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: For samples 1-3 days and for mass order depends on your QTY.

Payment Terms: L/C, T/T

Supply Ability: 50000 rolls per month

Get Best Price
Product Details
High Light:

RoHS UV Release Tape

,

RoHS ESD UV Release Tape

,

RoHS uv dicing tape

Product Name:
E1-UV381S
Peeling Strength Before UV:
>6N/25mm
Peeling Strength After UV:
0.3N/25mm
Tensile Strength At Break:
8KN/M
Backing Thickness:
0.100 ±0.002mm
Total Tape Thickness:
0.120±0.005mm
Product Name:
E1-UV381S
Peeling Strength Before UV:
>6N/25mm
Peeling Strength After UV:
0.3N/25mm
Tensile Strength At Break:
8KN/M
Backing Thickness:
0.100 ±0.002mm
Total Tape Thickness:
0.120±0.005mm
Product Description

khjkhj emailkhj workshop

High Temperature UV Release Tape High Initial Adhesion RoHS Approved



Anti-static high temperature UV-Releasing adhesive polyester tape E1-UV381S with high initial adhesion



E1-UV381S is a high performance product coating UV adhesive on the surface of polyester. It has high initial peeling strength. Low adhesion after UV irradiation and no residue after peeling off.



Features and Benefits:

1. High initial adhesion.

2. Low adhesion after UV curing, easy to separate.



uv dicing tape Properties:

Item

Typical Value

Test Method

  Metric
Backing 0.100mm /
Total Thickness 0.120±0.005mm /
Peeling strength 6N/25mm GBT 2792-2014
  0.03N/25mm
Tensile Strength ≥8(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014
Surface Resistance 10 6~9 ohms /



Construction:

High Temperature UV Release Tape High Initial Adhesion RoHS Approved 3



Application:

1. Wafer, component, glass cutting and grinding process cutting.

2. 3D glass bonding process, component packaging transfer.

3. Soft lithium battery protection, metal and anti-static protection.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
