Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-IH803
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day
Product Name: |
E1-IH803 |
Adhesion To Steel: |
4～6N/25mm |
Tensile Strength At Break: |
≥3.5 (KN/M) |
Surface Resistance: |
105~9ohms |
Static Discharge: |
<100V |
Maximum Operating Temperature: |
280℃ |
Product Name: |
E1-IH803 |
Adhesion To Steel: |
4～6N/25mm |
Tensile Strength At Break: |
≥3.5 (KN/M) |
Surface Resistance: |
105~9ohms |
Static Discharge: |
<100V |
Maximum Operating Temperature: |
280℃ |

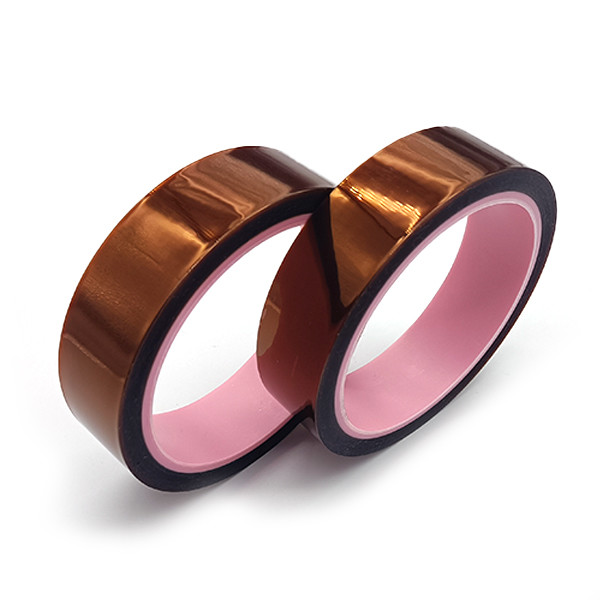

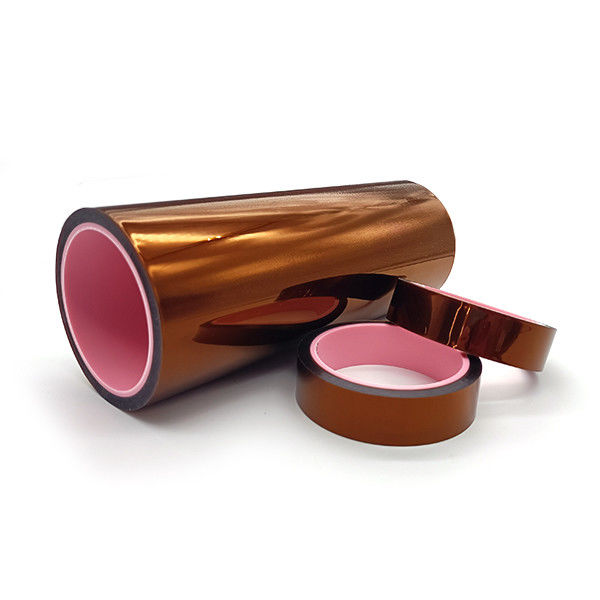

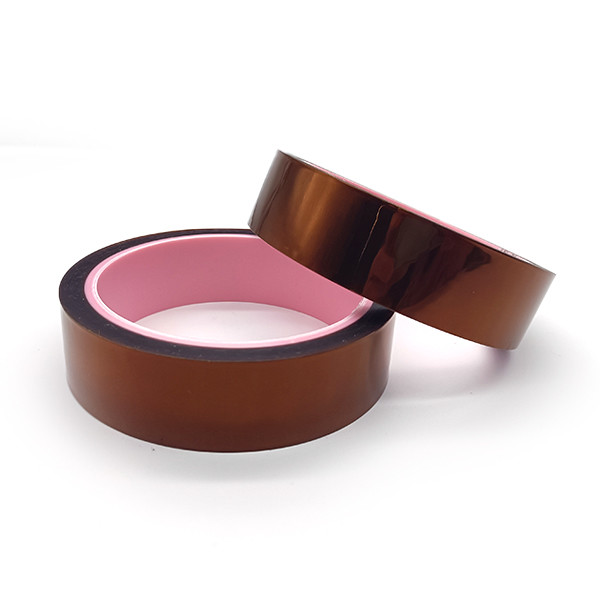

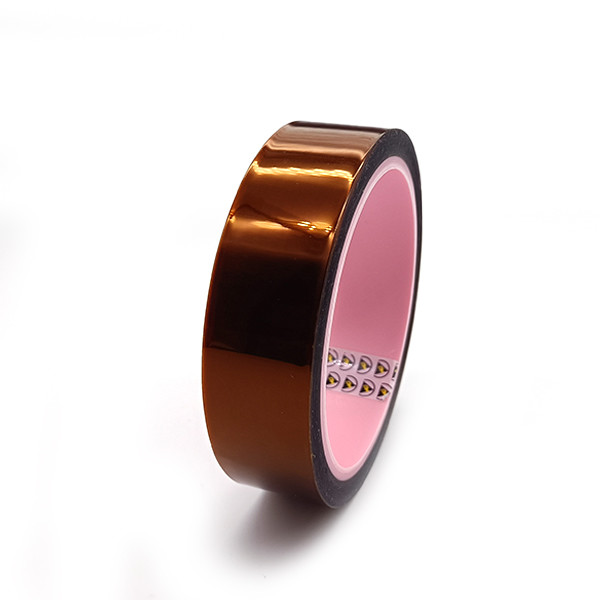

2.2mil Anti Static Polyimide Film Adhesive Tape High Temperature Resistant
Anti-static polyimide high temperature resistant masking tape E1-IH803 with excellent tensile strength and elongation
E1-IH803 is a polyimide film backed silicone adhesive tape with excellent heat resistance and low static discharge properties.
Features And Benefits:
1.Low electrostatic discharge at unwind and removal.
2.Resistant high temperature up to 280℃ for 10 minutes
3.Excellent tensile strength & Elongation
4.RoHS Compliant
Polyimide Film Adhesive Tape E1-IH803 Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.2mil | 0.055±0.005mm |
| Tack | / | ≥26(J.DOW/#) |
| Adhesion to Steel | 0.91～1.37lbs/in | 4～6N/25mm |
| Tensile Strength | ≥20lbs/in | ≥3.5(KN/M) |
| Elongation | ≥45% | ≥45% |
| Surface Resistance | 106~8ohms | 106~8ohms |
| Static Discharge (Removal from roll) | <100V | <100V |
| Maximum Operating Temperature | 536℉ | 280℃ |
Storage:
1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2.Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1.Surface should be clean, dry, free of dust, oil or other contaminants.
2.Proper pressure required by roller, hand or press when applying.
3.Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
