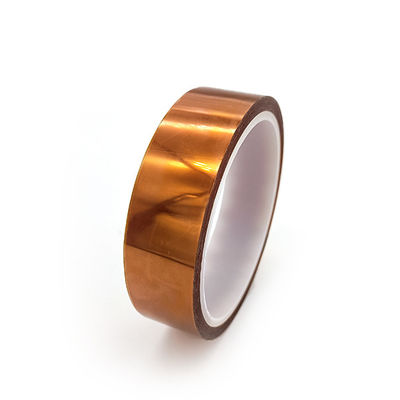

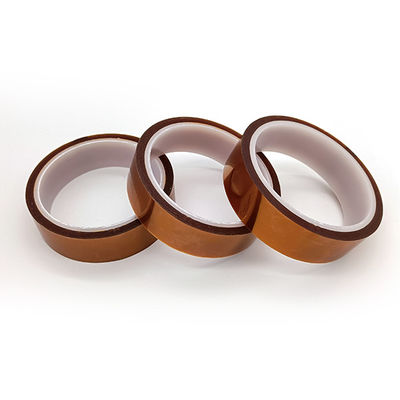

3mil Thickness High Temp Double Sided Tape Polyimide Film Backed

3mil Thickness High Temp Double Sided Tape Polyimide Film Backed
3mil Thickness High Temp Double Sided Tape Polyimide Film Backed 3mil Thickness High Temp Double Sided Tape Polyimide Film Backed 3mil Thickness High Temp Double Sided Tape Polyimide Film Backed 3mil Thickness High Temp Double Sided Tape Polyimide Film Backed

Large Image :  3mil Thickness High Temp Double Sided Tape Polyimide Film Backed

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: DIH772A-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

3mil Thickness High Temp Double Sided Tape Polyimide Film Backed

Description
Product Name: DIH772A-B Maximum Operating Temperature: 280℃
Elongation: >45% Tensile Strength: ≥3.5KN/M
Breakdown Voltage: >8KV Backing: 0.025mm
High Light:

3mil High Temp Double Sided Tape

,

Polyimide High Temp Double Sided Tape

,

3mil high heat double sided tape

3mil Thickness High Temp Double Sided Tape Polyimide Film Backed

Heat resistant double sided tape DIH772A-B with high temperature resistance

DIH772A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance.


High Heat Double Sided Tape Features And Benefits:

1. Excellent tensile strength & Elongation.

2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃.

3. Both-Face with similar adhesion ,No any residue after removal.



High Temp Double Sided Tape Properties:

Item   Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 3.0±0.2mil 0.075±0.005mm
Adhesion to Steel 0.25lbs/in A adhesive:2.7N/25mm
0.20lbs/in B adhesive: 2.1N/25mm
Tensile Strength ≥20lbs/in ≥3.5(KN/M)
Elongation ≥45% ≥45%
Breakdown voltage >8KV >8KV
Maximum Operating Temperature 536℉ 280℃



Construction:

3mil Thickness High Temp Double Sided Tape Polyimide Film Backed 0



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
