Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-DIH776A-B
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E2-DIH776A-B |
Maximum Operating Temperature: |
260℃ |
Static Discharge (Removal From Roll): |
<200V |
Tensile Strength At Break: |
≥8KN/M |
Adhesion To Steel A Adhesive: |
<1N/25mm |
Product Name: |
E2-DIH776A-B |
Maximum Operating Temperature: |
260℃ |
Static Discharge (Removal From Roll): |
<200V |
Tensile Strength At Break: |
≥8KN/M |
Adhesion To Steel A Adhesive: |
<1N/25mm |

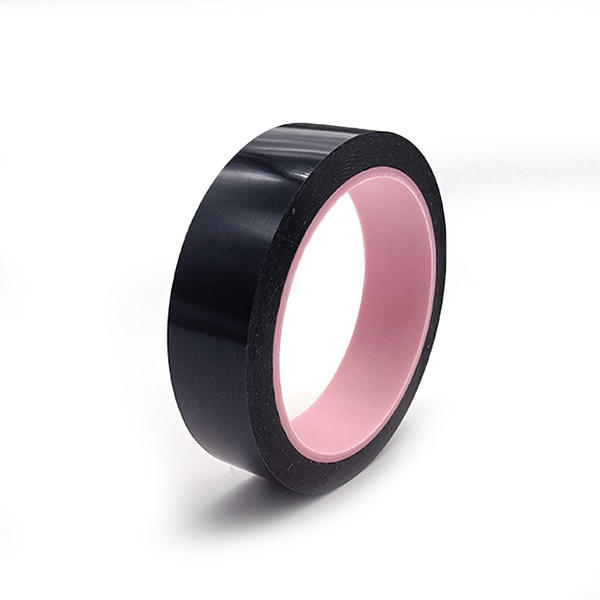

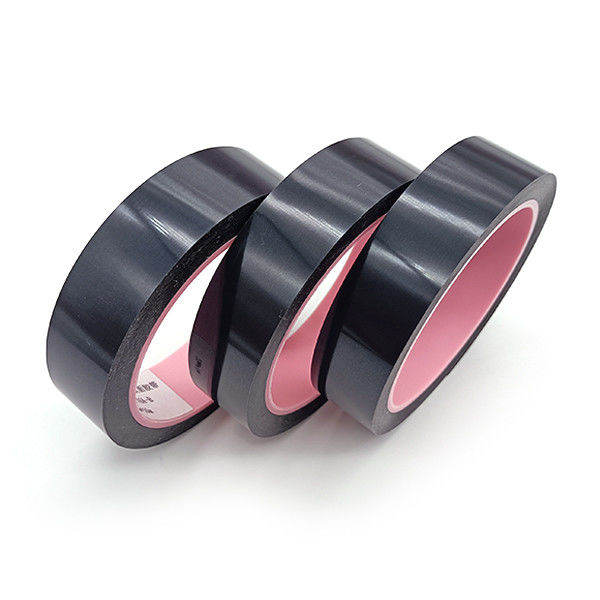

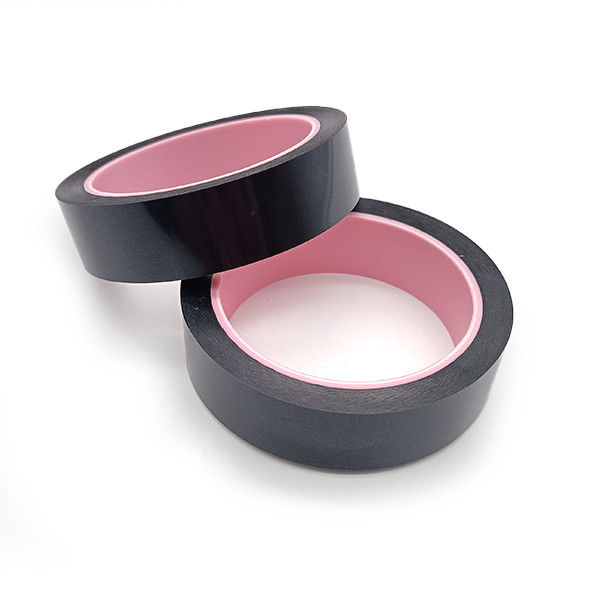

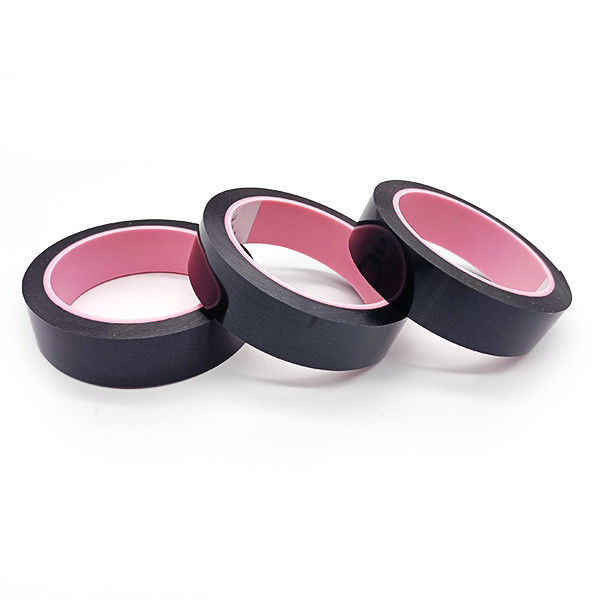

Anti-Static Double-Side Coated Silicone Adhesive E2-DIH776A-B Polyimide Tape with Low Electrostatic Discharge at Unwind.
Features And Benefits:
1. Low electrostatic discharge at unwind.
2. Excellent tensile strength & Elongation.
3. Resistant high temperature up to 500℉.
4. Both sides with different adhesion, no any residue after removal.
Properties:
Item | Typical Value | ||
Imperial | Metric | ||
Backing | 3.32mil | 0.083±0.00m | |
Total Thickness | 8.2mil | 0.205±0.01mm | |
Adhesion to Steel | A adhesive | >0.62lbs/in | >6.5N/25mm |
B adhesive | <0.096lbs/in | <1N/25mm | |
Surface Resistance | / | <1011ohms | |
Tensile Strength | ≥45.7lbs/in | ≥8(KN/M) | |
Elongation | ≥50% | ≥50% | |
Static Discharge (Removal from roll) | <200V | <200V | |
Maximum Operating Temperature | 500℉ | 260℃ |
Construction:
Application
1. Mask for printed circuit boards during wave solder or solder dip process.
2. Masking contacts during spray painting, powder coating & solder coating.
3. Bundling of transformer, motor, battery & electronic components for insulation purpose.
Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1.Good location and convenient transportation.
2. SGS certification.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
