Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-FA926S
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E1-FA926S |
Static Discharge (Removal From Roll): |
＜100V |
Color: |
Silver Grey |
Tensile Strength At Break: |
≥4KN/M |
Elongation At Break: |
≥90% |
Adhesion To Steel: |
15N/25mm |
Product Name: |
E1-FA926S |
Static Discharge (Removal From Roll): |
＜100V |
Color: |
Silver Grey |
Tensile Strength At Break: |
≥4KN/M |
Elongation At Break: |
≥90% |
Adhesion To Steel: |
15N/25mm |
Silver Grey Bonding Tape 1.8mil Anti Static PET Film Surface
Silver grey bonding tape E1-FA926S with excellent anti-static performance
E1-FA926S is a silver grey tape coated with acrylic pressure sensitive adhesive and aluminum on the surface of PET film. It has good adhesion and anti-static properties.
Features And Benefits:
1. Strong adhesion, no residual glue after removal.
2. Low electrostatic discharge at unwind.
3. Excellent anti-static performance.
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 1.8±0.2mil | 0.045±0.005mm |
| Adhesion to Steel | 3.5lbs/in | 15N/25mm |
| Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
| Elongation | ≥90% | ≥90% |
| Surface Resistance | 106~8ohms | 106~8ohms |
| Static Discharge (Removal from roll) | <100V | <100V |

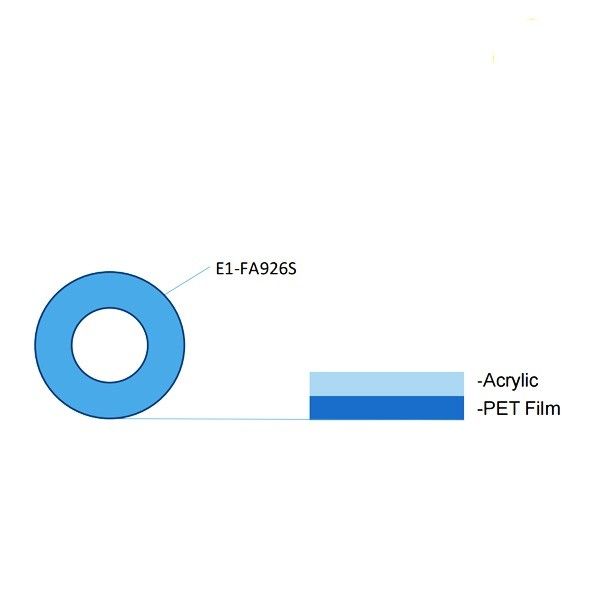

Construction:
Application:
The product can be applied to various environments with anti-static requirements, such as fixing, connecting and packaging of electronic manufacturing. It can also be used as temporary bonding and electronic packaging.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
