KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing

KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing

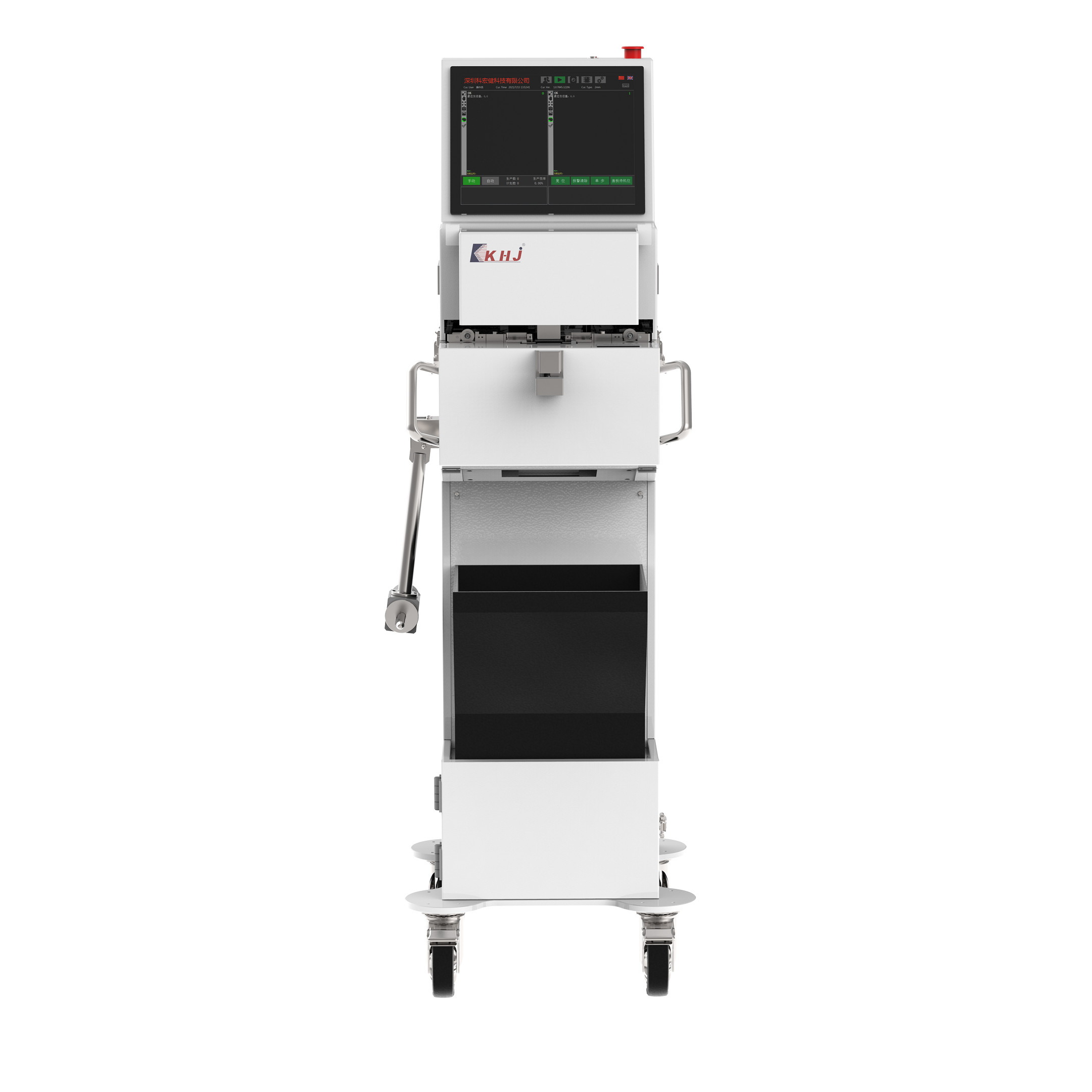

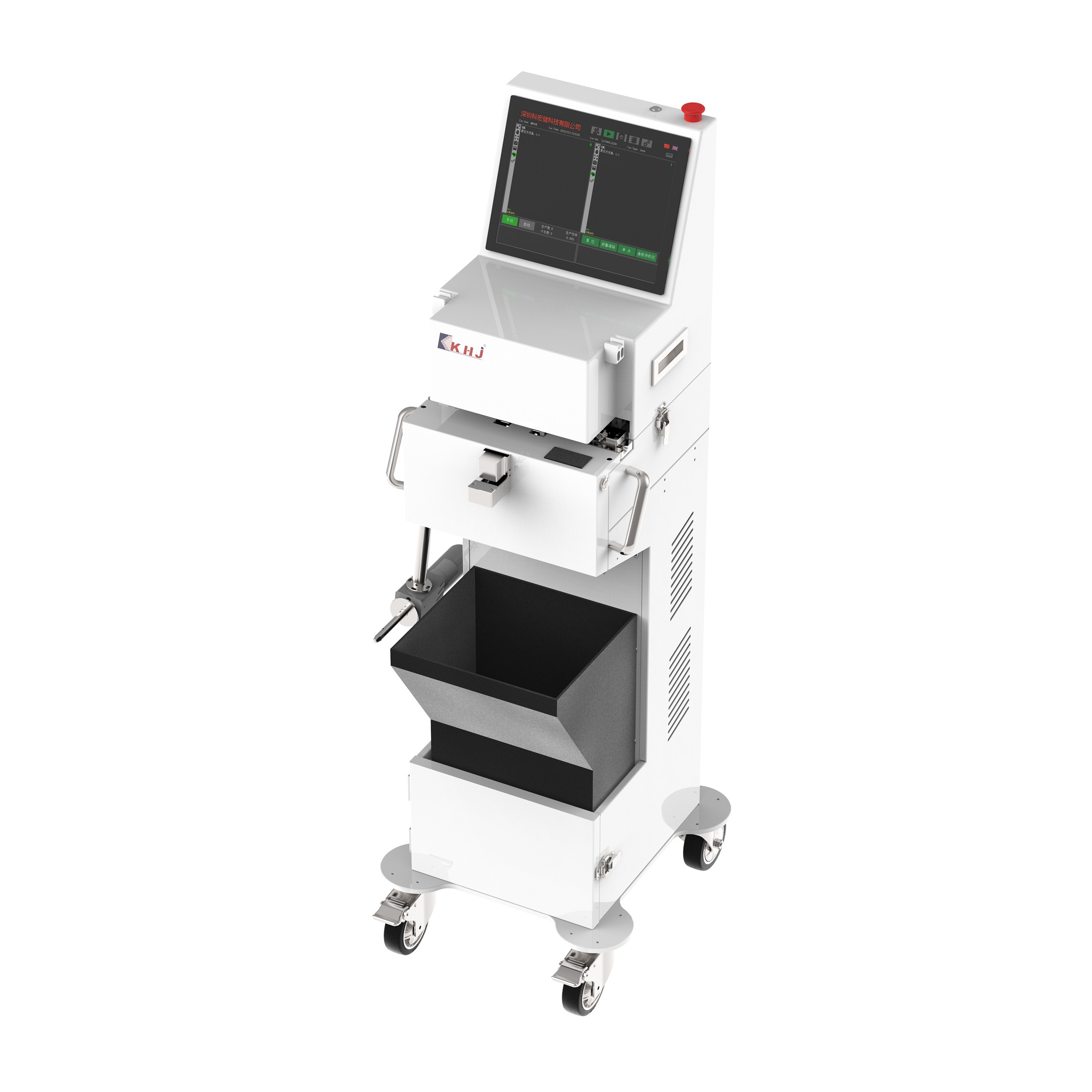

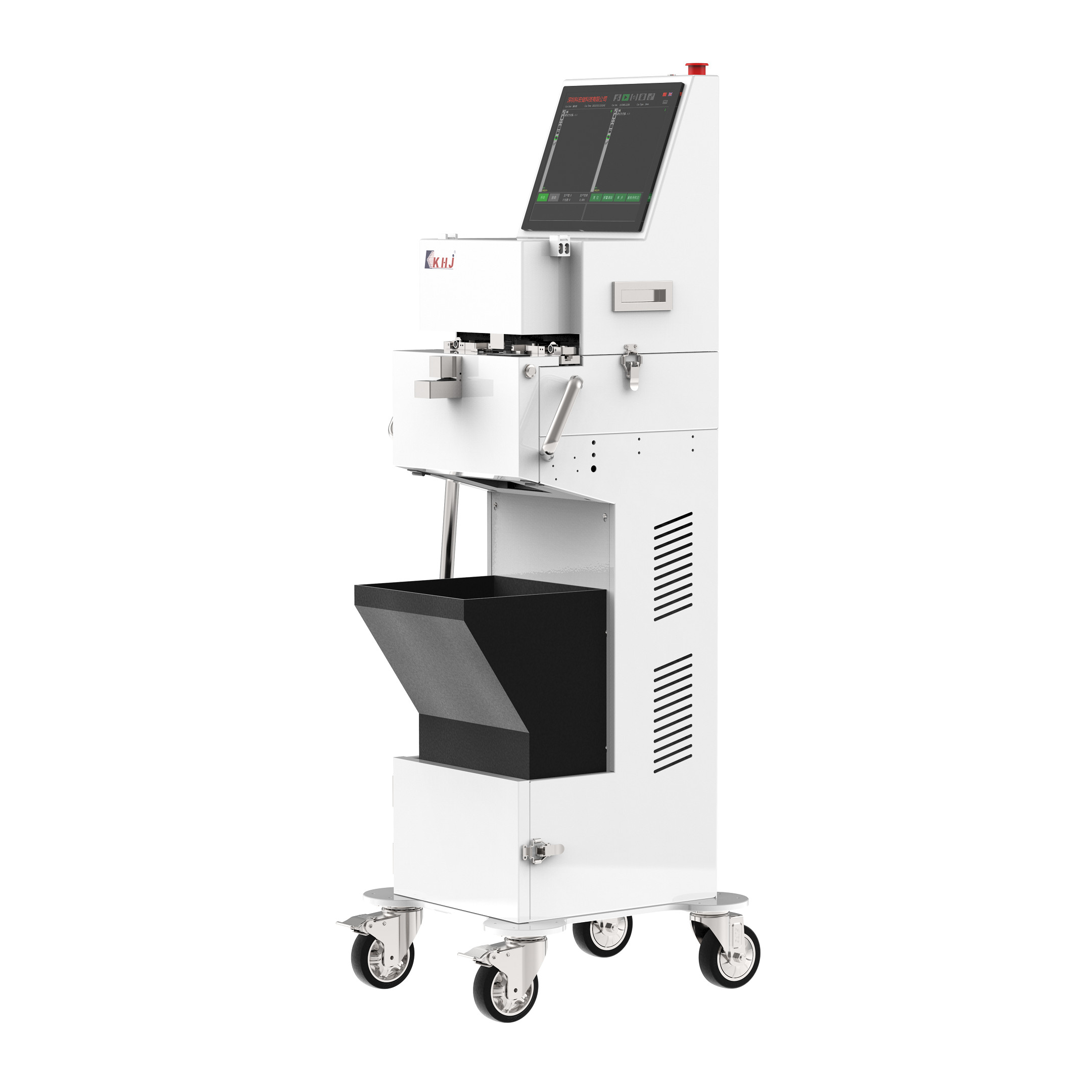

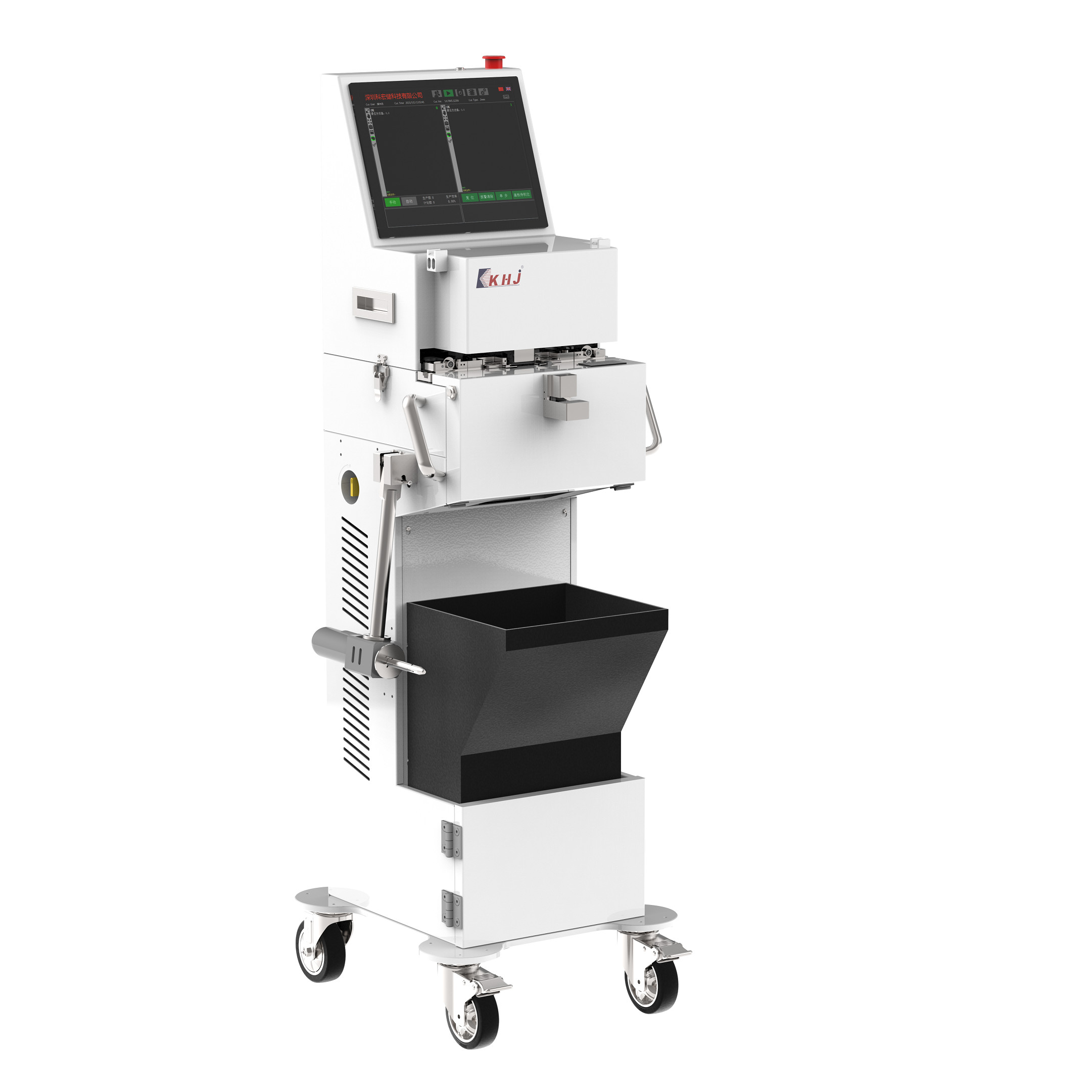

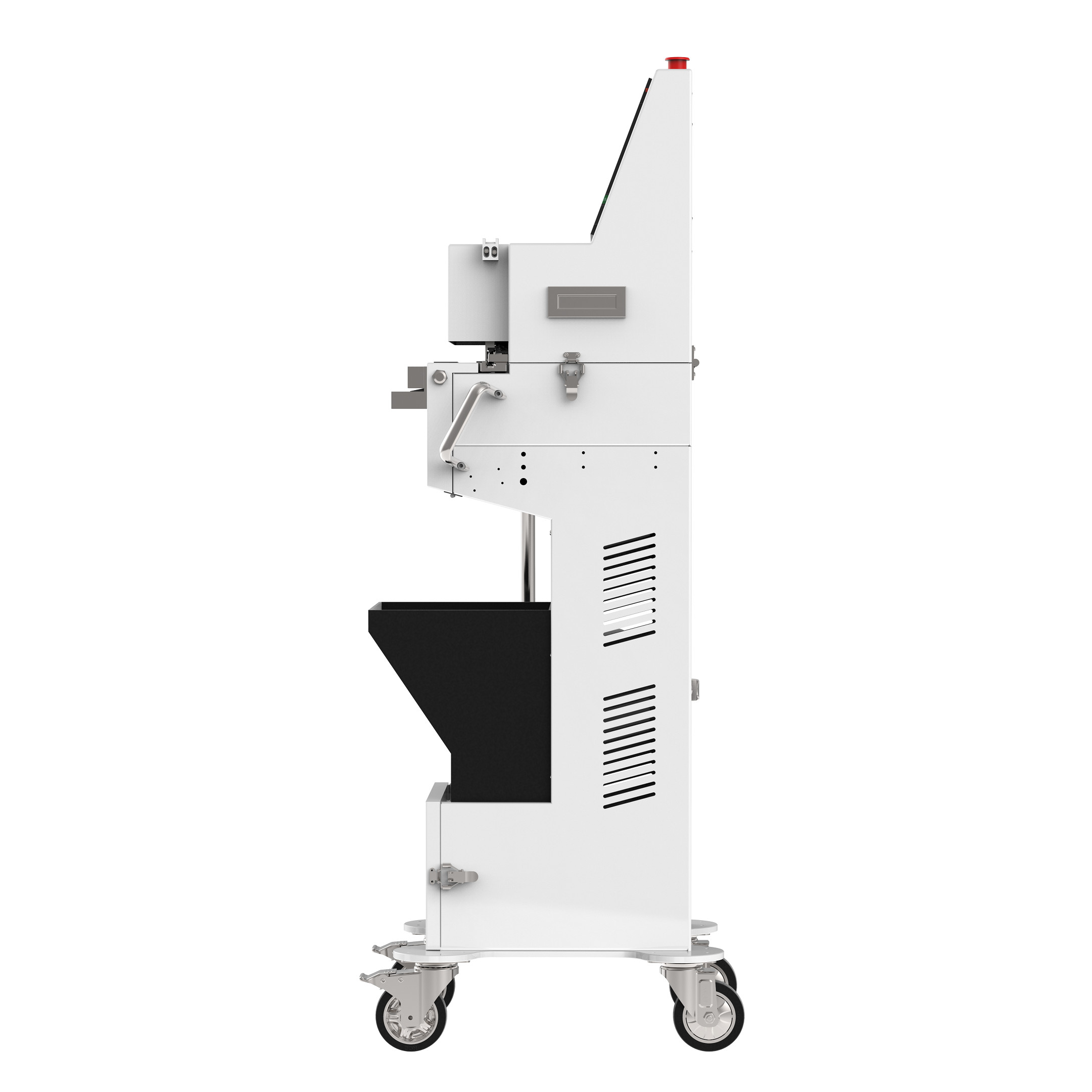

KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing

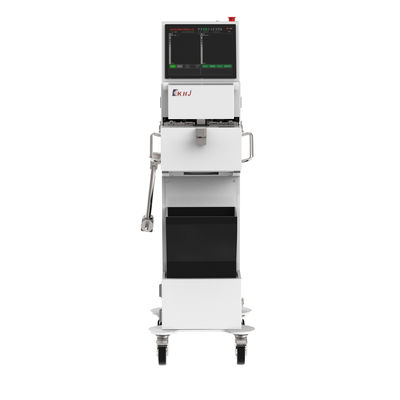

Large Image :  KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: KA100P
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Payment Terms: L/C, T/T

KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing

Description
Product Name: KA100P Apperance Dimension: 469(L) X 416(W) X 1346(H)mm
Apperance Weight: 70kg Conveyor Conveyor Height: 930±10mm
Conveyor Width: 8mm Length Of Splicing Tape: 32mm
Carrier Tape Feeding Accuracy: ±0.10mm Misalignment Accuracy: ±0.15mm
High Light:

SMT Automatic Splicing Machine

,

OEM Automatic Splicing Machine

,

SMT auto splicer machine

KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing



KA100P SMT Intelligent Splicing Machine



KA100P Intelligent splicing machine is the upgraded version with intelligent module from KA100 auto splicing machine, makes the operation more easier and production more effective, stable and reliable.



KA100P CORE ADVANTAGES

1AUTOMATIC SPLICING:Apply to all types carrier tapes of 8mm.

2. HIGH FPY:FPY ≥99.3%.

3. LOW NOISE:Unique design of non-vacuum splicing to avoid heavy noise.

4. HIGH SPEED:Enhance the splicing speed and FPY greatly.

5. INTELLIGENT:Equipped with visual recognition system, automatic detection of empty pocket and pitch.

6. RELIABLE SPLICING:Working with hot-melt splice tape to enhance the splicing strength greatly no loosing or broken during carrier tape moving in feeder.

7. MATERIAL ERRORS RECOGNITION:Intelligent validation system incorporated to prevent material errors,can dock with ERP,MES system to achieve safe production.

8. EASY OPERATION:Easy to use,new operator can lean to use under 3 minutes,reduced the reliance on skilled operators and staff training.



PRODUCT SPECIFICATIONS

KA100P SMT Automatic Splicing Machine Low Noise For SMT Splicing 0



PRODUCT PARAMETER

Apperance Dimension (mm) 469(L) x 416(W) x 1346(H)mm Power Supply System Battery Capacity 22Ah
Weight 70kg Battery voltage 48V
Conveyor Conveyor Height 930±10mm Charging Voltage 110V - 220V
Width 8mm Charge time 8H
Carrier Tape Width & Material 8mm(paper /plastic) Full Charge Working Time 12 - 16H
Pitch 2/4mm Splicing efficiency Splicing Time (c/t) 12-15sec(not including loading time)
Minimum Splicing Length 120mm
Splicing Tape Length of Splicing Tape 32mm Winding Speed 300rpm
Equipment accuracy Carrier Tape Feeding accuracy ±0.10mm FPY Empty Componment Spliced 0 - 2PCS

































Equipment accuracy Misalignment accuracy ±0.15mm Options and Accessories Pre cutting Automatic pre-cutting
Rewinding function Control Mode Automatic reset button Dock with MES System Available as Option
Winding Device One set (left side) Barcode Gun Available as Option
Carrier tape Reel 7inches,13inches,15inches Automatic copper pressing device Available as Option
Control System VCU PLC+PPC Right receiving arm Available as Option
Detection function of empty componment Visual inspection (inspection of empty componment 01005 and above )

































With the development of intelligent automation in SMT factories. It is the inevitable trend to realize the automation production by using auto SMT Splicing machine. Started from 1999, KHJ Technology was devoted to the research and innovation of SMT Splicing machine, and focus on solving the SMT manufacturing difficulties in cooperation with global customers.



With the higher production requirement on SMT splicing production line and more smaller mounting components, which request latest technology to ensure the stable&reliable splicing and anti-electrostatic safety.
